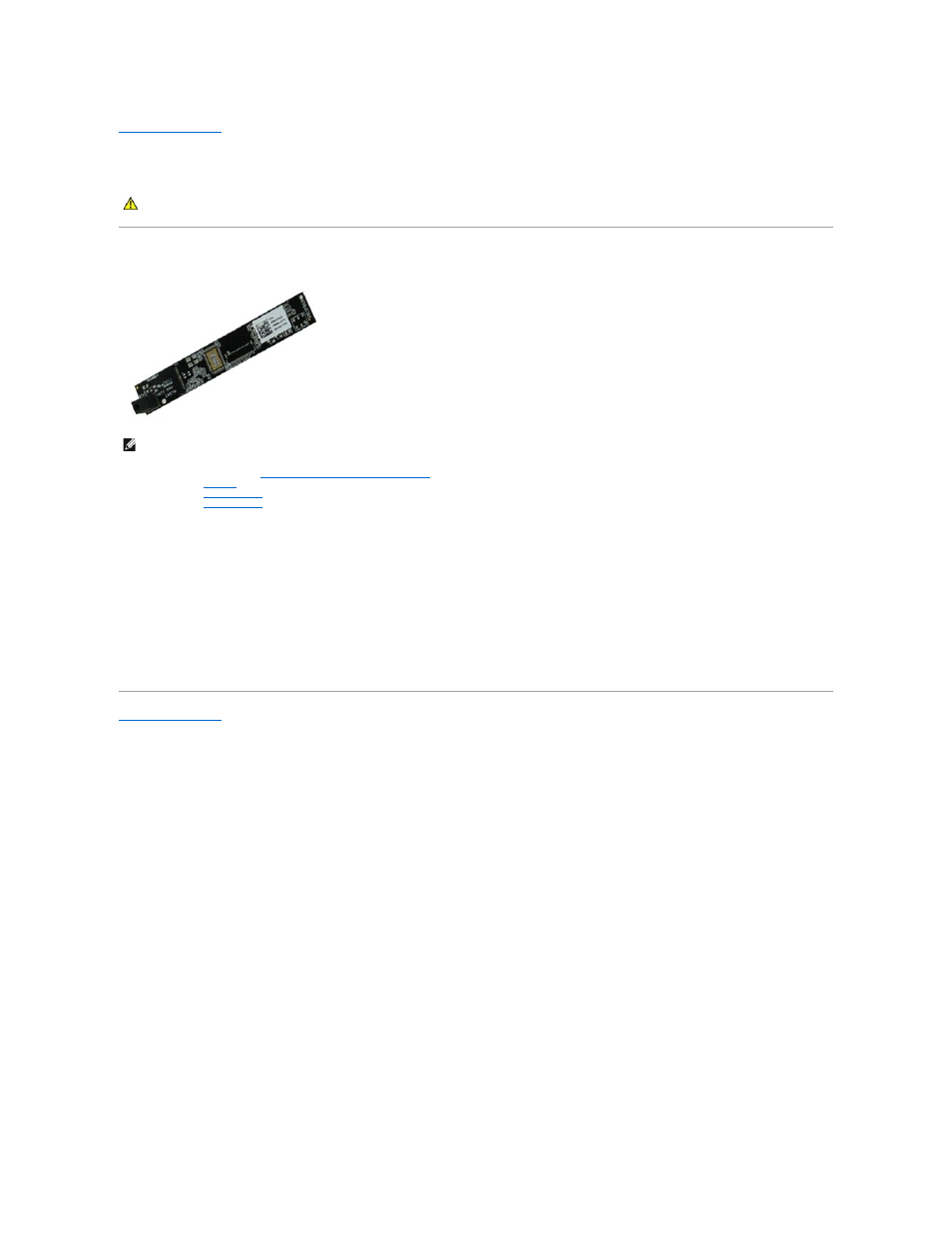

Microphone Board
Dell Latitude E4310 Service Manual
Removing the Microphone Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the battery .
3. Remove the display bezel .
4. Remove the display panel .
5. Using a plastic scribe, gently pry the microphone board from the display cover.
6. Disconnect the microphone cable from its connector on the microphone board.
7. Remove the microphone board from the computer.
Replacing the Microphone Board
To replace the microphone board, perform the above steps in reverse order.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.
