DC Power Module
Service Manual
Removing the DC Power Module
1.
Follow the instructions in
Before Working on Your Computer
.
2.
Remove the hard drive (see
Removing the Hard Drive
).
3.
Remove the WLAN card (see
Removing a WLAN Card
).
4.
Remove the fan (see
Removing the Fan
).
5.
Remove the hinge cover (see
Removing the Hinge Cover
).
6.
Remove the keyboard (see
Removing the Keyboard
).
7.
Remove the display assembly (see
Removing the Display Assembly
).
8.
Remove the palm rest (see
Removing the Palm Rest
).
9.
Disconnect the cable that secures the internal card with Bluetooth® wireless technology to the system board (see
Removing the Card
).
10.
Remove the optical drive (see
Removing the Optical Drive
).
11.
Remove the USB daughter card (see
Removing the USB Daughter Card
).
12.
Remove the system board (see
Removing the System Board Assembly
).
13.
Disconnect the DC-power module connector from the system board.
14.
Lift the DC power module out of the computer.
Replacing the DC Power Module
CAUTION:
Before you begin the following procedure, follow the safety instructions that shipped with your computer.

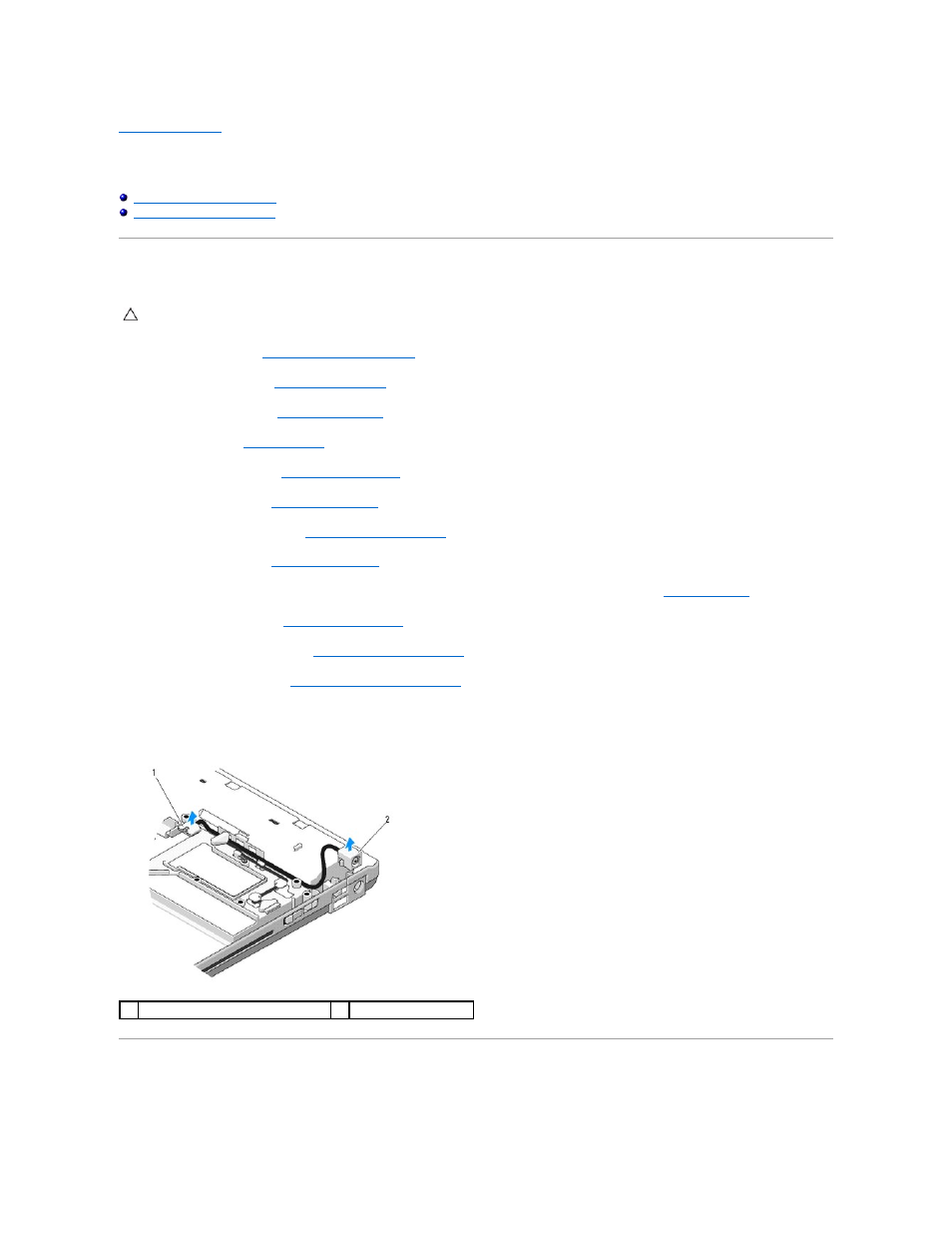

1
DC-power module connector
2
DC power module
