Processor Module
Service Manual
Replacing the Processor Module
Removing the Processor Module
1.
Follow the instructions in
Before Working on Your Computer
.
2.
Remove the M2.5 x 5-mm screw that secures the memory cover.
3.
Remove the cover and set it aside.
4.
Remove the fan (see
Removing the Fan
).
5.
Remove the processor thermal-cooling assembly (see
Removing the Processor Thermal-Cooling Assembly
).
6.

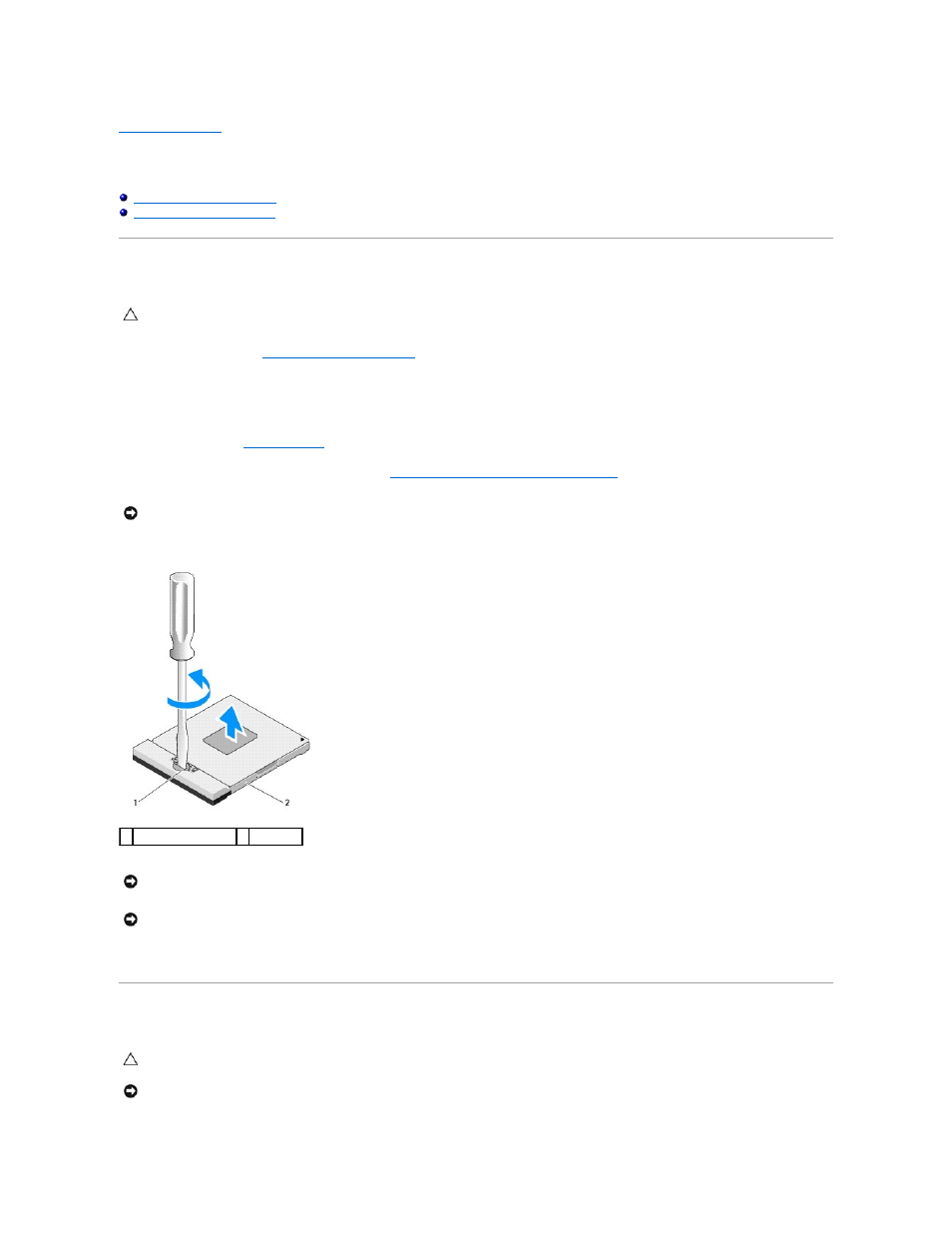

To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.
7.
Lift the processor module from the ZIF socket.
Replacing the Processor Module
CAUTION:
Before you begin the following procedure, follow the safety instructions that shipped with your computer.
NOTICE:
To avoid damage to the processor, hold the screwdriver so that it is perpendicular to the processor when turning the cam screw.
1 ZIF-socket cam screw 2 ZIF socket
NOTICE:
To ensure maximum cooling for the processor, do not touch the heat transfer areas on the processor thermal-cooling assembly. The oils
in your skin can reduce the heat transfer capability of the thermal pads.
NOTICE:
When removing the processor module, pull the module straight up. Be careful not to bend the pins on the processor module.
CAUTION:
Before you begin the following procedure, follow the safety instructions that shipped with your computer.
NOTICE:
Do not touch the processor die. Press and hold the processor down on the substrate on which the die is mounted while turning the cam
screw to prevent intermittent contact between the cam screw and processor.
