Dell Inspiron 5000 - Manual (Page 49)

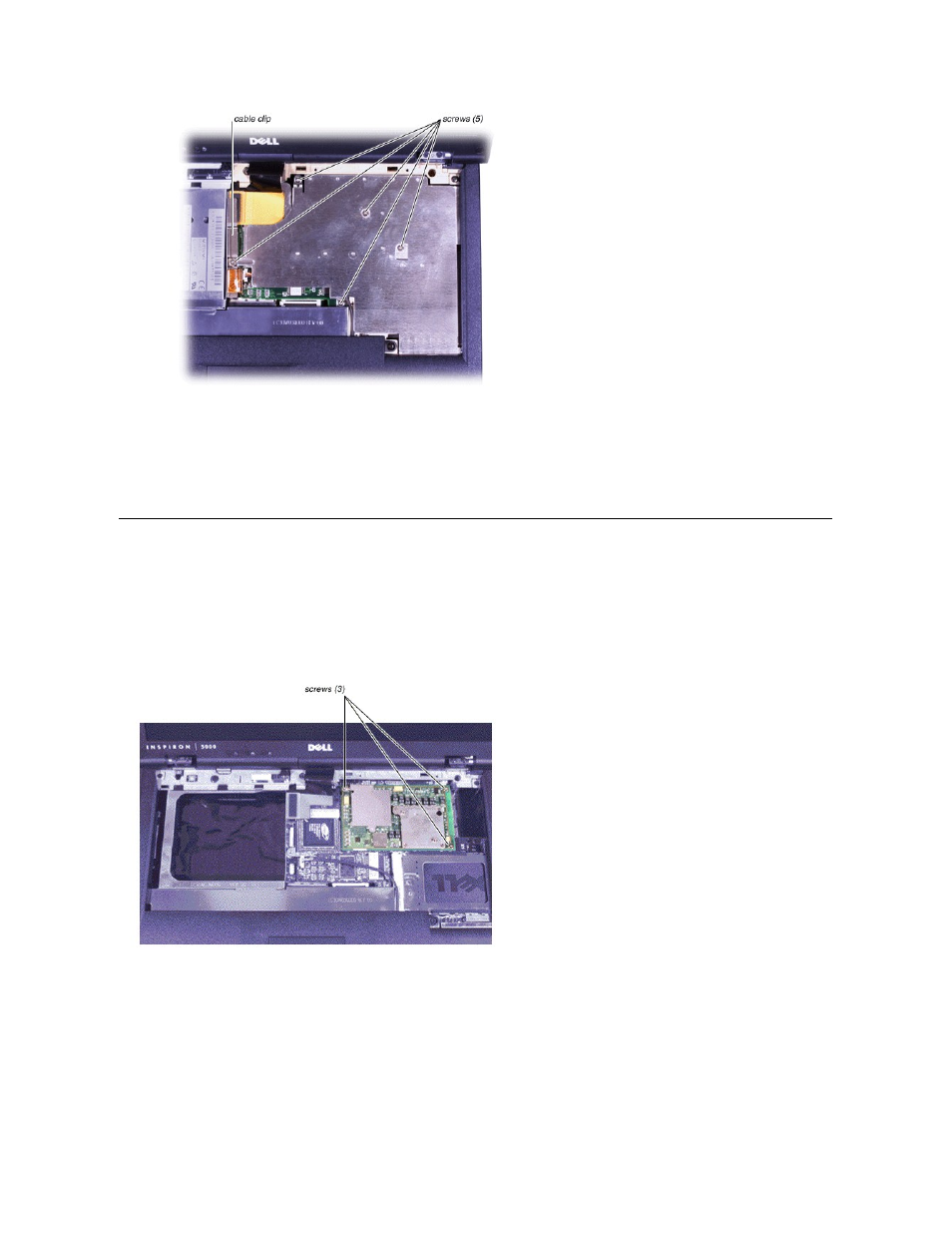

2. Remove the diskette-drive cable clip (held in place by the leftmost thermal shield screw).
3. Lift off the thermal shield.
Processor Module Removal
1. Remove the processor module screws. Inspiron 5000 computers have 3 screws (first photo), and Inspiron 5000e computers have 2 screws (second photo).
NOTICE: Be sure to replace the diskette-drive cable clip (held in place by the leftmost thermal shield screw) when you
replace the thermal shield. Failure to do so may cause the connector to become disengaged as a result of shock or
vibration to the computer.
NOTICE: Only a certified service technician should perform repairs on your computer. Damage or inoperability due to
servicing not authorized by Dell is not covered by your warranty.
