Removing the Bluetooth Module
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. SD memory card
b. battery
c. access panel
d. keyboard trim
e. keyboard
f. optical drive
g. right base panel
h. palmrest

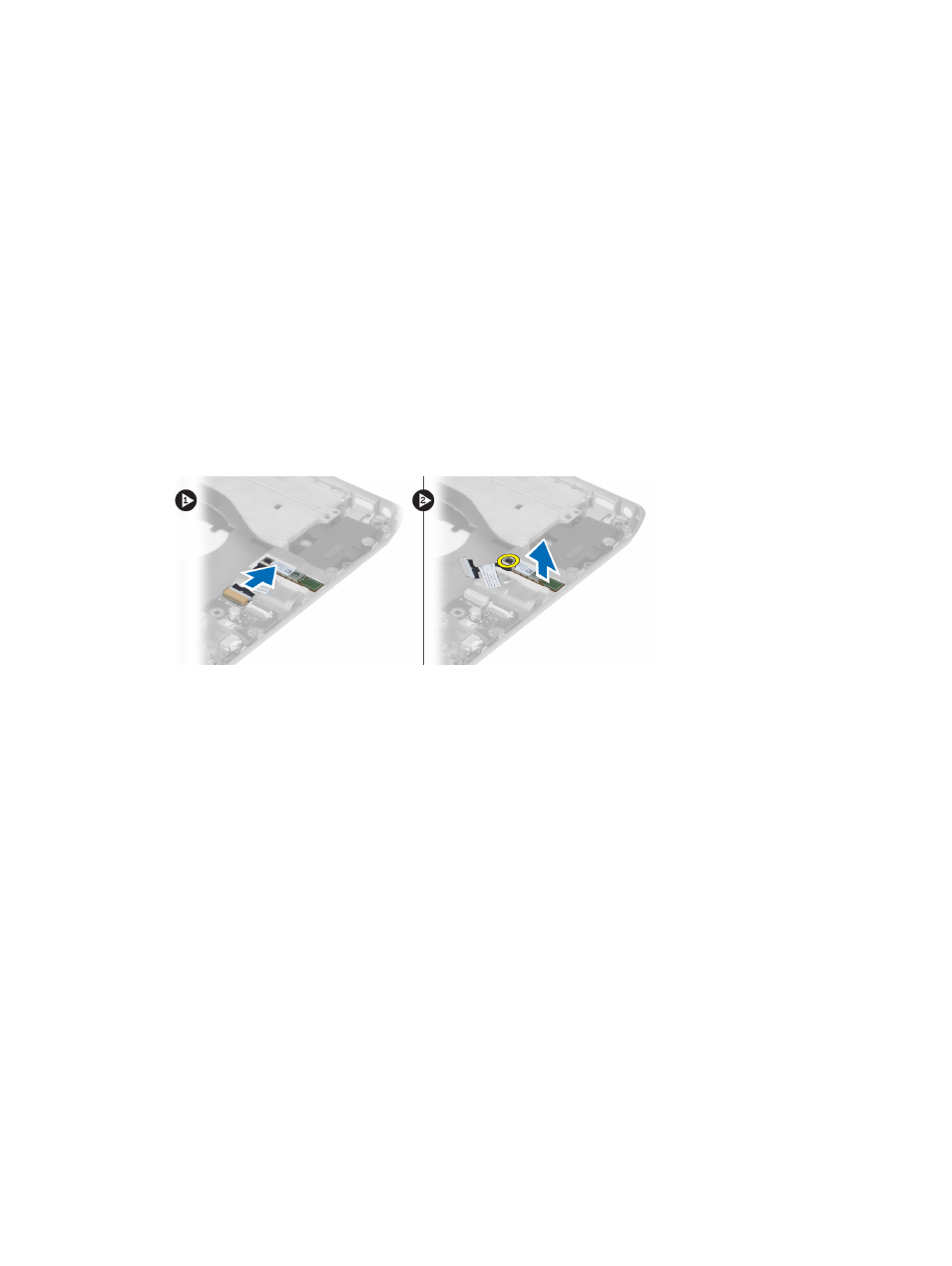

3. Disconnect the bluetooth cable from the system board.
4. Remove the screw that secures the bluetooth module in place.
5. Remove the bluetooth module from the computer.
6. Disconnect the bluetooth cable from the bluetooth module.
Installing the Bluetooth Module
1. Connect the bluetooth cable to the bluetooth module.
2. Place the bluetooth module in its compartment in the computer.
3. Install the screw that secures the bluetooth module to the computer.
4. Connect the bluetooth cable to the system board.
5. Install:
a. palmrest
b. right base panel
c. optical drive
d. keyboard
e. keyboard trim
f. access panel
g. battery
h. SD memory card
6. Follow the procedures in After Working Inside Your Computer.
