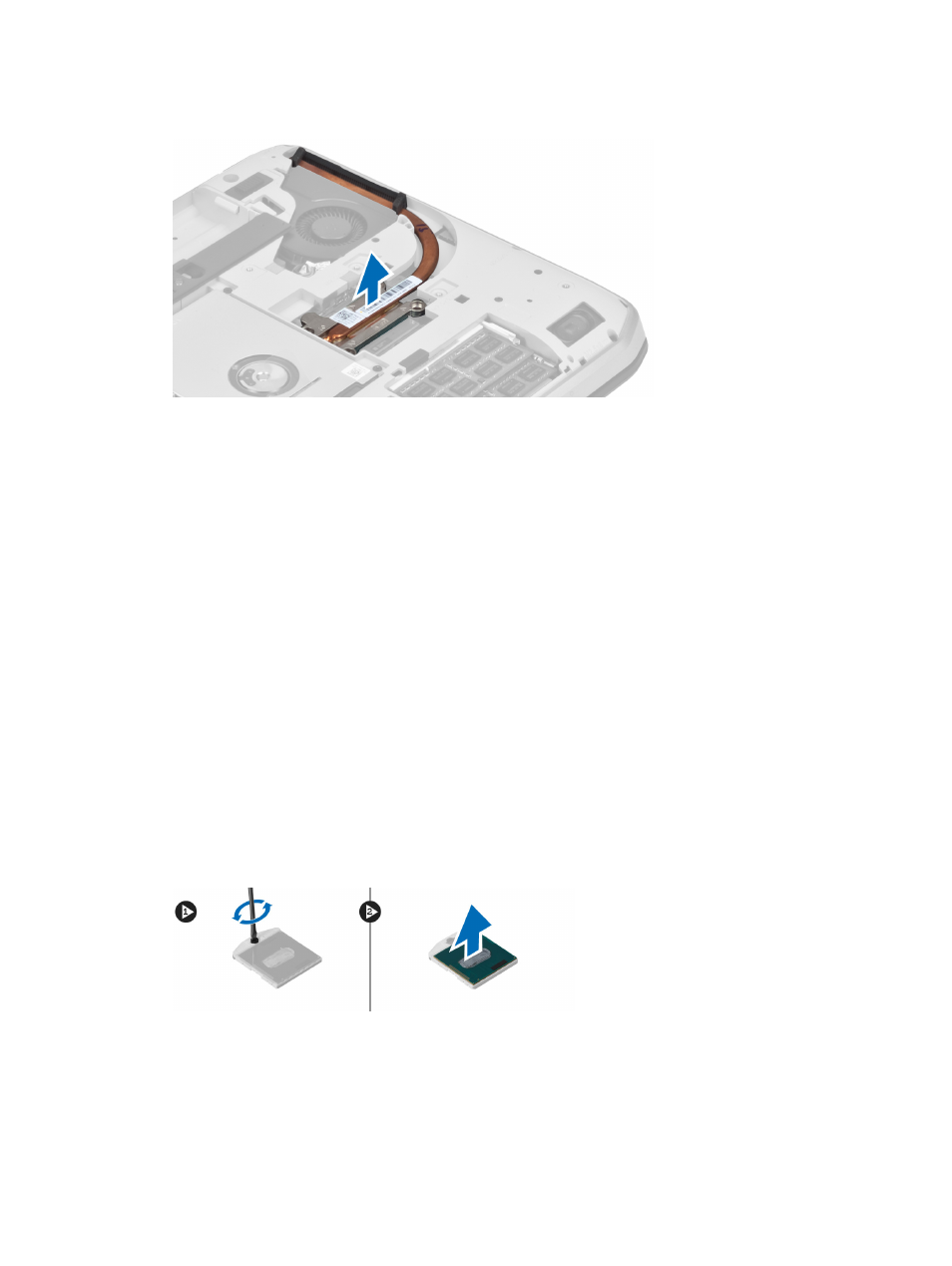

4. Lift up the thermal module and remove it from the computer.
Installing the Thermal Module
1. Place the thermal module in its compartment.
2. Tighten the screws that secures the thermal module to the computer.
3. Install:
a. right base panel
b. access panel
c. battery
d. SD memory card
4. Follow the procedures in After Working Inside Your Computer.
Removing the Processor
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. SD memory card
b. battery
c. access panel
d. right base panel
e. thermal module
3. Rotate the processor cam lock in a counter clockwise direction to the unlock position. Lift up the
processor and remove it from the computer.
