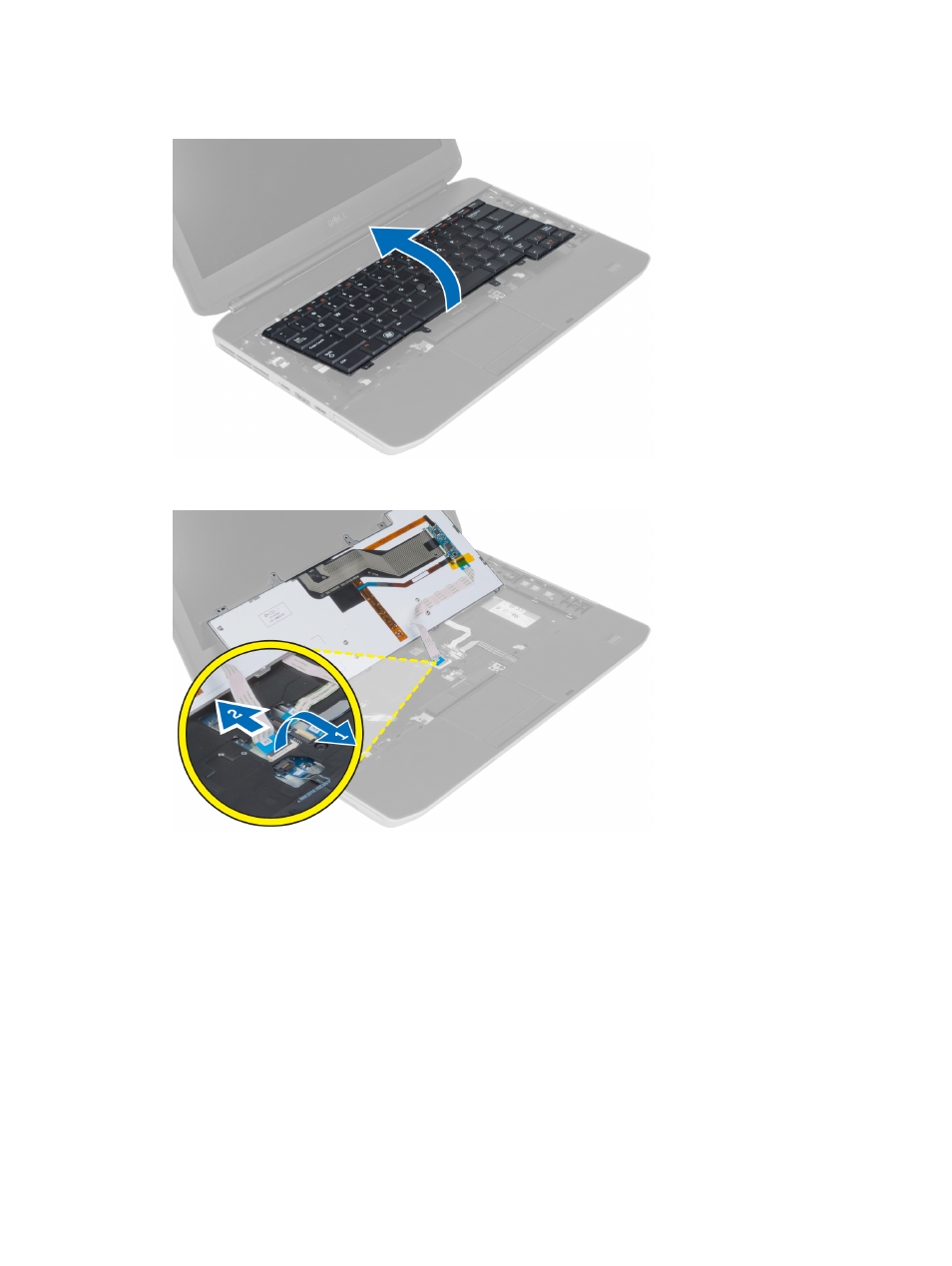

6. Flip the keyboard over.
7. Peel off the adhesive tape securing the keyboard flat flex cable to the back of the keyboard and
remove it from the computer.
8. Remove the keyboard from the computer .
Installing the Keyboard
1. Attach the keyboard flat flex cable to the keyboard.
2. Affix the adhesive tape securing the keyboard flat flex cable to the keyboard.
3. Slide the keyboard into its compartment until all the metal tabs fit into their positions.
4. Fasten the keyboard cable clip.
5. Press down on the keyboard to the left and right side ensuring that all the snaps are fully engaged
with the computer.
6. Install the screws that secure the keyboard to the palmrest.
