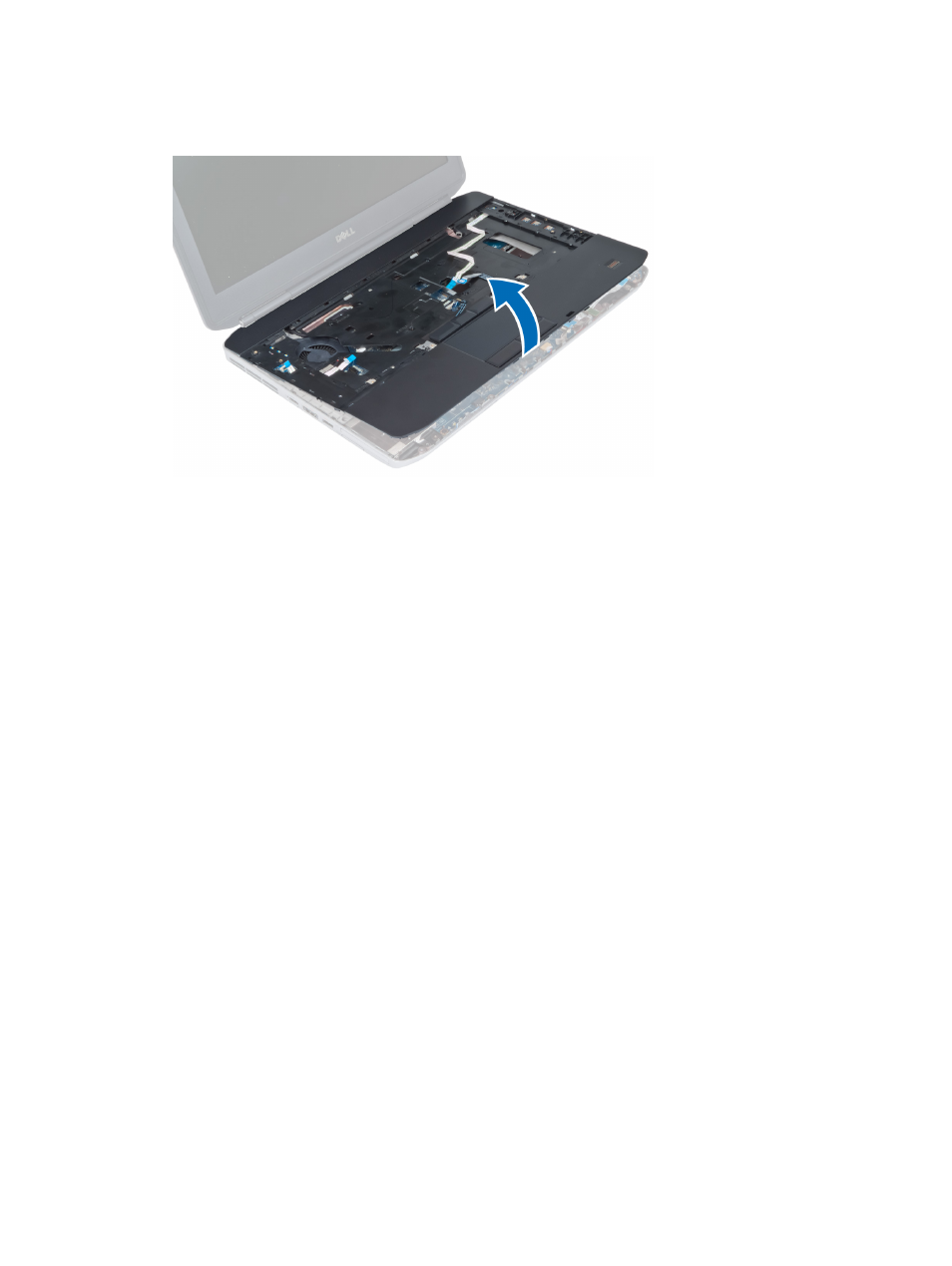

11. Release the tabs on the left edge of the palm rest assembly and remove the palmrest from the
computer.
Installing the Palmrest
1. Align the palm rest assembly to its original position in the computer and snap it into place.
2. Connect the following cables to the system board:
a. power button flat flex cable.
b. fingerprint scanner flat flex cable
c. touch pad flat flex cable
d. media button flat flex cable
e. LED board flat flex cable
3. Tighten the screws on the palmrest.
4. Tighten the screws at the bottom of the computer.
5. Install:
a. right base panel
b. optical drive
c. keyboard
d. keyboard trim
e. access panel
f. battery
g. SD memory card
6. Follow the procedures in After Working Inside Your Computer.
