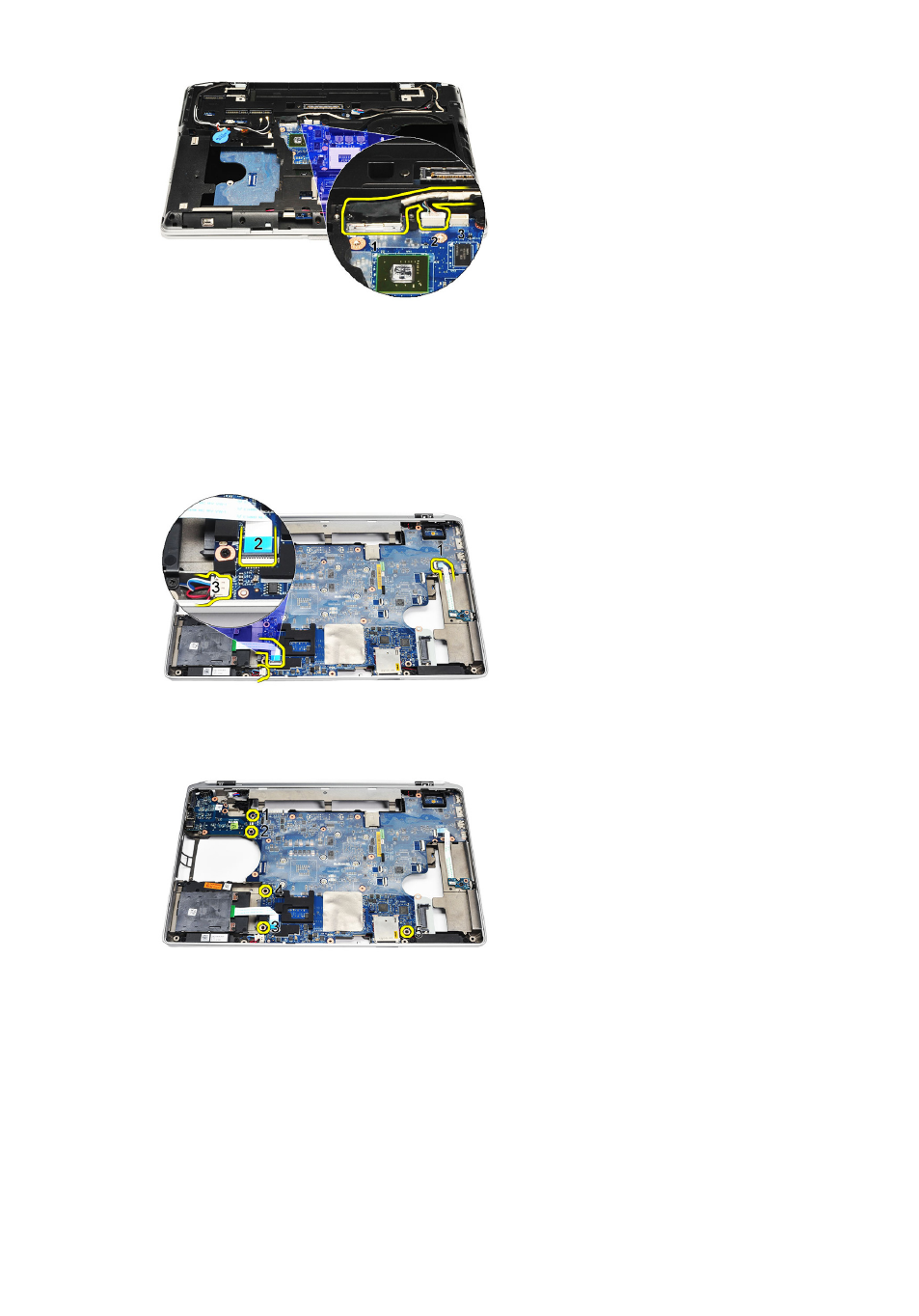

24. Flip the computer and disconnect the following cables from the system

board:

• wireless switch board
• smart card reader
• speaker

25. Remove the screws from the system board.

26. Detach the top left edge of the system board from the I/O board connector.
