Dell Latitude E6520 (Early 2011) - Manual (Page 67)

Wireless Switch Board
25

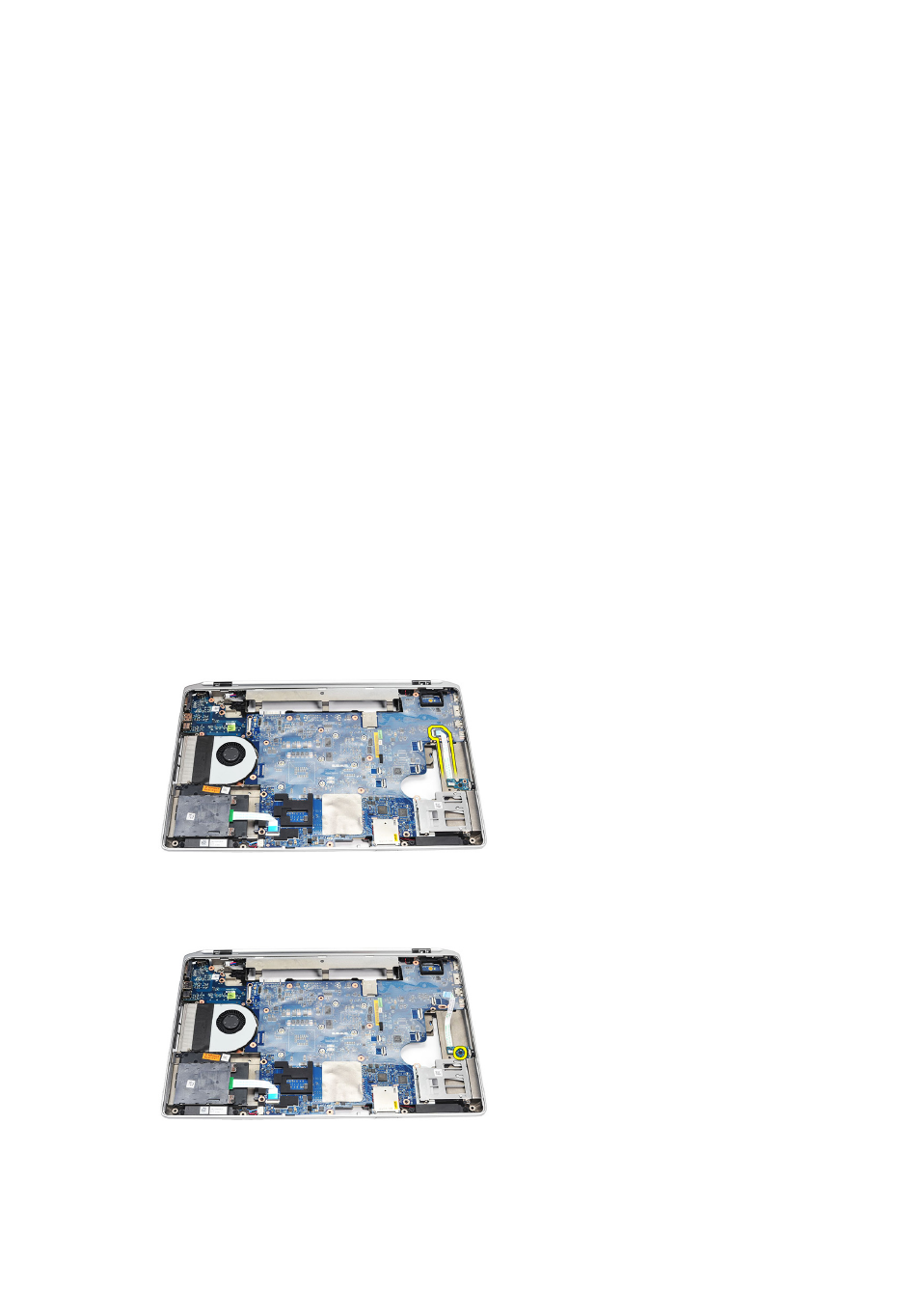

Removing The Wireless Switch Board
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the base cover .
4. Remove the display assembly .
5. Remove the optical drive .
6. Remove the hard drive .
7. Remove the Bluetooth .
8. Remove the keyboard trim .
9. Remove the keyboard .
10. Remove the palm rest assembly .
11. Remove the wireless switch cable from the system board.
12. Remove the screw from the system board.
13. Remove the wireless switch board from the computer.
67
