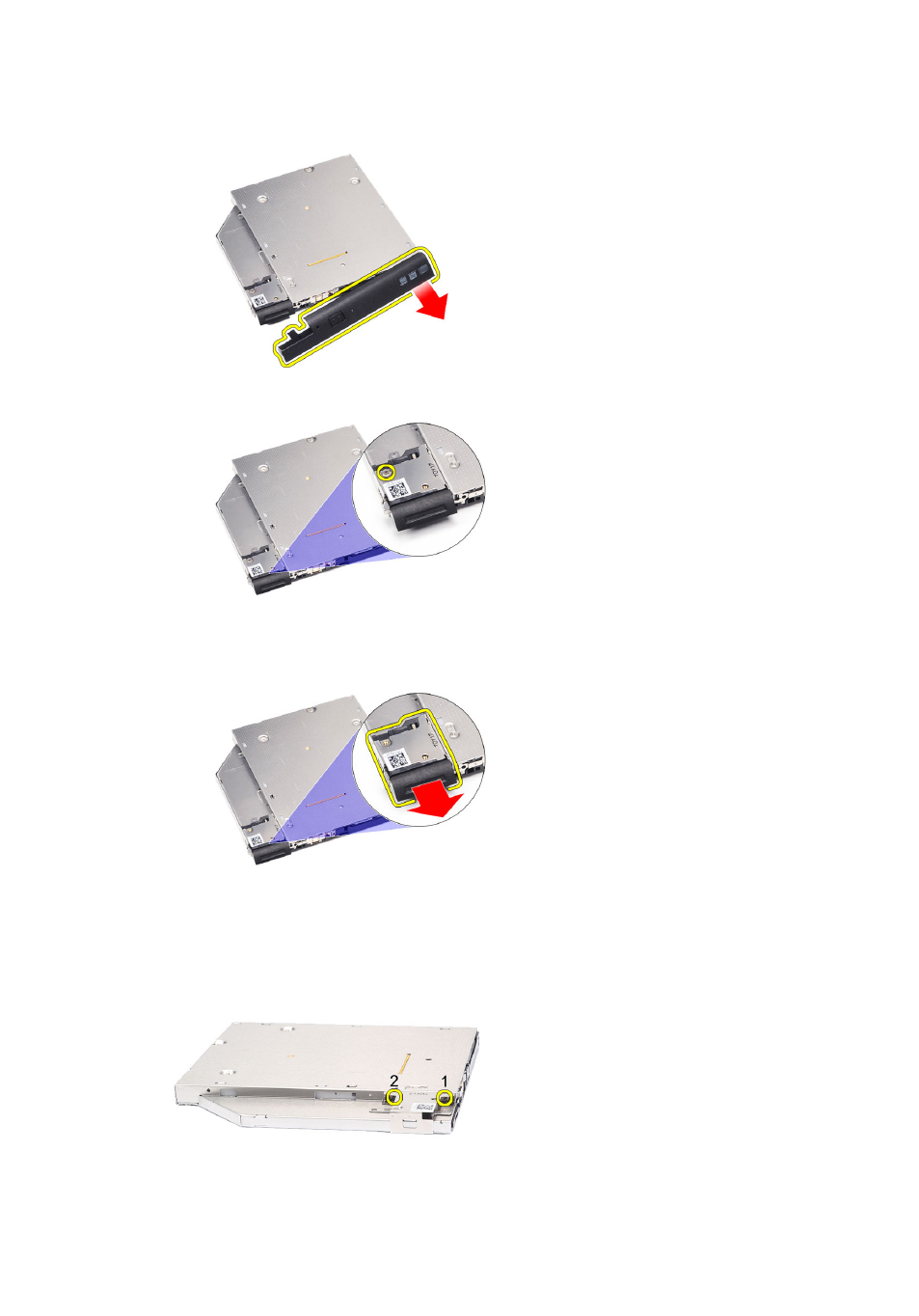

6. Pull the other side of the optical drive door to release it completely from the

optical drive.

7. Remove the screw that secures the drive latch to the optical drive.

8. Remove the drive latch from the optical drive.

9. Remove the screws that secures the drive latch bracket to the optical drive.
