8 lift the keyboard off the computer – Dell Inspiron M511R (Mid 2011) User Manual
Page 28
28
Keyboard
CAUTION:
The keycaps on the keyboard are fragile, easily dislodged, and
time-consuming to replace. Be careful when removing and handling the keyboard.
CAUTION:
Be extremely careful when removing and handling the keyboard.
Failure to do so could result in scratching the display panel.
6 Carefully turn the keyboard over and place it on the palm rest assembly.
7 Lift the connector latch that secures the keyboard cable to the connector
on the system board and remove the keyboard cable.
8 Lift the keyboard off the computer.

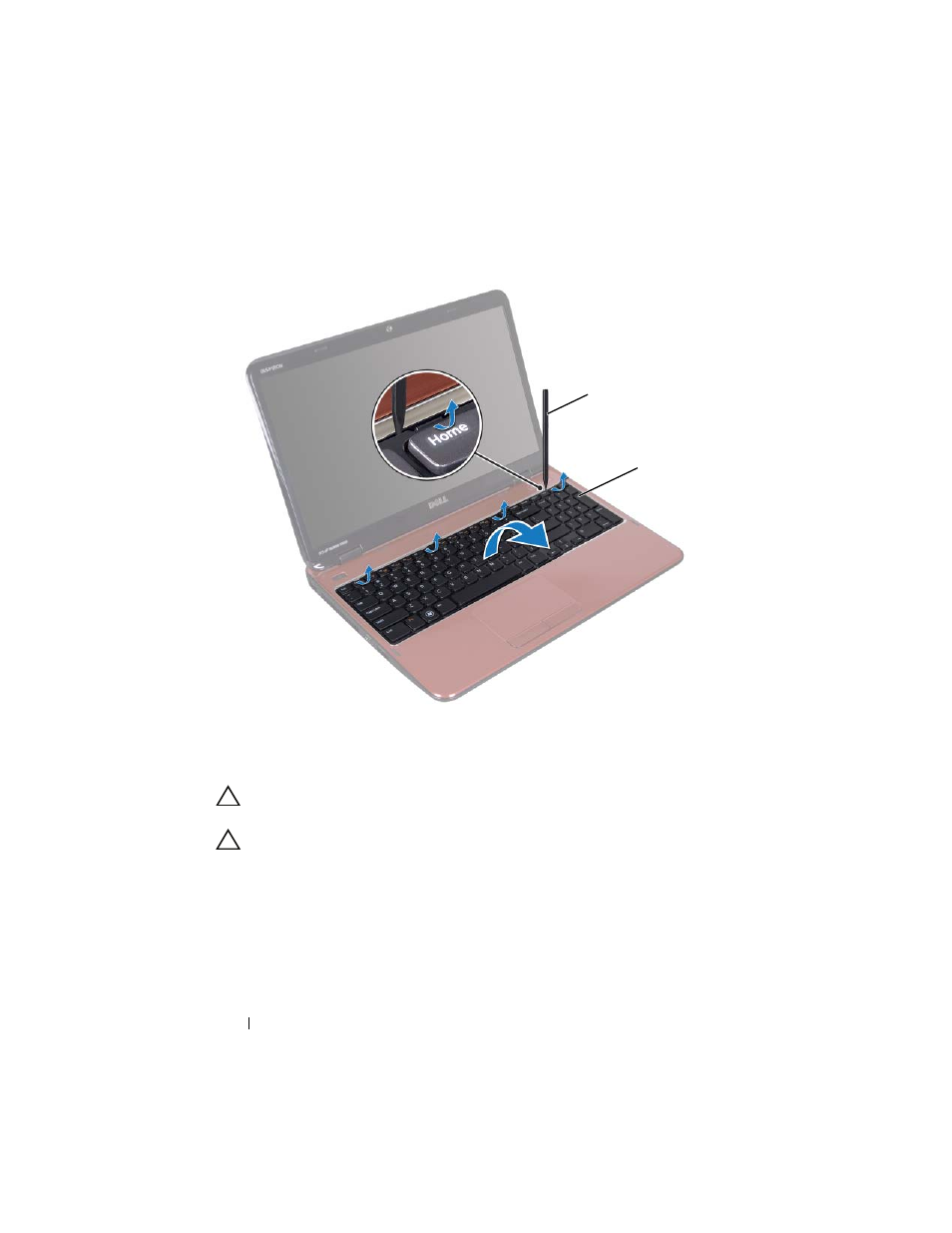

1
plastic scribe
2
keyboard
1
2
