Replacing the optical drive – Dell Inspiron M511R (Mid 2011) User Manual
Page 24
24
Optical Drive
Replacing the Optical Drive
1 Follow the instructions in "Before You Begin" on page 9.
2 Slide the optical-drive assembly into the optical-drive bay until it is fully
seated.
3 Replace the module cover (see "Replacing the Module Cover" on page 18).
4 Replace the battery (see "Replacing the Battery" on page 16).
CAUTION:
Before turning on the computer, replace all screws and ensure that no
stray screws remain inside the computer. Failure to do so may result in damage to
the computer.

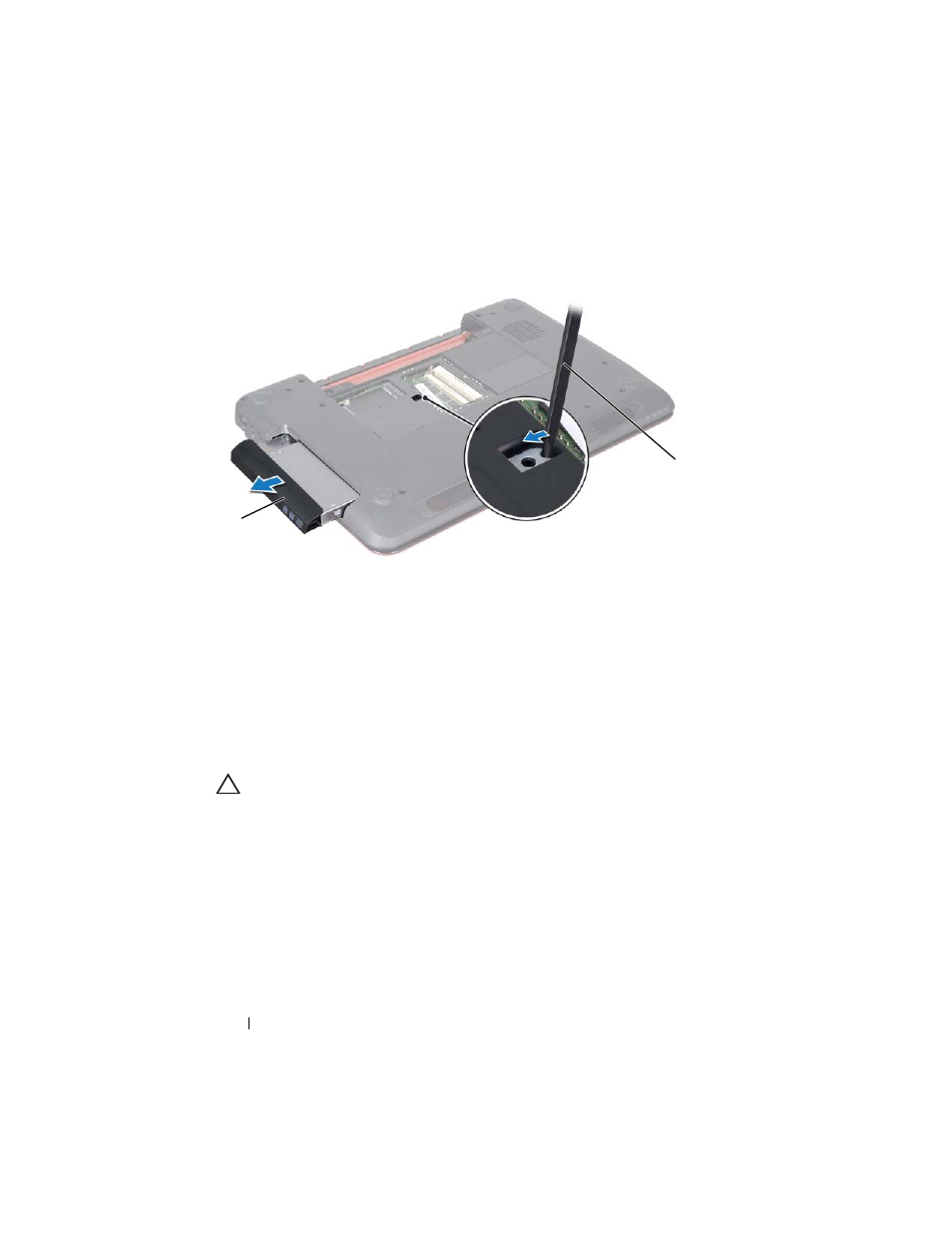

1
optical-drive assembly
2
plastic scribe
1
2
