Crestron TPMC-8T Isys i/O™ 8.4” TableTop WiFi Touchpanel

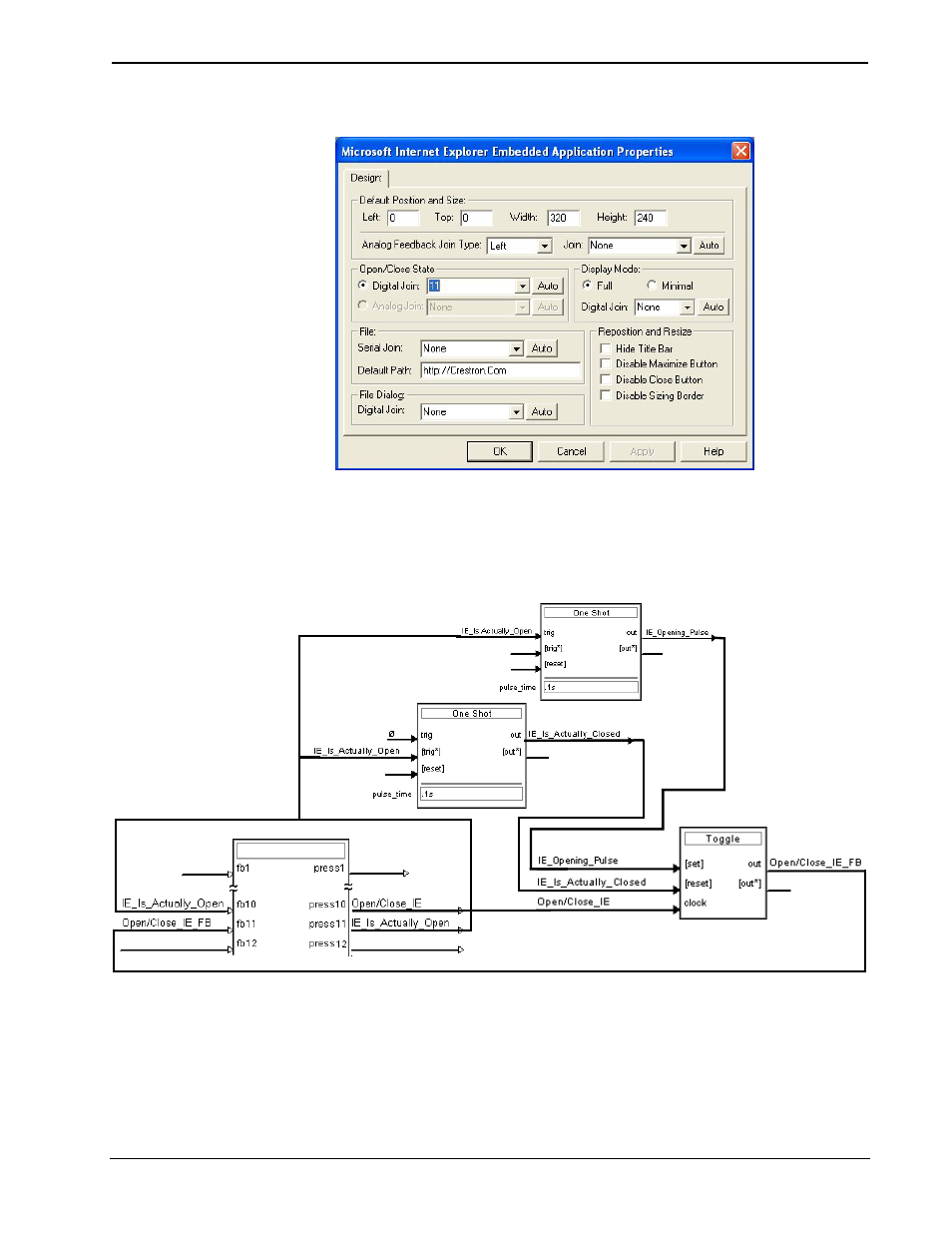

Sample of an “Embedded Application Properties” Window
Programming Embedded Windows Applications
The following diagram (shown as TPMC-8X) is an example of a basic SIMPL
program that enables you to open/close an embedded application. The example
program is discussed following the diagram.
TPMC-8X (Digitals)
The example has Join #10 assigned to a button that is used to toggle the state of
Internet Explorer. Press10 is routed to the clock line of a Toggle symbol. The output
of the toggle is routed to fb11. Join #11 is referred to as the "Open/Close State
Digital Join.” The feedback signal of the Open/Close State Digital Join is used to
Open/Close the application. In this example, when fb11 goes high, Internet Explorer
opens, and when fb11 goes low, Internet Explorer closes. However, since the
application can also be closed by pressing the "X" in the upper right hand corner of
Operations Guide – DOC. 6567C Isys i/O™ 8.4” TableTop WiFi Touchpanel: TPMC-8T • 53
