Isys i/O™ 8.4” TableTop WiFi Touchpanel
Crestron TPMC-8T

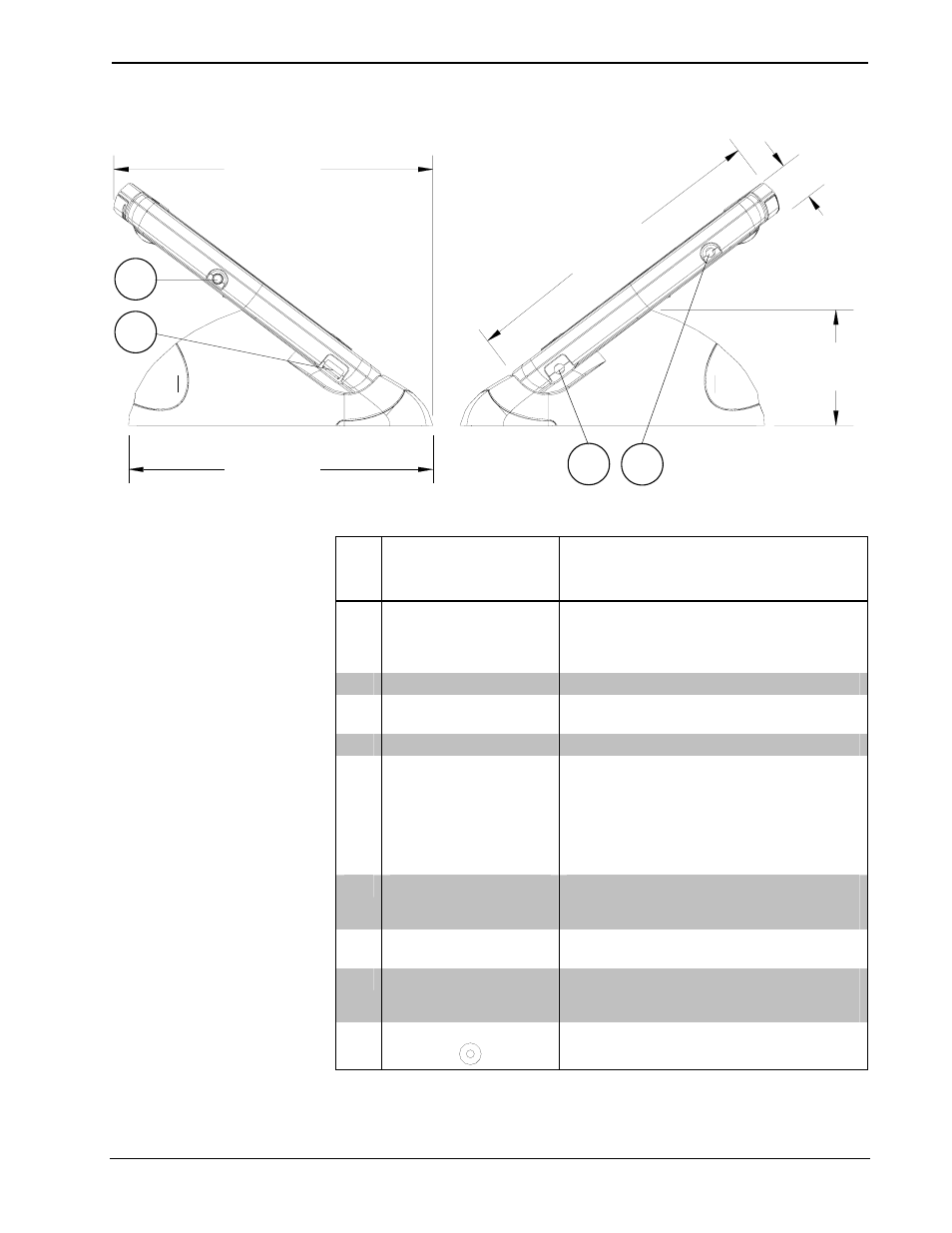

TPMC-8T Overall Dimensions (Side Views)
8.16 in
(20.71 cm)
7.78 in
(19.75 cm)
8.21 in
(20.85 cm)
0.92 in
(2.32 cm)
2.95 in
(7.49 cm)
13
9
12
11
Connectors, Controls & Indicators
# CONNECTORS,
CONTROLS &
INDICATORS
DESCRIPTION
1 STYLUS Used to “tap” or to do “select and drag”
functions just as you would using a mouse;
Also used to “type” on the input panel
“keyboard” when entering text or commands
2
MEMORY CARD
(1) Type II CF+ card slot
1
3 POWER
LED (1) Green LED, indicates touchpanel power
status
4
BATTERY LED
(1) Green/yellow dual color LED, not used
5 WIFI
LED (1) Green LED, indicates wireless network
connection status:
Solid green – communicating with a wireless
access point (WAP)
Blinking green – searching for a WAP
Off – no wireless communication (unit is in
power down mode or power is off)
6
THUMBPAD &
ARROWS
2
(1) programmable 5-way thumbpad (4-way
navigation plus center “Enter” button) and (2)
programmable up/down pushbuttons
7 HARD
KEYS (4) Programmable pushbuttons below
touchscreen
8
BIOMETRIC
SCANNER
AuthenTec EntraPad
®
1610 fingerprint
scanner; identifies up to 30 users by
fingerprint
9
12V 3.5A
3
(2) 2.5 mm barrel DC power jacks (right side
and rear) (power supply included)
(Continued on following page)
8
• Isys i/O™ 8.4” TableTop WiFi Touchpanel: TPMC-8T
Operations Guide – DOC. 6567C
