Isys i/O™ 8.4” TableTop WiFi Touchpanel Crestron TPMC-8T
Hardware Hookup
Ventilation The TPMC-8T should be used in a well-ventilated area.
To prevent overheating, do not operate this product in an area that exceeds the
environmental temperature range listed in the table of specifications.
Connect the Device When making connections to the TPMC-8T, note the following:
• Use the included Crestron power supply for these devices.
• The power supply cable cannot be extended.

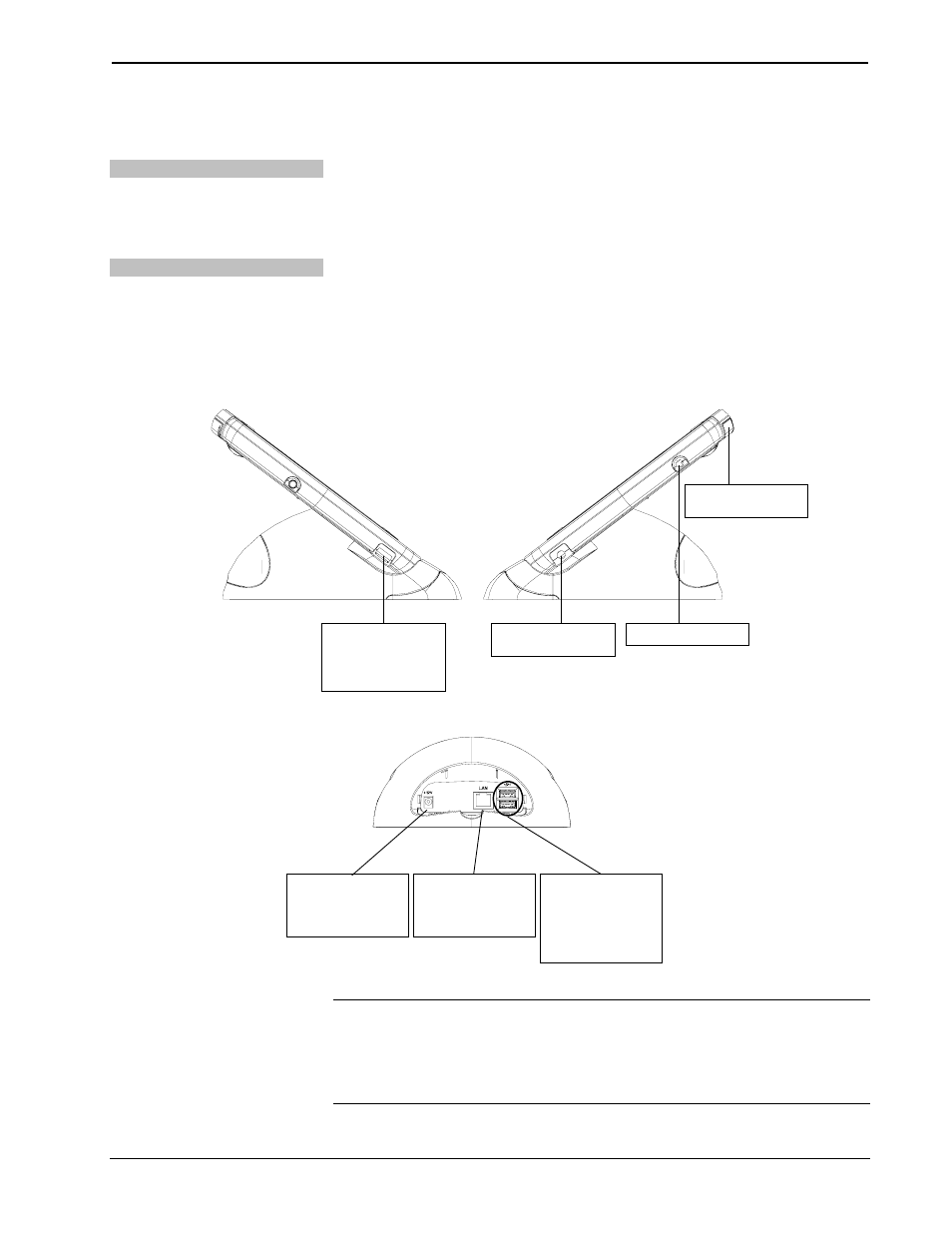

Hardware Connections for the TPMC-8T
USB: FROM
KEYBOARD OR
OTHER WIRED
DEVICE
COMPACT FLASH
CARD SLOT
HEADPHONES 12V 3.5A:
AC POWER PACK*
Left Side View Right Side View
LAN:
10BaseT/
100BaseTX HIGH
SPEED ETHERNET
USB (2):
KEYBOARD,
MOUSE, MASS
STORAGE OR
OTHER WIRED
DEVICES
+12V:
AC POWER PACK*
(included with
TPMC-8T)
Rear View of Base (with cover removed)
* Crestron recommends using either the power jack on the base or on the side of the panel but not both at the same time.
CAUTION: Do not apply excessive pressure to the touchscreen display during
handling. Doing so can crack the screen and damage the touchpanel.
NOTE: When inserting a Compact Flash card, orient the card so that the small lip at
the top of the card is facing away from the touchpanel.
44 • Isys i/O™ 8.4” TableTop WiFi Touchpanel: TPMC-8T Operations Guide – DOC. 6567C
