Hardware Description
1
• For static POD, Table 1 shows the base internal and external ports that are licensed, as well as
the additional 12 ports that can be activated with a POD license. For details about activating
and deactivating additional ports when you have POD licensing, refer to
“Activating Ports on
Demand (POD)” on page 17.
Hardware Description
This section describes the physical SAN I/O Module as shipped from the factory. For specifications,
such as installed memory, weight and physical dimensions, facility requirements, architectural
specifications, and regulatory compliance, refer to
Appendix A, “SAN I/O Module specifications”
Port side
Externally accessible ports and LEDs are on the port side of the SAN I/O Module. The port side
faces out when the SAN I/O Module is inserted into the I/O bay of the Blade Server enclosure.
Figure 1 details the port side. For a complete description of the locations and interpretations of
these LEDs, see “Interpreting LED activity” on page 22.
Access the I/O module handle at the front of the port side of the SAN I/O Module. By lifting the
handle’s release latch, you can open the handle to remove and insert the unit from the Blade
Server Enclosure.

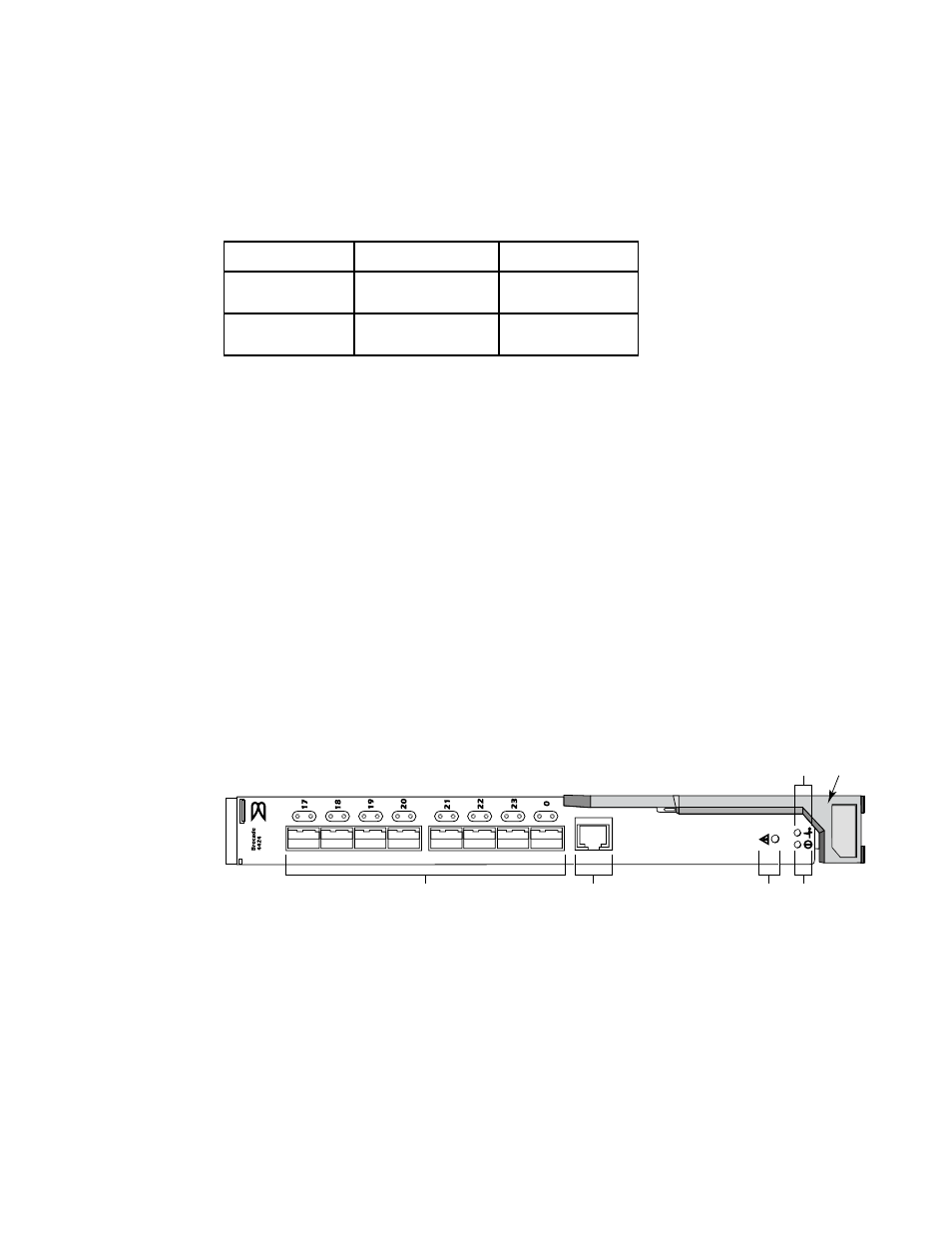

FIGURE 1 Port Side View
1. Ports with port status and port speed LEDs
2. RJ45 console port
3. SAN I/O Module status LED
4. Power status LED
5. Server management LED
6. SAN I/O Module handle
TABLE 1 Ports available
Port Licensing External Ports Internal Ports
Base 17, 18, 19, and 20 1, 2, 3, 4, 5, 6, 7, and
8
POD 0, 21, 22, and 23 9, 10, 11, 12, 13, 14,
15, and 16
IOIOI
1 2 3 4
5 6
