Cisco 10008 Router Performance Routing Engine 3 Installation
OL-8544-01
Installing or Replacing a PRE3

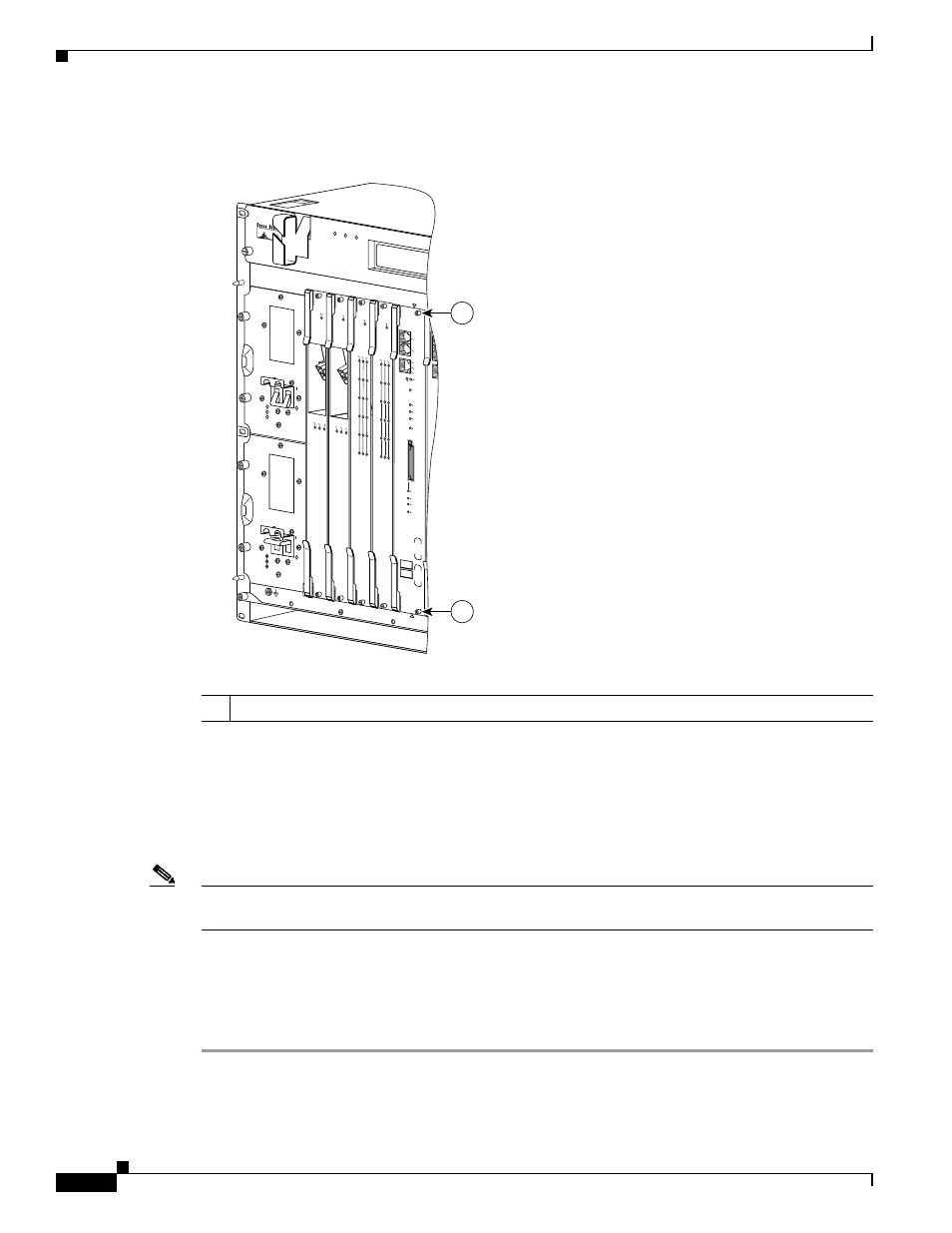

Figure 8 PRE3 Captive Screw Locations
Configuring a PRE3
After the PRE3 is successfully installed, you can configure it for network use. For information about
configuring the PRE3, see
“Managing the Router Using the Network Management Ethernet Port” section
on page 24 .
Note You do not need to configure a redundant (secondary) PRE3. The standby PRE3 automatically assumes
the configuration of the active PRE3.
Removing a PRE3
Use the following procedure to remove a PRE3 from the chassis:
Step 1 Attach an antistatic strap to your wrist or ankle and to an ESD socket (see Figure 5 ) on the chassis, or to
a bare metal surface on the chassis or frame.
1 Captive screws
1
3 2
4 0A
