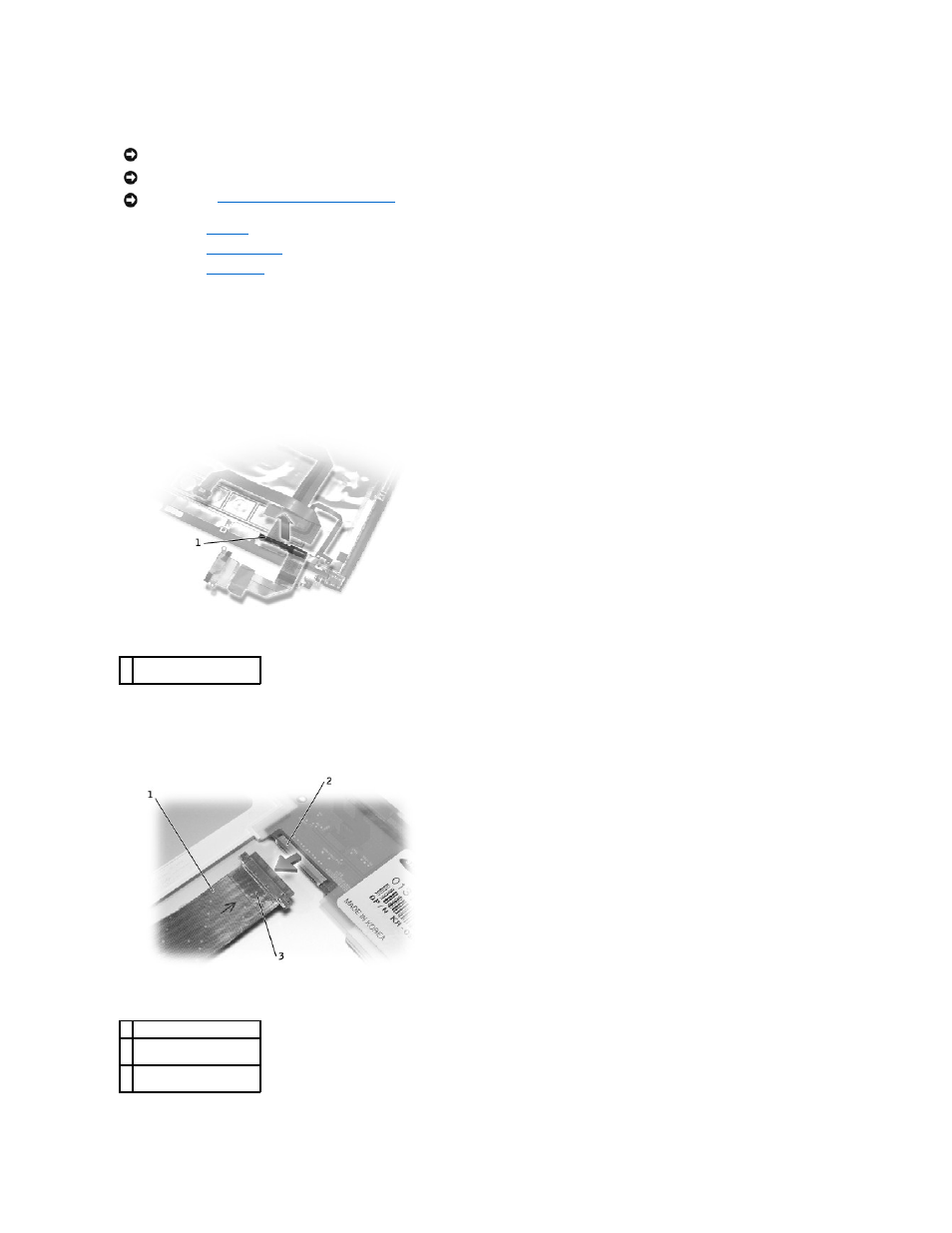

Removing the 15-Inch Display Panel
1. Remove the keyboard .
2. Remove the display assembly .
3. Remove the display bezel .
4. Remove the four M2 x 3-mm screws on the left side of the display panel.
5. Remove the four M2 x 3-mm screws on the right side of the display panel.
6. Remove the M2.5 x 5-mm screw that secures the display-feed flex cable to the display assembly.
7. Unsnap the flex-cable retention bracket from the top cover, and lift the bracket out of the display assembly.
8. Lift the display panel from the top, and rotate the display panel out of the top cover.
9. Disconnect the bottom flex-cable connector from the inverter connector on the system board by pulling on the attached pull tab away from the inverter
connector.
10. Pull the top flex-cable connector down and away to remove it from the display panel connector.
NOTICE: Disconnect the computer and any attached devices from electrical outlets, and remove any installed battery.
NOTICE: To avoid ESD, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the computer.
NOTICE: Read " Preparing to Work Inside the Computer " before performing the following procedure.
1 flex-cable retention
bracket
1 pull tabs
2 inverter connector on
system board
3 bottom flex-cable
connector
