Installing the system board – Dell Latitude E6530 (Mid 2012) User Manual
Page 44

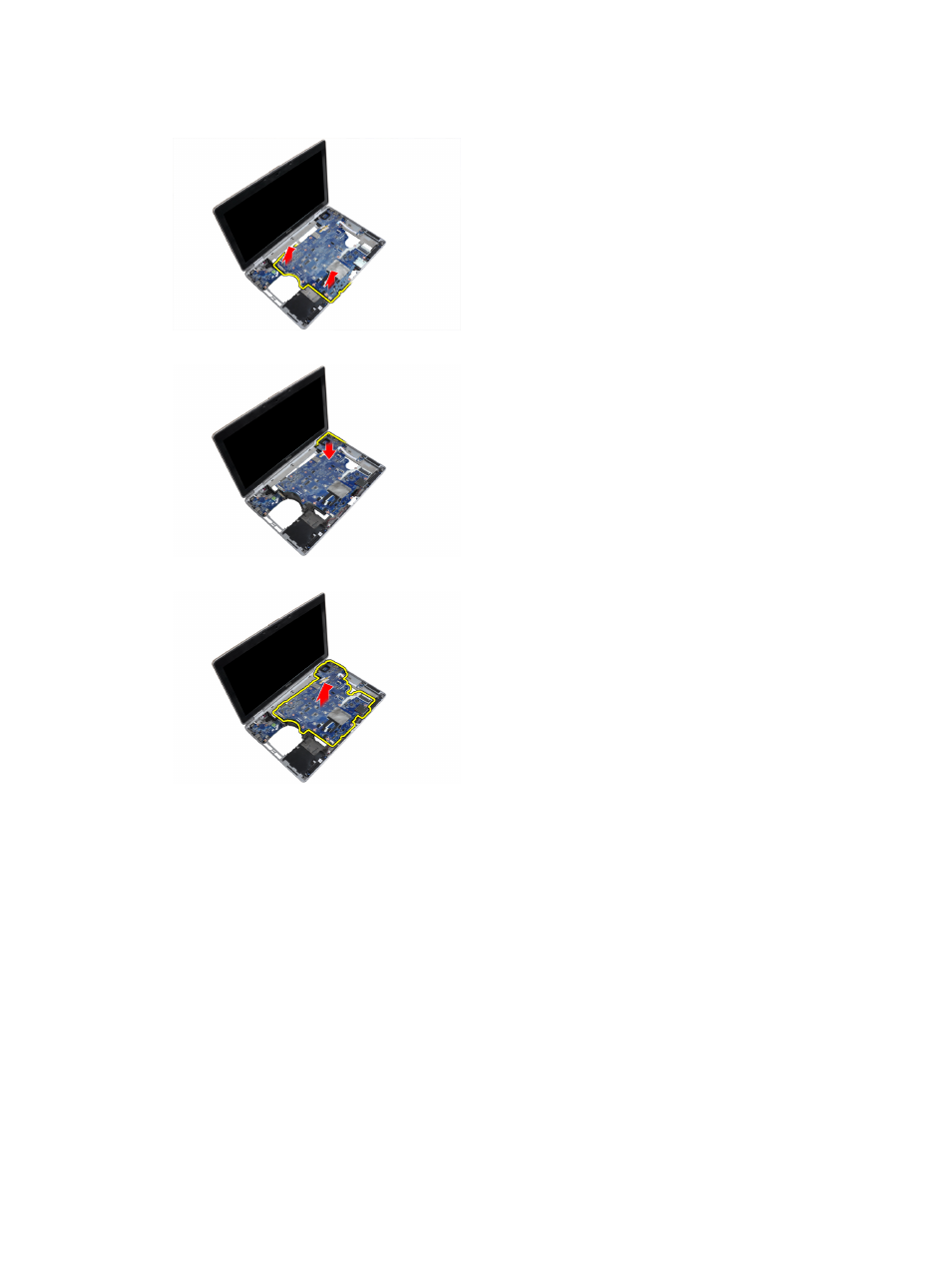

12. Lift the edge of the system board to a 45–degree angle.
13. Release the system board from the ports and connectors.
14. Lift the system board from the computer.
Installing the System Board
1.
Place the system board on the chassis.
2.
Tighten the screws to secure the system board to the computer.
3.
Connect the following cables to the system board:
a) WiFi-switch board
b) speaker
c) coin-cell battery
d) LVDS
4.
Route the antenna cables through the routing channels.
5.
Install the LVDS support bracket in its position in the computer.
6.
Tighten the screws to secure the LVDS support bracket to the computer
7.
Connect the power connector cable to the system board.
44
