Dell Latitude E6530 (Mid 2012) - Manual (Page 21)

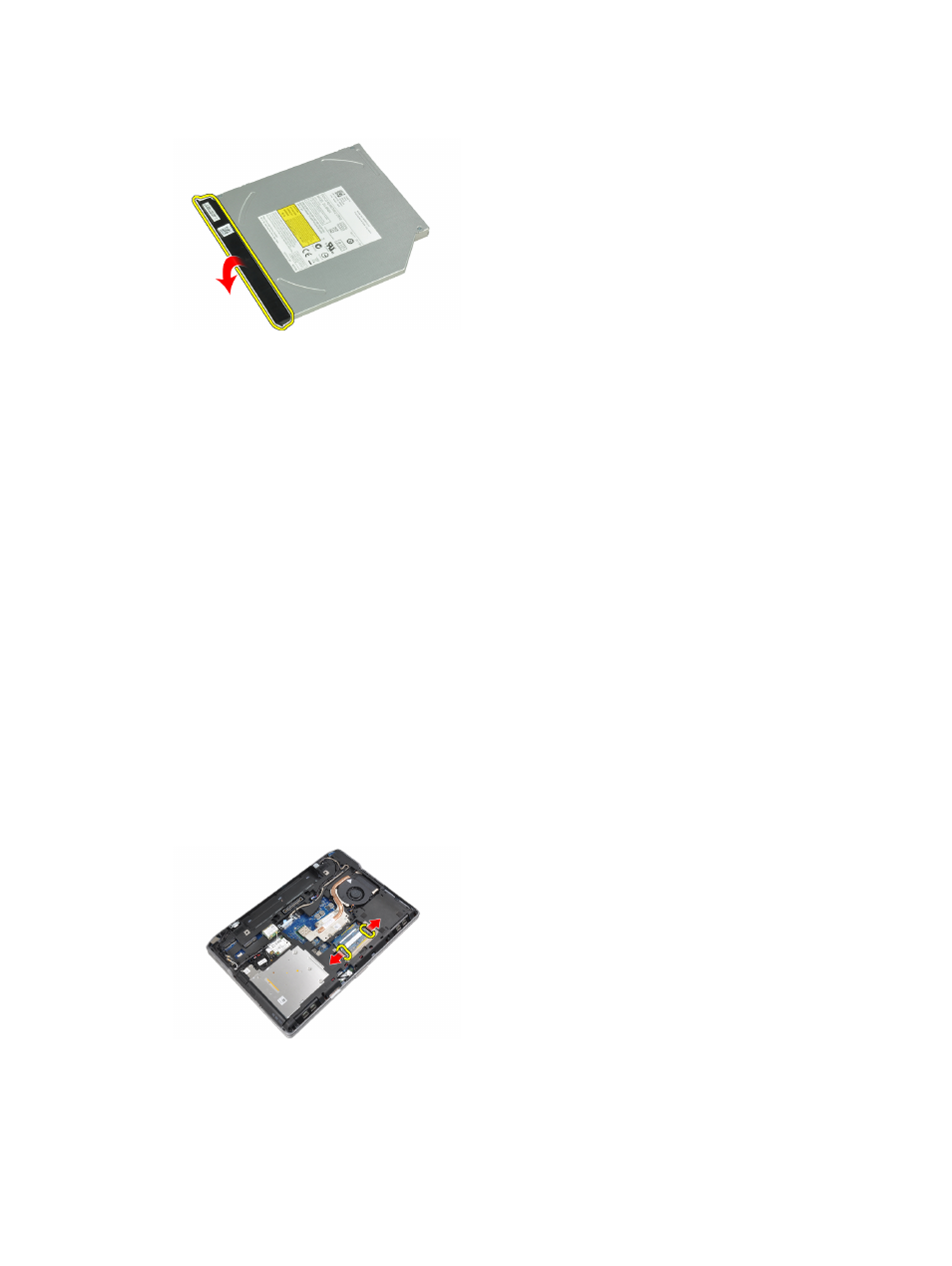

9. Remove the optical-drive door from the optical drive.
Installing the Optical Drive
1. Secure the optical-drive door to the optical drive.
2. Install the latch bracket to the optical drive.
3. Tighten the screws to secure the optical-drive latch bracket to the optical drive assembly.
4. Secure the optical-drive latch to the optical drive assembly.
5. Tighten the screw to secure the optical drive latch.
6. Slide the optical drive into its slot.
7. Flip the computer, and push in the eject latch to secure the optical drive.
8. Install the battery.
9. Follow the procedures in After Working Inside Your Computer .
Removing the Memory
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) base cover
3. Pry the securing clips away from the memory module until it pops up.
21
