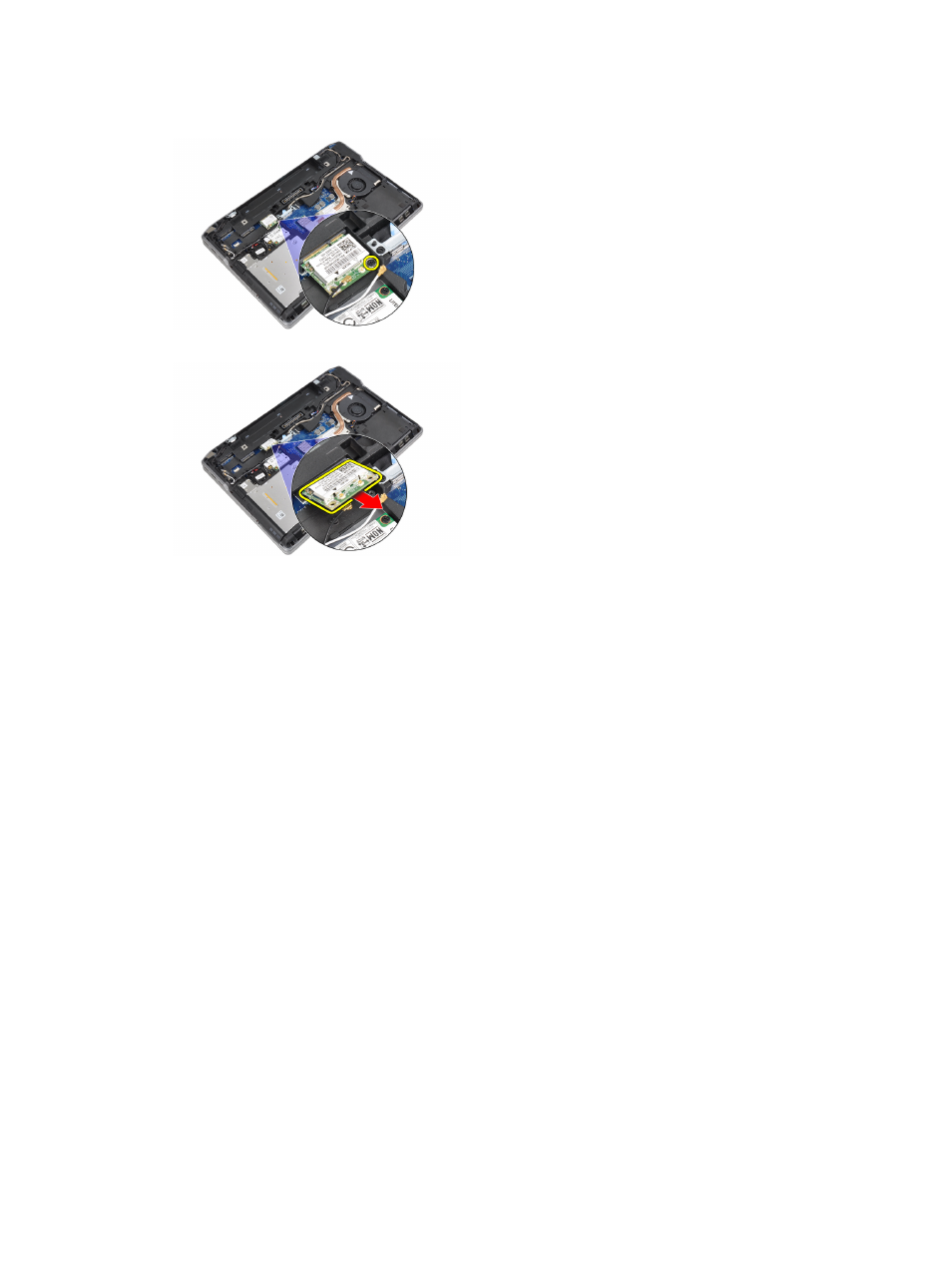

4. Remove the screw that secures the WLAN card to the computer.
5. Remove the WLAN card from its slot on the system board.
Installing the WLAN Card
1. Insert the WLAN card into its connector at a 45–degree angle into its slot.
2. Connect the antenna cables to their respective connectors marked on the WLAN card.
3. Tighten the screw to secure the WLAN card to the computer.
4. Install:
a) base cover
b) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Heat Sink
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) base cover
