Display bezel – Dell Inspiron 9300 User Manual

Page 24

background image

3.

Thread the Mini PCI card antenna cables back through the hole in the base of the computer so that they are accessible from the bottom of the
computer.



4.

Connect the display cable to the system board.



5.

Reroute the display cable into the cable channel.



6.

Replace the

hinge cover

.




7.

If a Mini PCI card is installed,

connect the antenna cables to the card

. If one is not installed, tuck the antenna cables into their secured location.




8.

Replace the Mini PCI card cover.



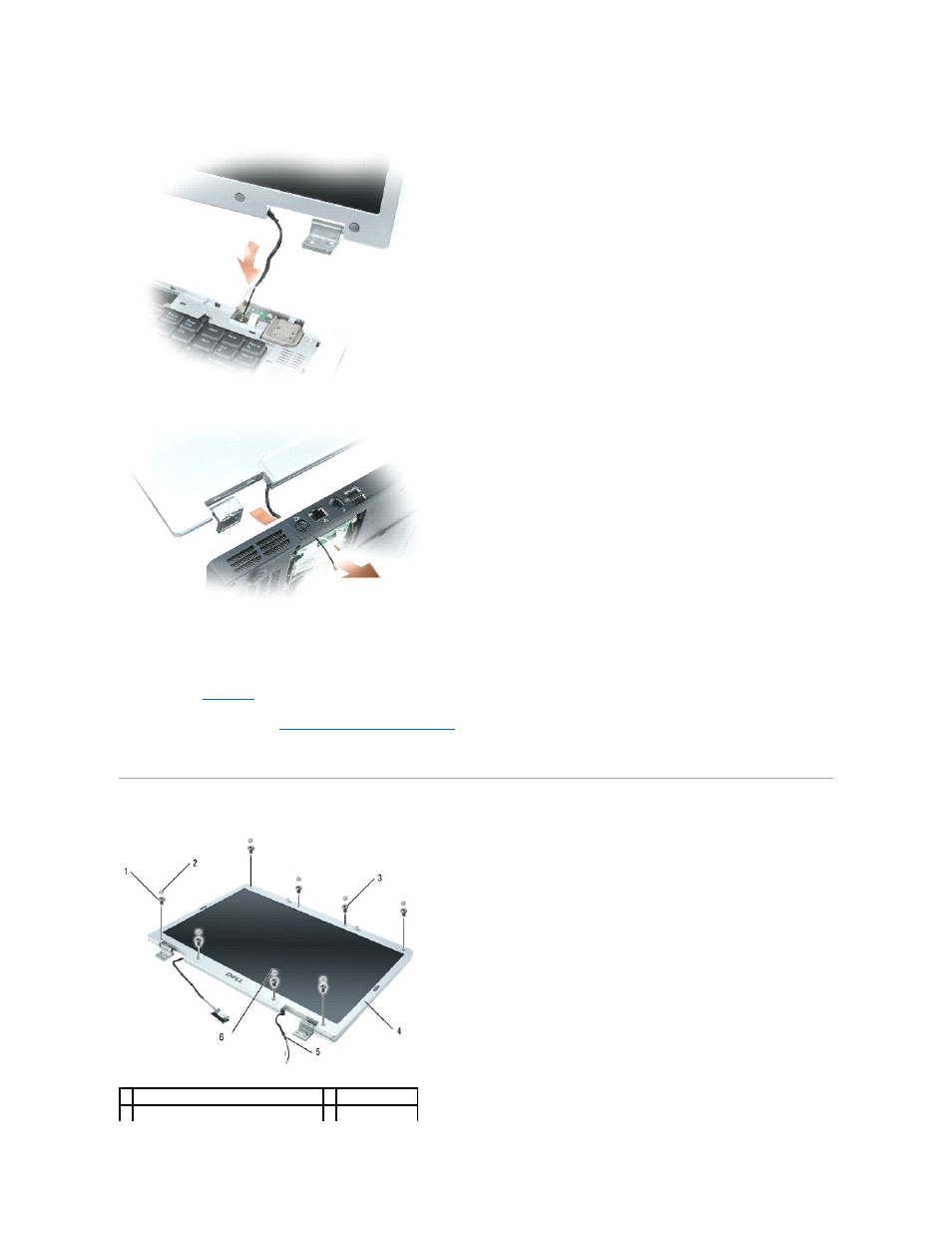

Display Bezel

1 M2.5 x 5-mm screws (4)

4 display bezel

2 rubber screw-covers/display bumpers (6) 5 antenna cables
