About Your Monitor
Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on
the back and bottom of your monitor.
NOTE: The USB ports on this monitor are USB 3.0 compliant.
Transfer speed
Data Rate
Power Consumption
SuperSpeed
5 Gbps
4.5 W (Max., each port)
Hi-Speed
480 Mbps
2.5 W (Max., each port)
Full speed
12 Mbps
2.5 W (Max., each port)
NOTE: Up to 1.5 A on USB downstream port (port with
lightning icon)
with BC 1.2 compliance devices; up to 0.9 A on the other 3 USB
downstream ports.

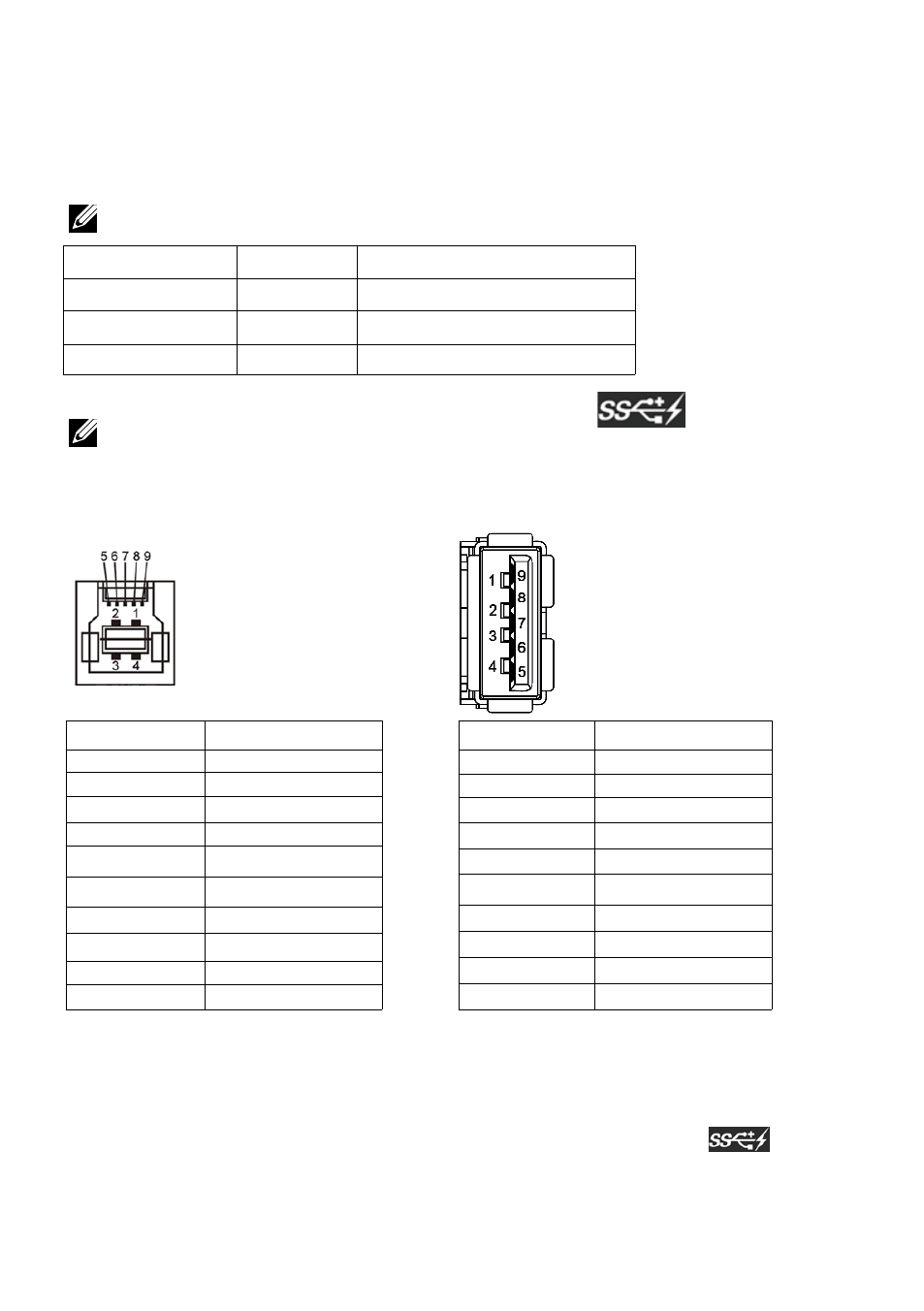

USB Upstream Connector
USB Downstream Connector
Pin Number
Signal Name
1
VBUS
2
D-
3
D+
4
GND
5
StdB_SSTX-
6
StdB_SSTX+
7
GND_DRAIN
8
StdB_SSRX-
9
StdB_SSRX+
Shell
Shield
Pin Number
Signal Name
1
VBUS
2
D-
3
D+
4
GND
5
StdA_SSRX-
6
StdA_SSRX+
7
GND_DRAIN
8
StdA_SSTX-
9
StdA_SSTX+
Shell
Shield
USB ports
• 1 upstream - bottom
• 4 downstream - 1 at back, 3 at bottom
Power Charging Port- the one on the rear cover (Port with
lightning icon); supports fast current charging capability if the device is
BC 1.2 compatible.
