14

About Your Monitor
Activate the computer and the monitor to gain access to the OSD.
NOTE: This monitor is ENERGY STAR ® -compliant.
Pin Assignments

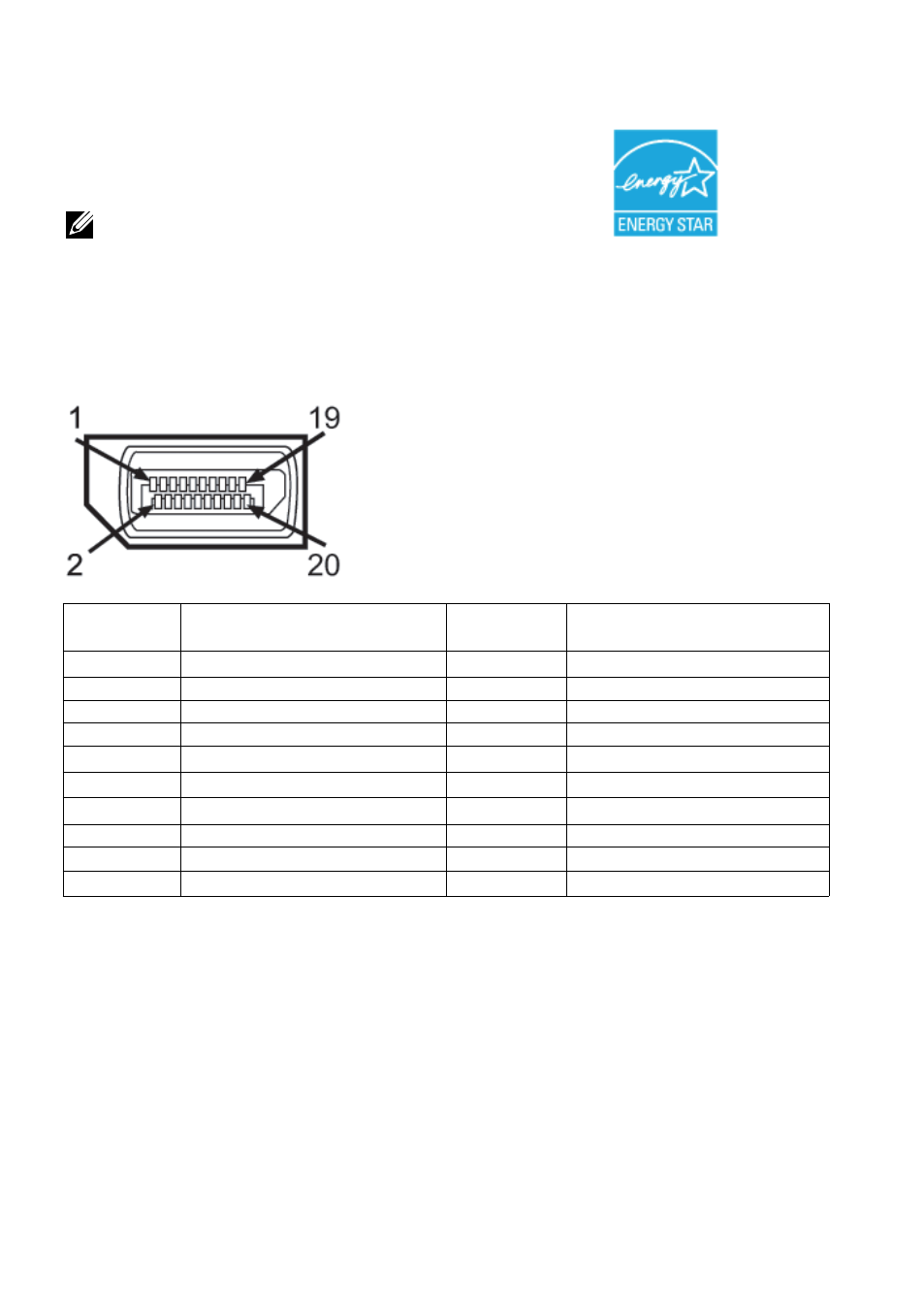

DisplayPort Connector (DP in and DP out)
Pin Number 20-pin Side of the monitor
connector
Pin Number 20-pin Side of the monitor
connector
1 ML0(p) 11 GND
2 GND 12 ML3(n)
3 ML0(n) 13 GND
4 ML1(p) 14 GND
5 GND 15 AUX(p)
6 ML1(n) 16 GND
7 ML2(p) 17 AUX(n)
8 GND 18 HPD
9 ML2(n) 19 DP_PWR Return
10 ML3(p) 20 +3.3 V DP_PWR
