1-16 2-Post Rack Installation
www
.dell.com | support.dell.com
NOTE: As you pull the system out to its furthest extension, the slide assemblies
will lock in the extended position. To push the system back into the rack, press the
slide release latch on the side of the slide, and then slide the system completely
into the rack.
4 Slide the system in and out of the rack to verify that the cables are routed correctly and
do not bind, stretch, or pinch with the movement of the cable-management arm.
5 Tighten the tie-wraps just enough to ensure that the cable slack is neither too tight to
cause excessive pinching nor too loose, yet keep the cables from slipping as the system
is moved in and out of the rack.

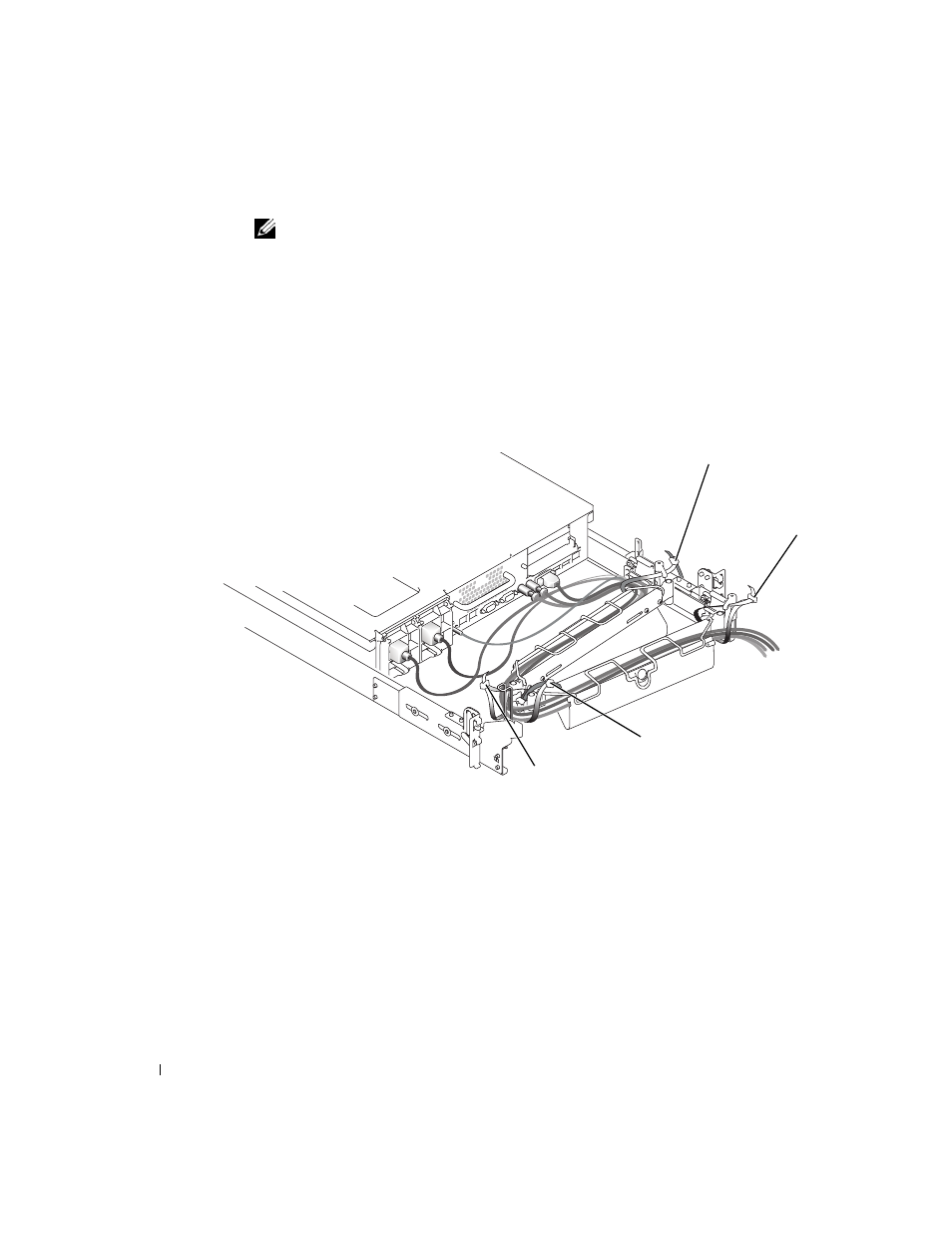

F i g u r e 1 - 1 0 . Ro u t i n g C a b l e s
You have completed the installation of the rack kit in a two-post rack.
