The rPDU front panel is used for the firmware flash upgrades as follows (see Figure 2):
S
Use the Ethernet port for a network NMC or MCU firmware upgrade.
S Use the serial port for a serial NMC or MCU firmware upgrade.
S
Use the RESET button to reset the NMC card when performing a network NMC firmware upgrade.
in Process
Flash Update
78%
Ethernet
Port Serial
Port
NMC Reset Button

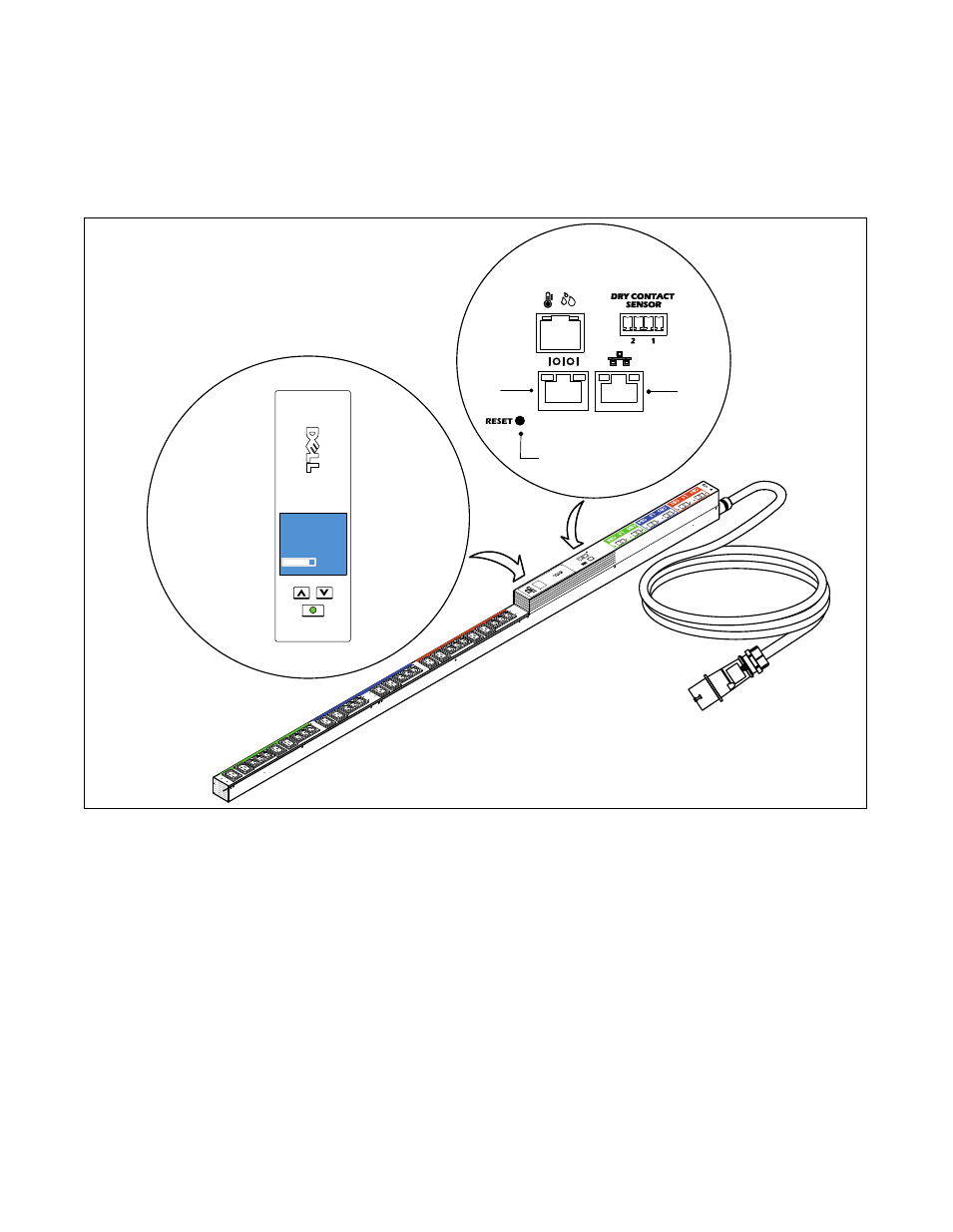

Figure 2. rPDU LCD and Ports
Although the upgrade does not impact rPDU operation, the front panel buttons are disabled and you cannot use the
LCD menus to manage the rPDU during the upgrade.
During an MCU upgrade, the LCD displays a Flash Update in Process message and provides a progress bar as the
upgrade progresses (see Figure 2). If the upgrade is interrupted, recovery processes allow the upgrade to restart. If the
MCU upgrade fails, the LCD displays a Flash Error message and the backlight changes to amber text with a dark red
background.
