32 |
Serial Upgrades for MCU Firmware

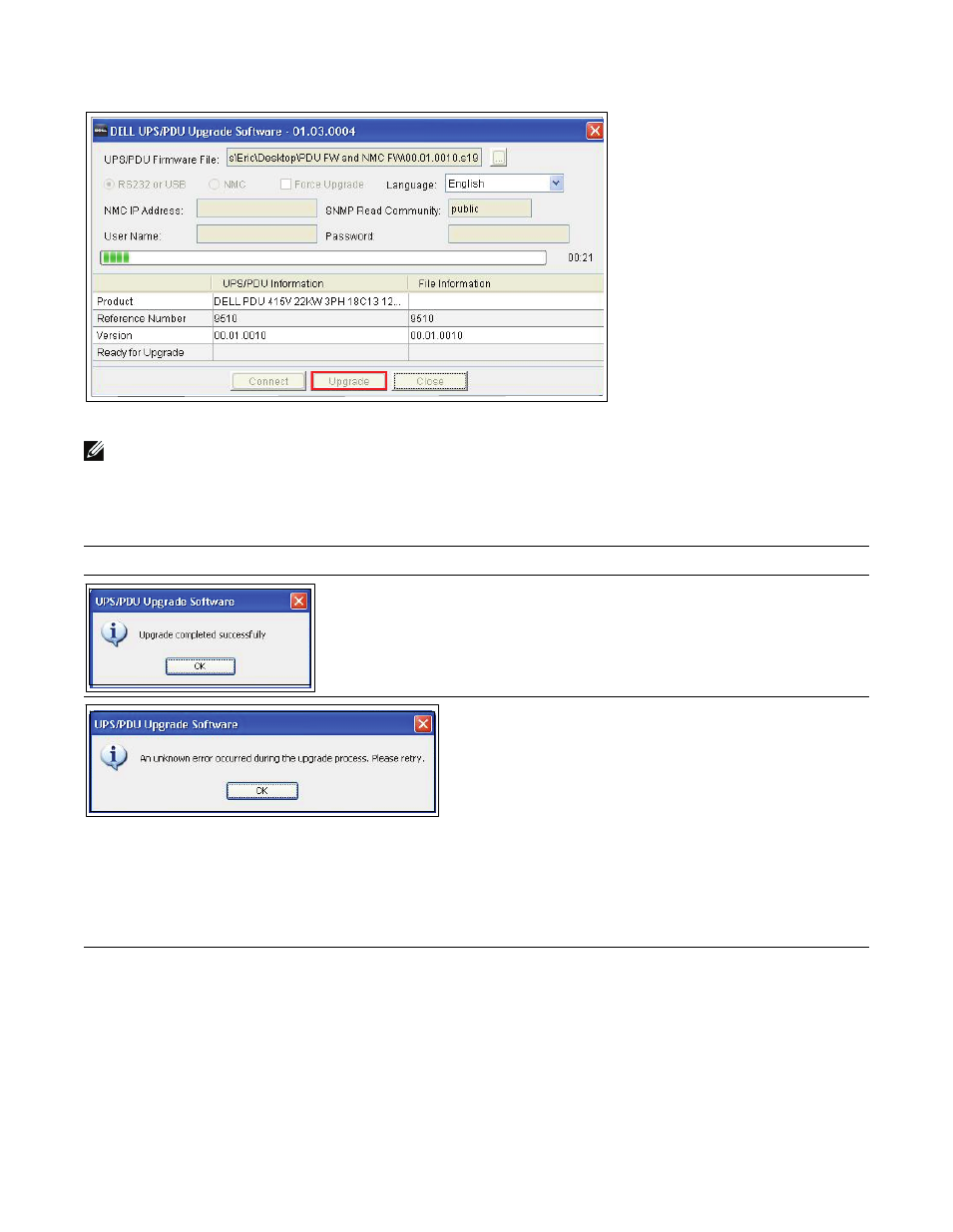

Figure 30. Monitoring MCU Upgrade Progress
NOTE: While upgrading, the rPDU LCD displays the message Flash Update in Process. A progress bar with the upgrade
percentage completed also displays on the LCD.
11 Determine the upgrade completion status (see Table 6):
Table 6. Upgrade Completion Status
Message Display Description
Successful
If the MCU firmware upgrade is successful, a successful
notification message displays. This procedure is
completed.
Not Successful
If errors occur during the upgrade, an error notification
message displays.
To retry the upgrade, perform the following:
1. Click Upgrade retry the upgrade procedure.
2. Determine the completion status:
S SUCCESSFUL: If the firmware upgrade was
successful, a successful notification message displays.
This procedure is completed.
S UNSUCCESSFUL: If retrying the MCU upgrade
fails, contact Dell User Support at
www.support.dell.com
.
