b.



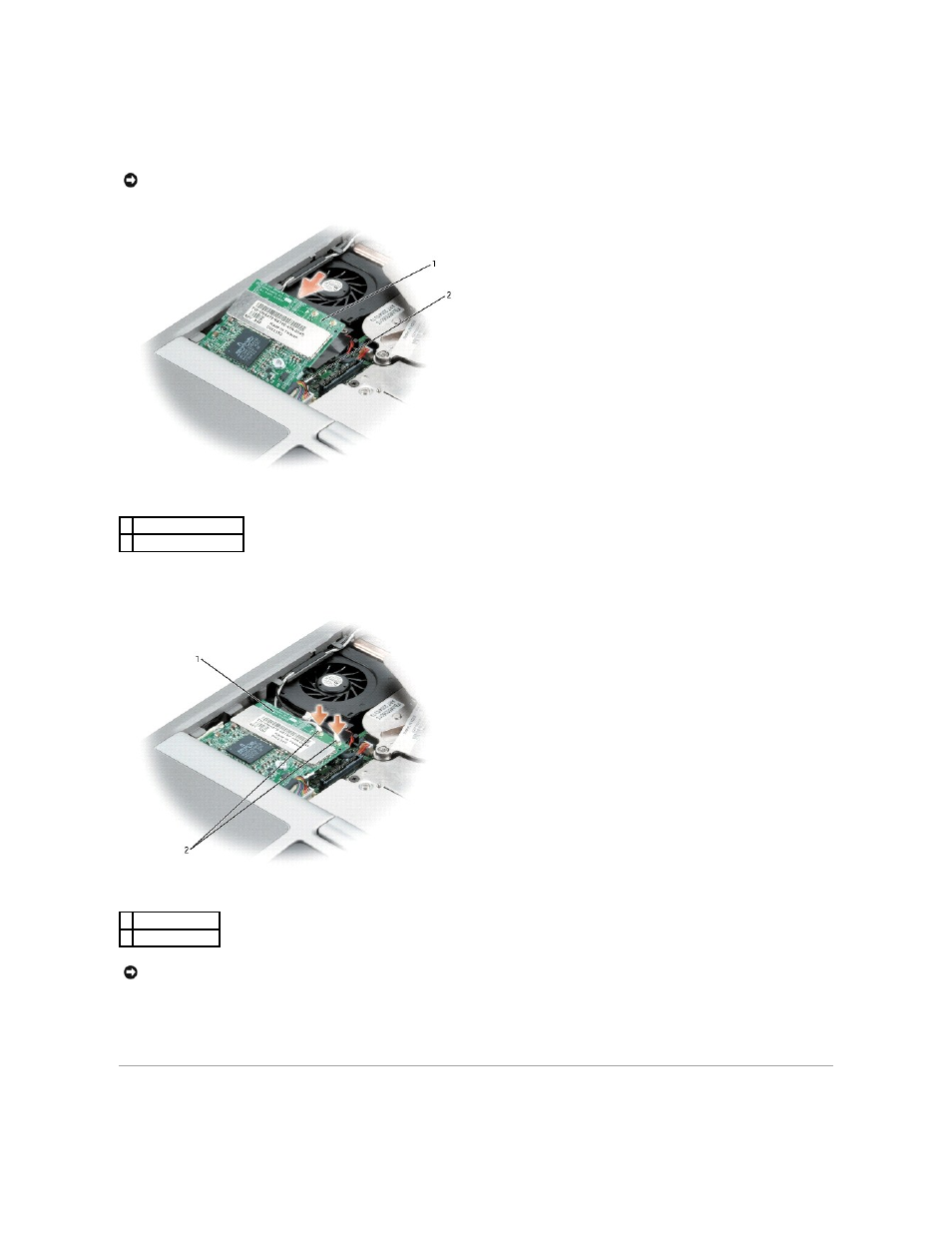

Release the Mini PCI card by spreading the metal securing tabs until the card pops up slightly.

c.



Lift the Mini PCI card out of its connector.



4.

Align the Mini PCI card with the connector at a 45-degree angle, and press the Mini PCI card into the connector until you feel a click.



5.

Connect the antenna cables to the Mini PCI card.



6.

Replace the cover and screws.



Hard Drive

NOTICE:

The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and realign the card.

1 Mini PCI card

2 metal securing tabs (2)

1 Mini PCI card

2 antenna wires (2)

NOTICE:

To avoid damaging the Mini PCI card, never place cables on top of or under the card.
