Jumpers and Connectors

123

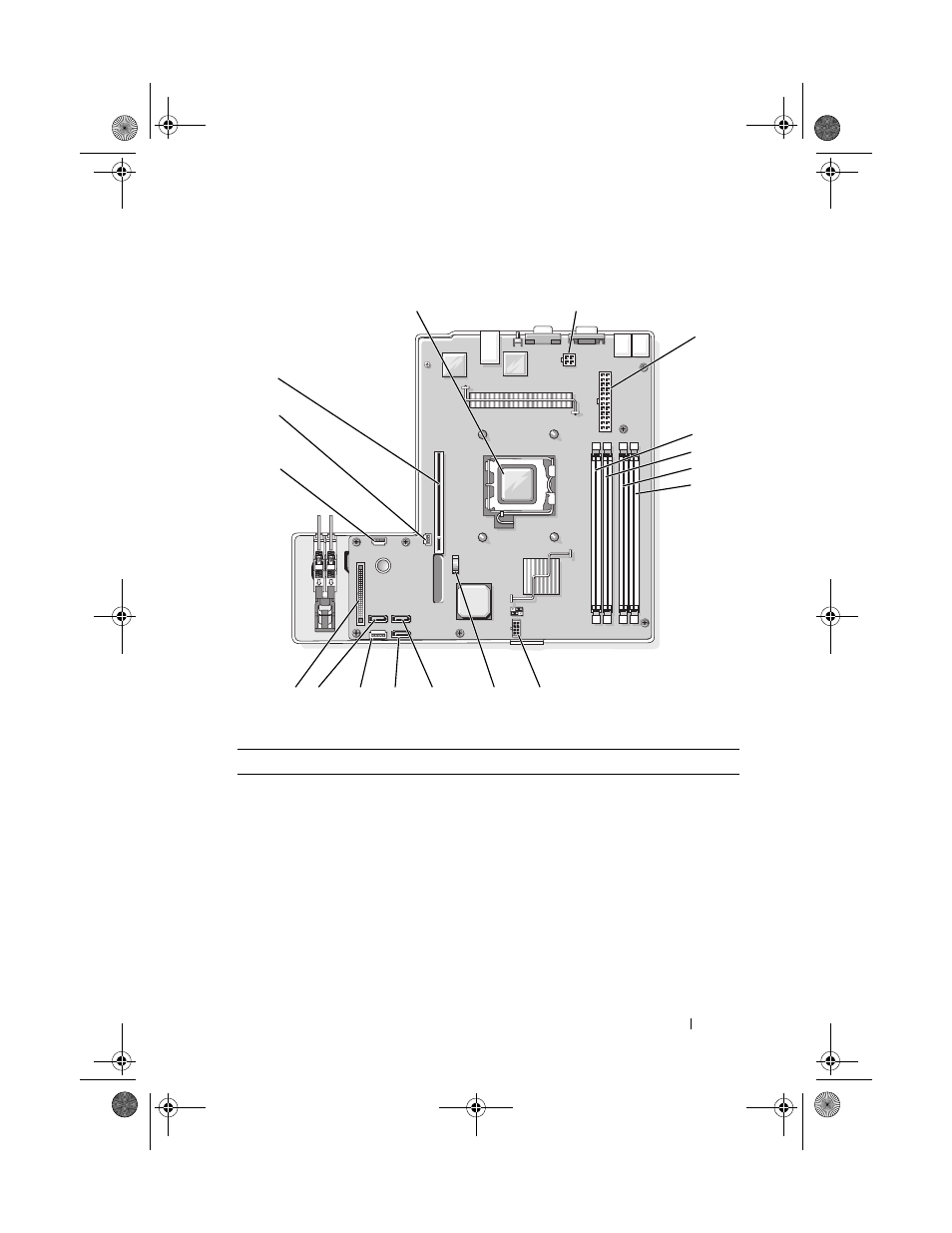

Figure 6-2.

System Board Connectors

Table 6-2.

System Board Connectors

Item

Connector

Description

1

CPU

Processor socket

2

12V

power supply connector

3

PWR_CONN

power supply connector

4

DIMM1_A

Memory module

5

DIMM2_A

Memory module

6

DIMM1_B

Memory module

7

DIMM2_B

Memory module

8

FAN

Power connector for the fans

2

1

4
5
6
7

9

8

3

14 13

12

11

15

10

16

17
