90
Installing System Components

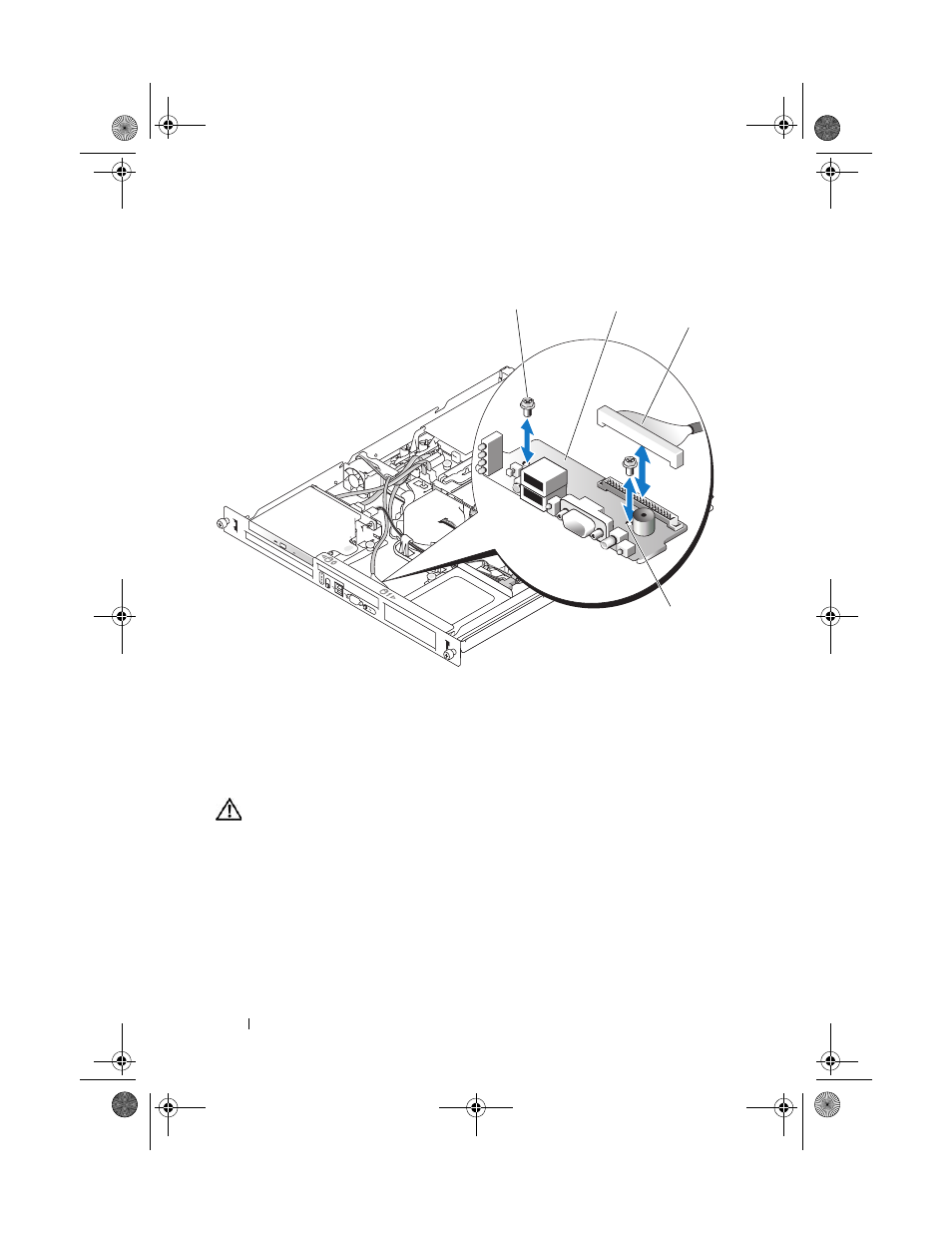

Figure 3-20. Installing and Removing the Control Panel Assembly
Installing the Control Panel Assembly
CAUTION:
Only trained service technicians are authorized to remove the system
cover and access any of the components inside the system. Before performing any
procedure, see your Product Information Guide for complete information about
safety precautions, working inside the computer and protecting against
electrostatic discharge.
1 Align the control panel assembly’s mounting holes with the chassis
mounting holes. See Figure 3-20.
2 Using a #2 Phillips screwdriver, install the two screws that secure the
control panel assembly to the chassis. See Figure 3-20.
1 control panel
assembly 2 screws (2) 3 cables
4 mounting holes (2)
2 1
4
3
