Removing the System Board | 43
5 Turn the computer over.
6 Peel off the tape from the USB-board cable.
7 Lift the connector latch and, using the pull-tab, disconnect the USB-board cable
from the system board.
8 Disconnect the speaker cable from the system board.
9 Disconnect the hard-drive cable from the system board.
10 Disconnect the power-adapter port cable from the system board.
11 Disconnect the camera cable from the system board.

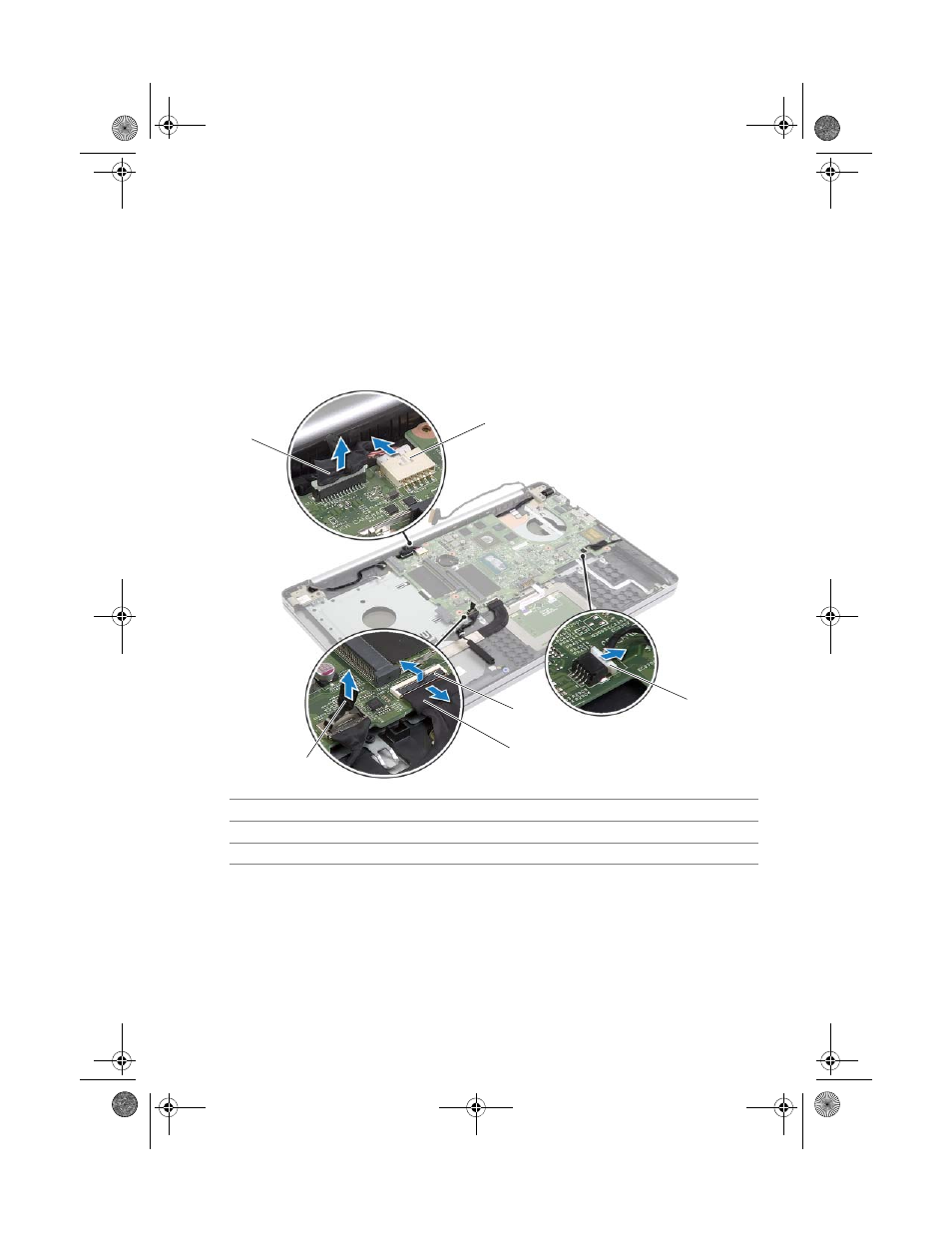

1 power-adapter port cable 2 speaker cable
3 latch 4 USB-board cable
5 hard-drive cable 6 camera cable
