Removing the USB Board | 37
Removing the USB Board
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before Working Inside
Your Computer" on page 7. After working inside your computer, follow the
instructions in "After Working Inside Your Computer" on page 9. For more
safety best practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the battery. See "Removing the Battery" on page 10.
2 Remove the optical-drive assembly. See "Removing the Optical Drive" on page 16.
3 Remove the hard-drive assembly. See "Removing the Hard Drive" on page 19.
4 Remove the keyboard. See "Removing the Keyboard" on page 22.
5 Remove the base cover. See "Removing the Base Cover" on page 27.
Procedure
1 Remove the screw that secures the USB board to the computer base.
2 Turn the USB board over and peel off the tape from the USB-board cable.
3 Lift the connector latch and disconnect the USB-board cable from the USB board.
4 Lift the USB board off the computer base.

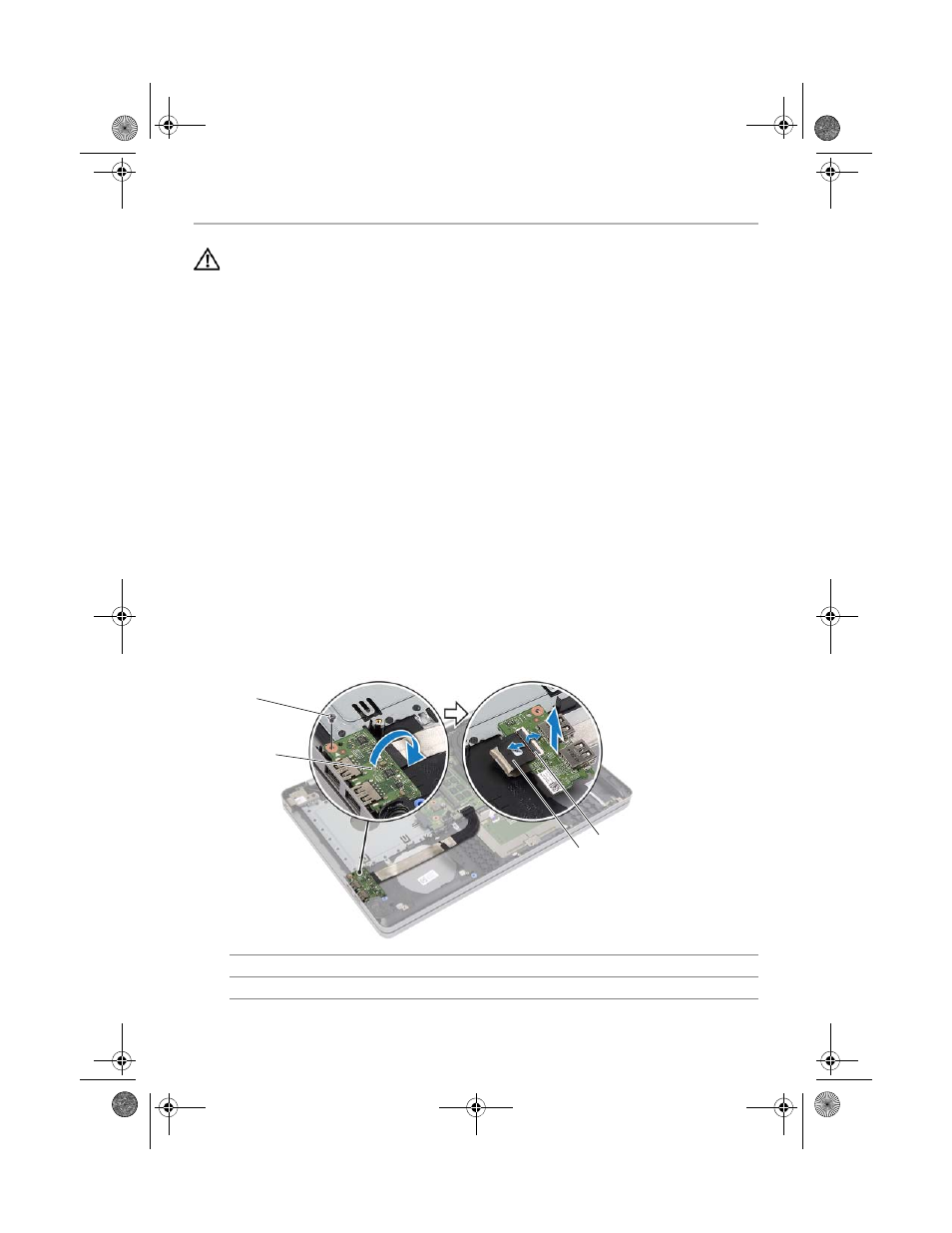

1 screw 2 USB board
3 USB-board cable 4 connector latch
4
3
1
2
