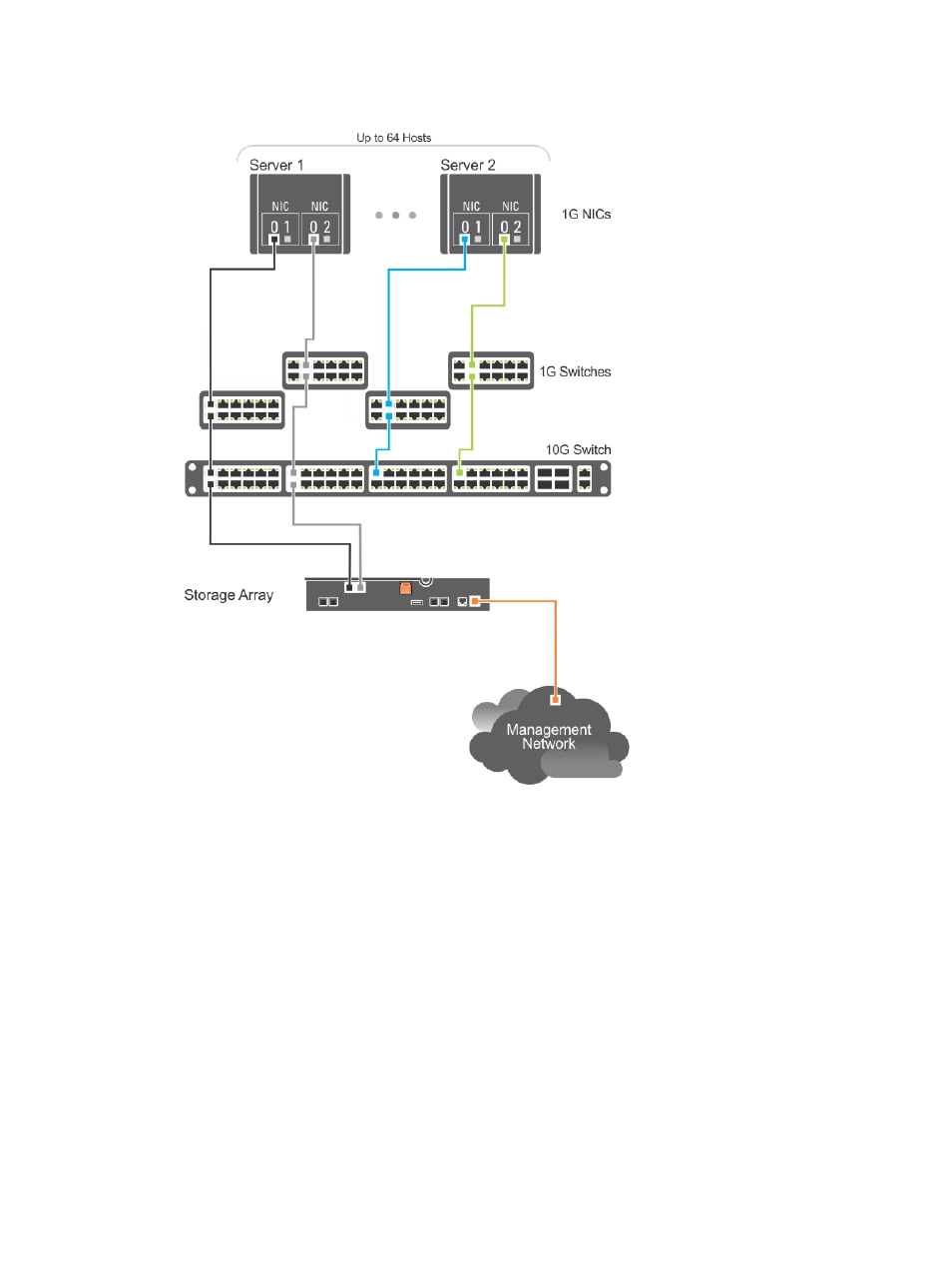

Figure 7. 64 Servers Connected to a Single RAID Controller

The following figure shows how the same number of hosts can be similarly attached to a dual RAID
controller module configuration. Hardware redundancy is achieved in this configuration, in case of any
switch failure.
