Replace the front i/o panel, Replacing the i/o panel, Small mini-tower computer – Dell OptiPlex GX50 User Manual

Page 29

Small Mini-Tower Computer

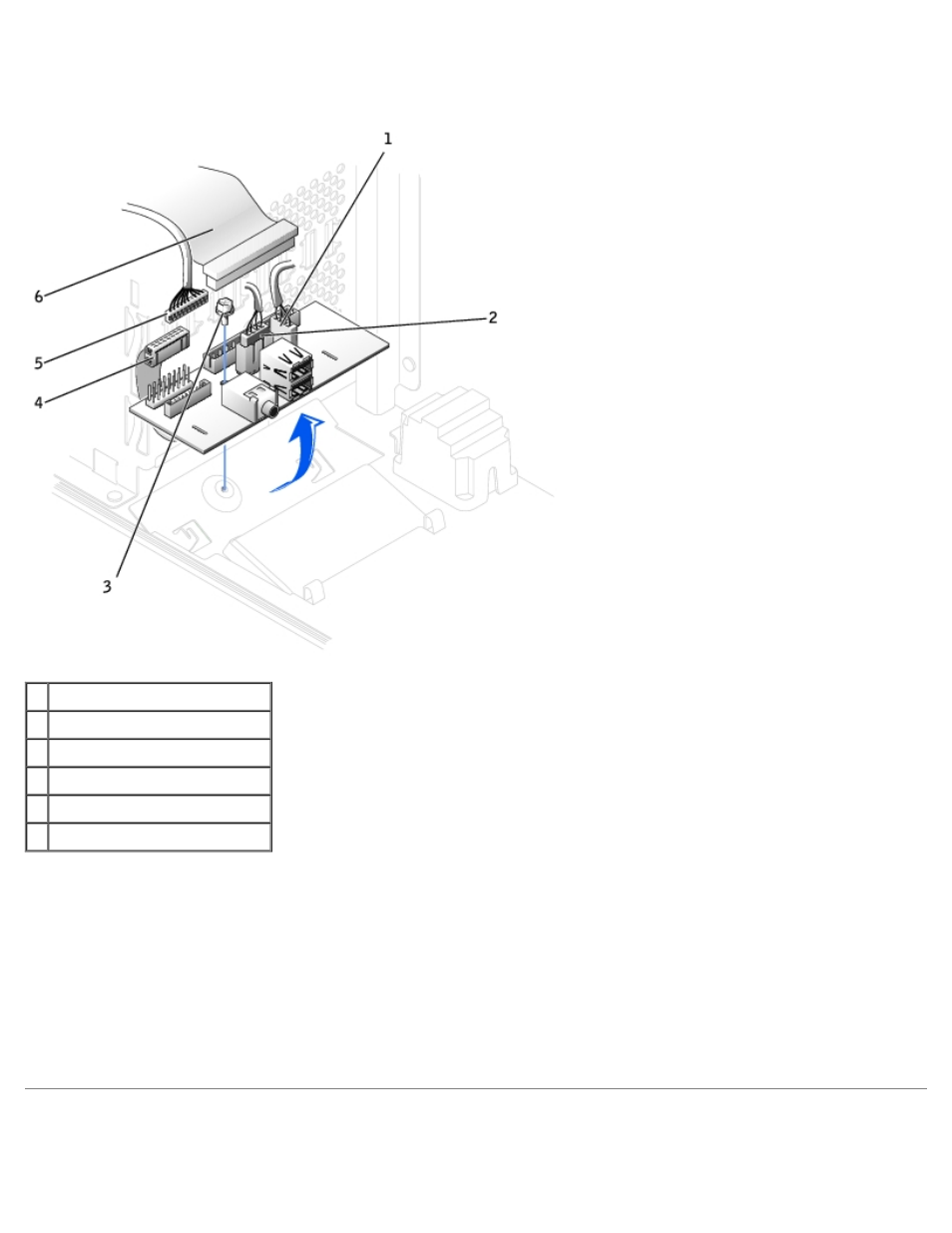

I/O Panel Removal—Small Mini-Tower Computer

1 Internal speaker cable

2 Chassis intrusion switch cable

3 Mounting screw

4 Control-panel cable

5 Front audio cable

6 I/O cable

1. Disconnect the control-panel cable from the control-panel connector on the I/O panel. Disconnect the I/O cable from

the I/O panel.

Note the routing of the control-panel cable as you remove it from the computer so that you can replace it correctly.

2. Remove all cables that are connected to the I/O panel, such as the chassis intrusion switch and internal speaker cables.

3. From inside the chassis cover, remove the mounting screw that secures the I/O panel to the chassis.

4. Remove the I/O panel from the chassis.

Replacing the I/O Panel
