Monitor Specifications
The following sections give you information about the various power management modes and pin assignments for various connectors for your monitor.
Power Management Modes
If you have VESA's DPMS compliance display card or software installed in your PC, the monitor automatically reduces its power consumption when not in use.
This is referred to as Power Save Mode*. If input from keyboard, mouse or other input devices is detected by the computer, the monitor will automatically
"wake up". The following table shows the power consumption and signaling of this automatic power-saving feature:
Activate the computer and wake up the monitor to gain access to the OSD .

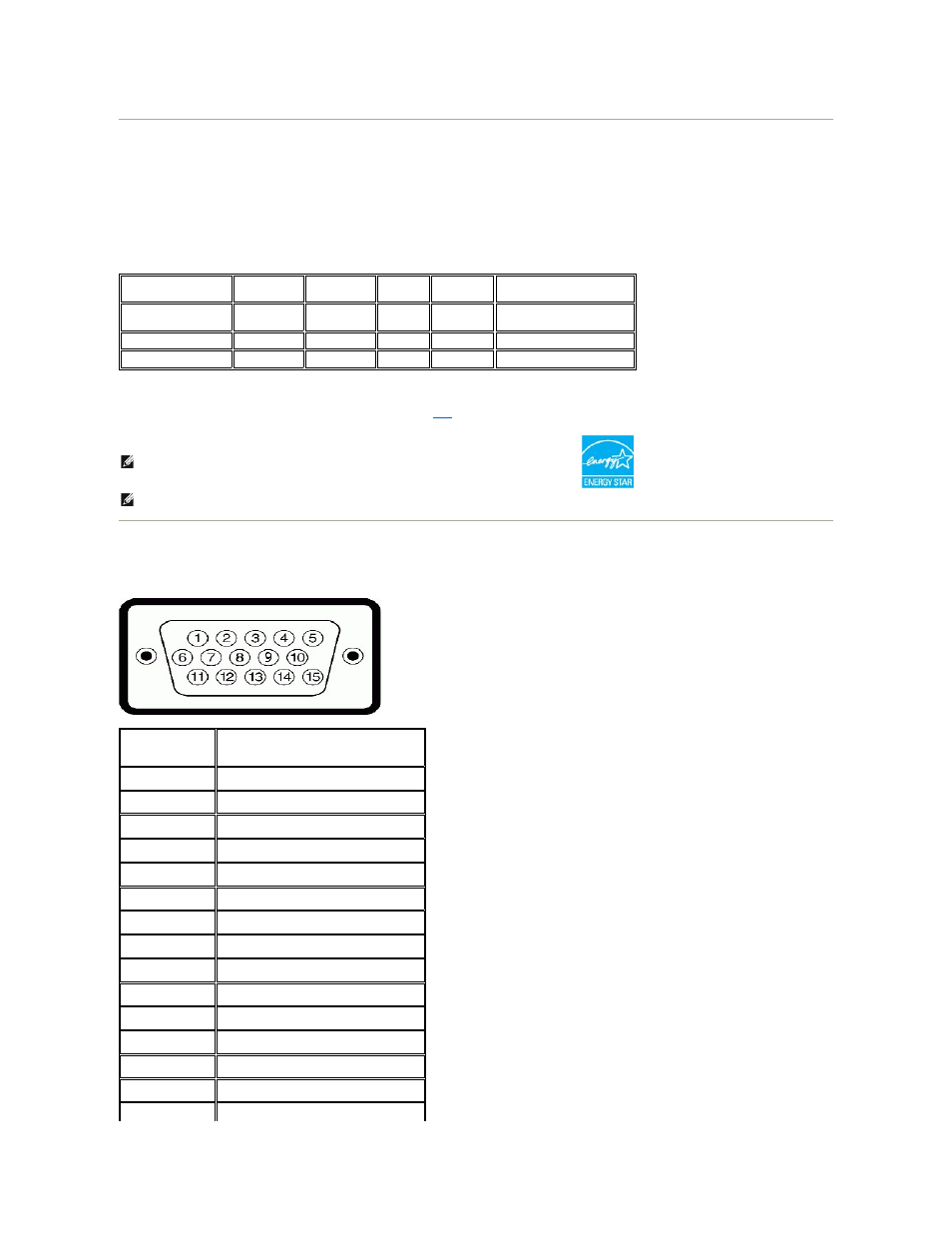

Pin Assignments
VGA Connector
VESA Modes Horizontal
Sync
Vertical Sync Video Power
Indicator
Power Consumption
Normal operation Active Active Active Green 110 W (maximum)*
57 W (normal)**
Active-off mode Inactive Inactive Blanked Amber Less than 2 W
Switch off - - - Off Less than 1 W
* With Audio and USB
** Without Audio and USB
NOTE: This monitor is ENERGY STAR®-compliant as well as TCO '99/TCO '03 power management
compatible.
NOTE: Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the
monitor.
Pin
Number 15-pin Side of the
Connected Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 Computer 5V/3.3V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
