Right side view, Back view – Dell Latitude D820 User Manual
Page 6

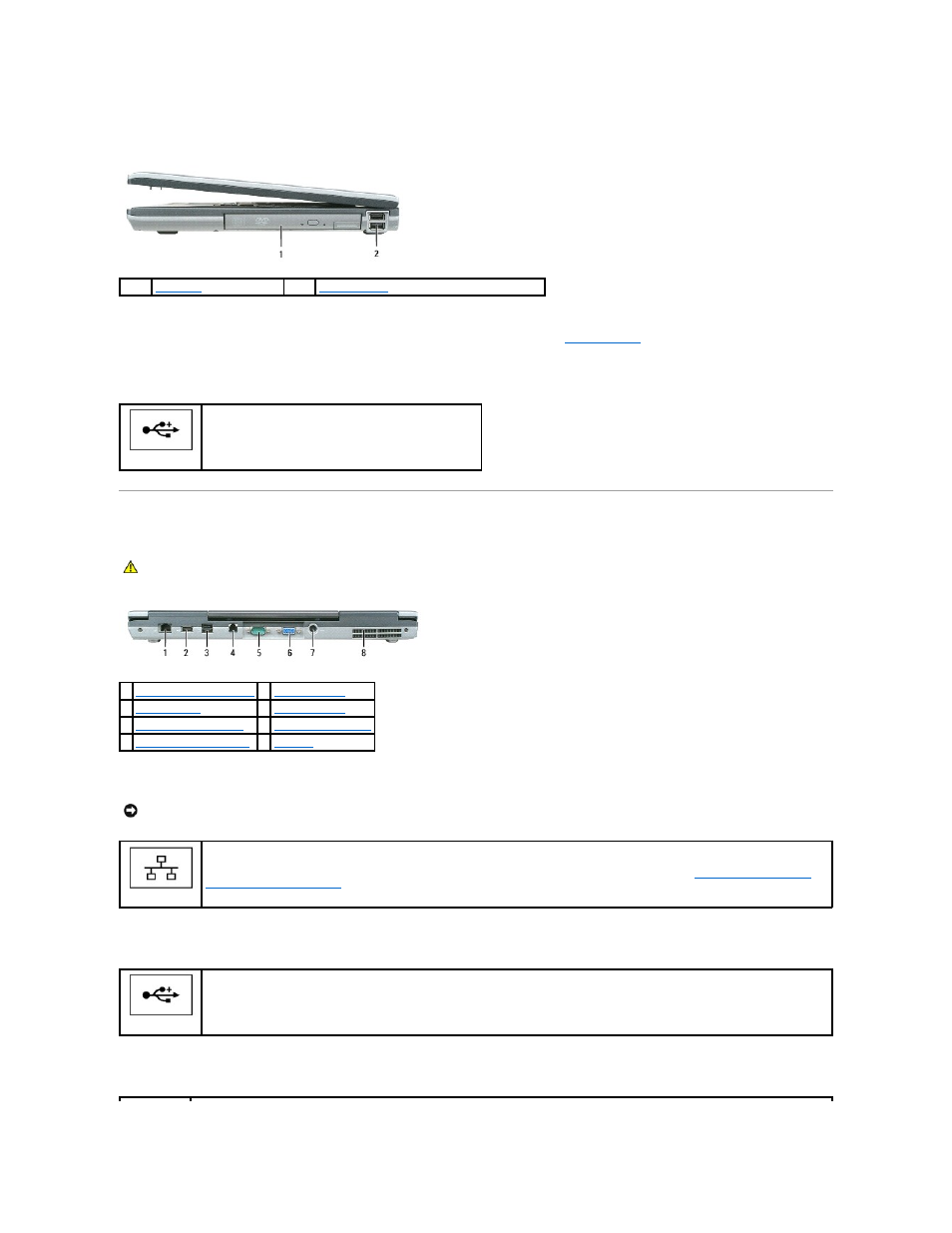

Right Side View
media bay —
Supports a floppy drive, optical drives, or a second battery or second hard drive (see
Using Multimedia
).
USB connectors
Back View
network connector (RJ-45)
USB connector
powered USB 2.0 connector
1
2
(2)
Connect USB devices, such as a mouse, keyboard, or printer.
CAUTION:
Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,
such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.
1
2
6
3
7
4
8
NOTICE:
The network connector is slightly larger than the modem connector. To avoid damaging the computer, do not plug a telephone line into the
network connector.
Connects the computer to a network. The two lights next to the connector indicate status and activity for wired network connections.
For information on using the network adapter, see the device user's guide supplied with your computer (see
Physically Connecting to a
Network or Broadband Modem
).
Connect USB devices, such as a mouse, keyboard, or printer. You can also connect the optional floppy drive directly to a USB connector
using the optional floppy drive cable.
