Page 24: Removing the display assembly
Display
Dell™ 500 Service Manual
Display Assembly
Removing the Display Assembly
CAUTION:
Before you begin the following procedure, follow the safety instructions in the Product
Information Guide.
1. Follow the instructions in
2. Loosen the eight captive screws on the bottom cover and remove it.

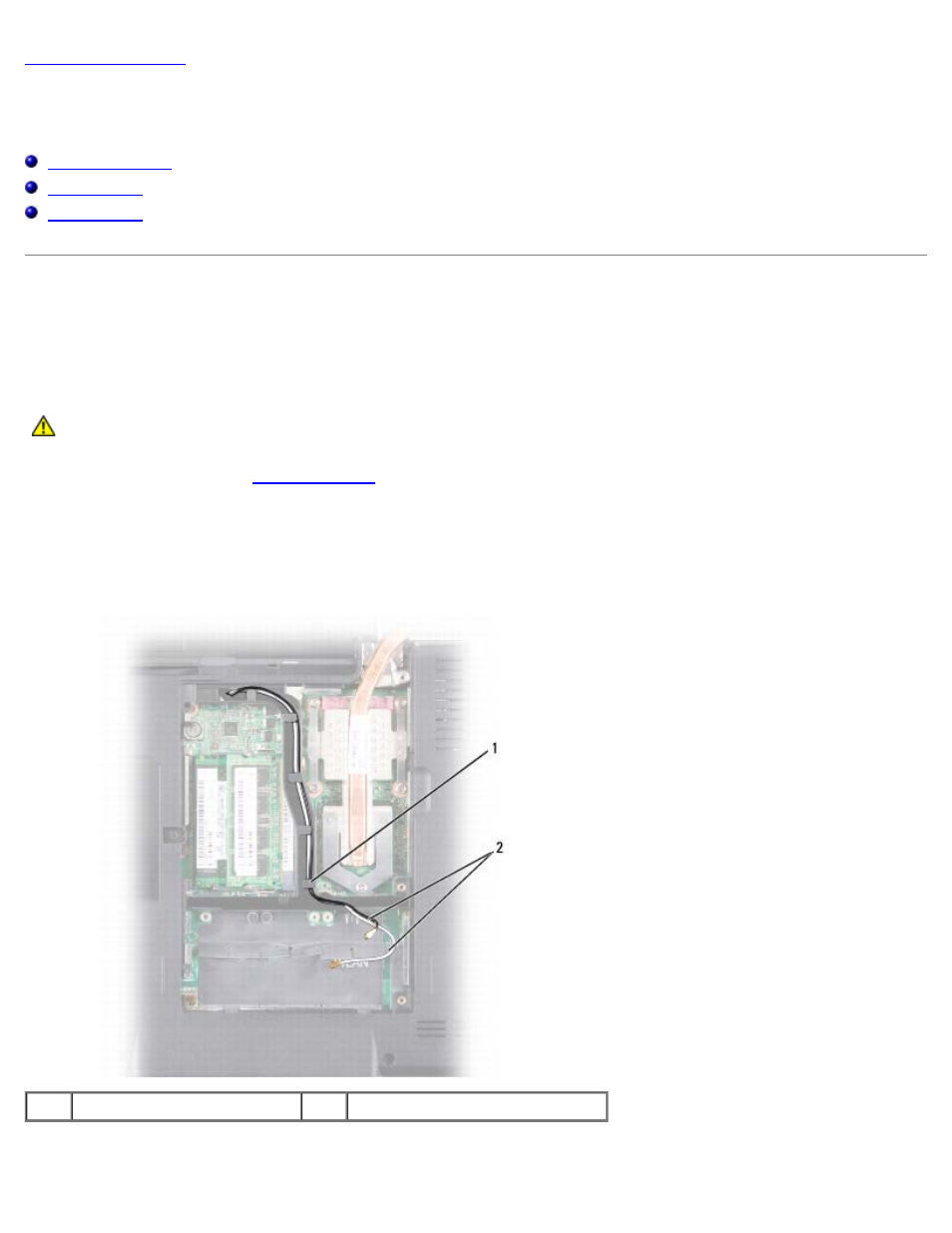

3. Disconnect the antenna cables from the Mini-Card.
4. Lift the antenna cables from the securing tabs and release them from the routing channel.
1
securing tabs
2
antenna cables
5. Remove the two screws securing the display assembly from the bottom of the computer.
