System Components
Dell Precision™ M20 Service Manual
Back to Contents Page
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not
covered by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be replaced by performing the removal procedure in
reverse order.

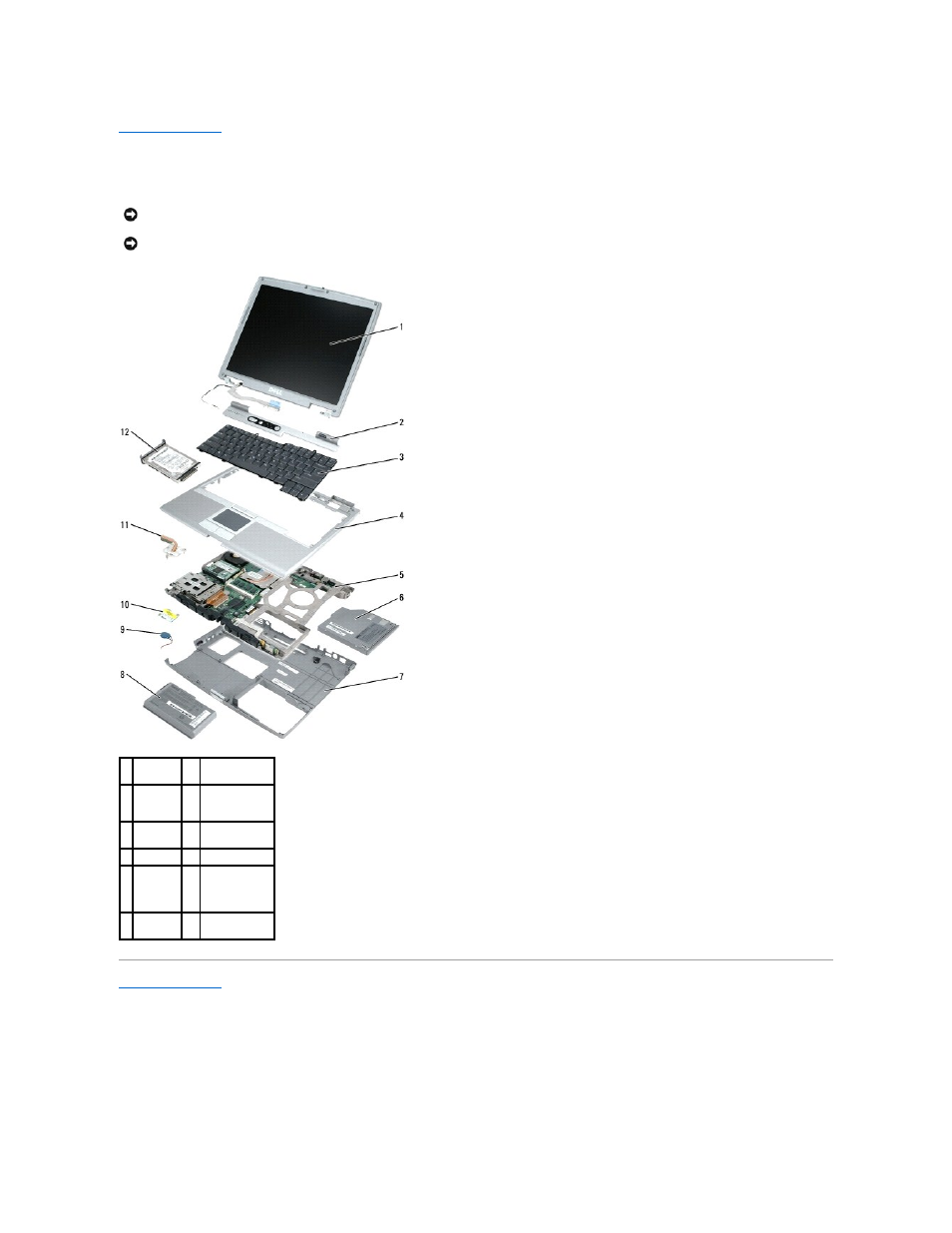

1 display
assembly
7 computer base
2 center
control
cover
8 primary
battery
3 keyboard 9 coin-cell
battery
4 palm rest 10 modem
5 system
board
assembly
11 microprocessor
thermal-
cooling
assembly
6 optical
drive
12 hard drive
