Base Latch

Dell Precision™ M20 Service Manual



Removing the Base Latch



Installing the Base Latch



Removing the Base Latch



1.

Follow the instructions in "

Preparing to Work Inside the Computer

."




2.

Remove the

center control cover

.




3.

Remove the

keyboard

.




4.

Remove the

display assembly

.




5.

Remove the

palm rest

.




6.

Remove the

speaker assembly

.




7.

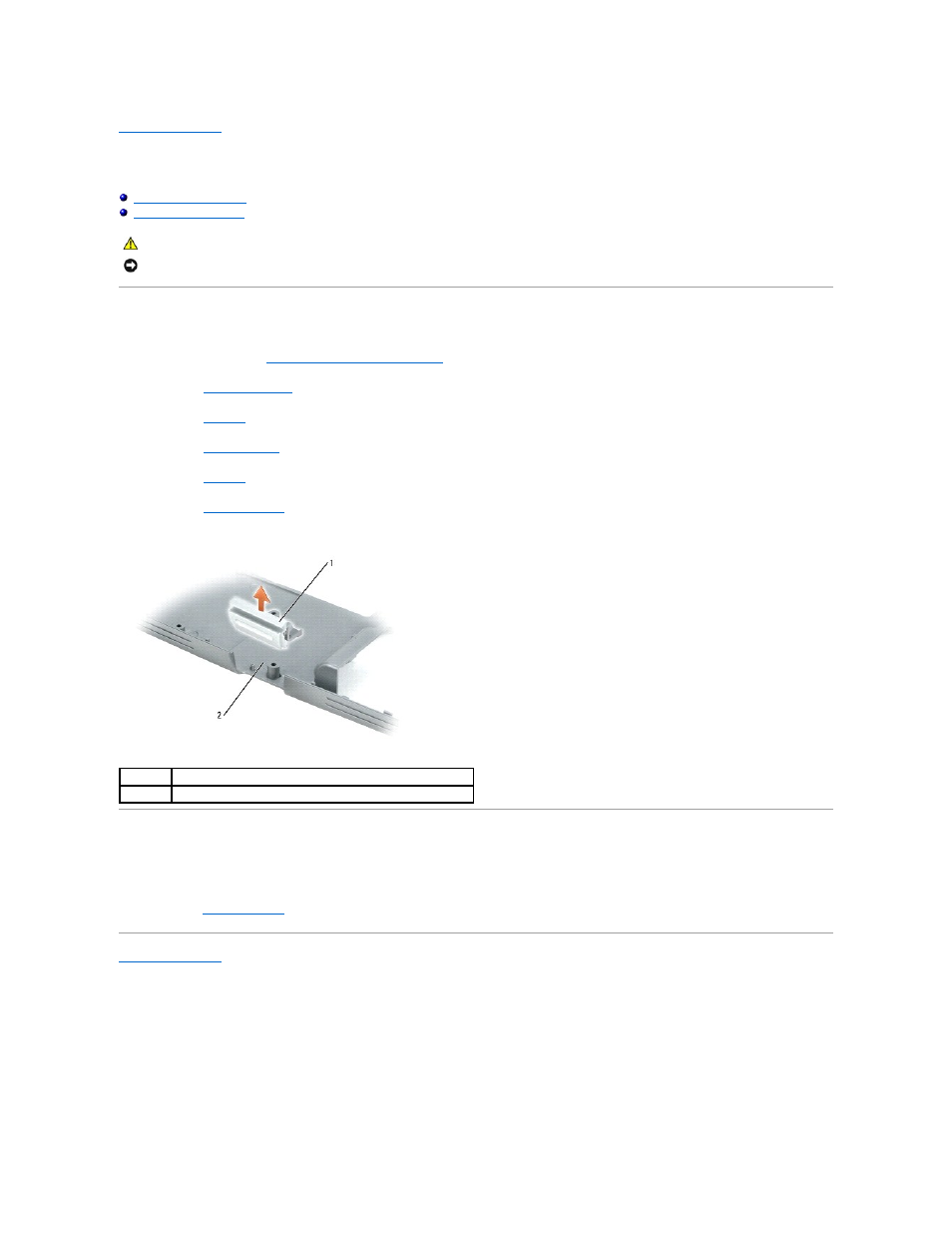

Pull the base latch straight up and out of the computer base (no screws secure it in place).



Installing the Base Latch



1.

Slide the latch over the notch located in the center of the computer base.



2.

Replace the

speaker assembly

to secure the latch in place.

Back to Contents Page



CAUTION:

Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

NOTICE:

To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

1

base latch

2

computer base
