Advanced Troubleshooting
Dell™ Dimension™ 4600 Series Service Manual
Diagnostic Lights
Beep Codes
System Messages

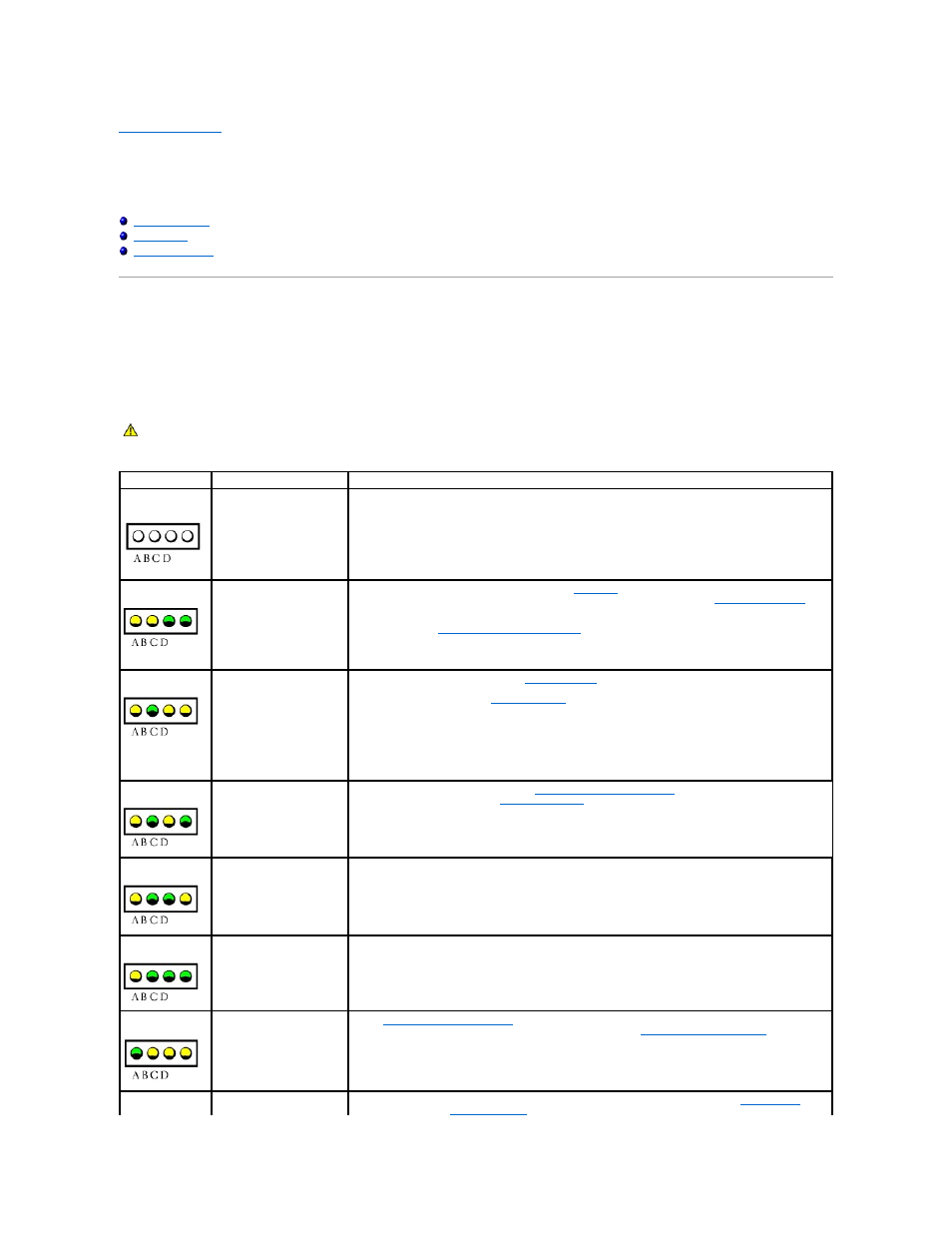

Diagnostic Lights
To help you troubleshoot a problem, your computer is equipped with four lights on the back panel labeled "A," "B," "C," and "D." These lights can be yellow or
green. When the computer starts normally, the lights flash. After the computer starts, the lights remain green. If the computer malfunctions, the color and
sequence of the lights identify the problem.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your Owner's Manual or Product Information
Guide.
Light Pattern Problem Description Suggested Resolution
The computer is in a normal
off condition or a possible
pre-BIOS failure has
occurred.
Verify that the computer is plugged into a working electrical outlet and that you have pressed the power
button.
Memory modules are
detected, but a memory
failure has occurred.
l If you have one memory module installed, reinstall it and restart the computer.
l If you have two or more memory modules installed, remove the modules, reinstall one module , and
then restart the computer. If the computer starts normally, reinstall an additional module. Continue
until you have identified a faulty module or reinstalled all modules without error.
l If available, install properly working memory of the same type into your computer.
l If the problem persists, see "Contacting Dell" in your Owner's Manual for instructions on obtaining
technical assistance.
A possible expansion card
failure has occurred.
1. Determine if a conflict exists by removing a card (not the video card) and then restarting the
computer.
2. If the problem persists, reinstall the card that you removed, remove a different card, and then
restart the computer.
3. Repeat this process for each card. If the computer starts normally, troubleshoot the last card
removed from the computer for resource conflicts (see "Resolving Software and Hardware
Incompatibilities" in your Owner's Manual).
4. If the problem persists, see "Contacting Dell" in your Owner's Manual for instructions on obtaining
technical assistance.
A possible video card failure
has occurred.
l If the computer has a video card, remove the card and reinstall it , and restart the computer.
l If the problem still exists, install a video card that you know works and restart the computer.
l If the problem persists or the computer has integrated video, see "Contacting Dell" in your Owner's
Manual for instructions on obtaining technical assistance.
A possible floppy or hard
drive failure has occurred.
Reseat all power and data cables and restart the computer.
A possible USB failure has
occurred.
Reinstall all USB devices, check cable connections, and then restart the computer.
No memory modules are
detected.
l Reinstall all memory modules and restart the computer.
l To eliminate the possibility of a faulty memory connector, remove all memory modules , reinstall one
memory module at a time (if the computer supports a single module), and then restart the
computer. If the computer starts normally, move the memory module to a different connector and
restart the computer. Continue until you have identified a faulty connector or reinstalled all modules
without error.
Memory modules are
detected, but a memory
l Ensure that there are no special memory module/memory connector placement requirements .
l Verify that the memory modules that you are installing are compatible with your computer.
