Back to Contents Page



Removing and Installing Parts

Dell™ Dimension™ 4600 Series Service Manual



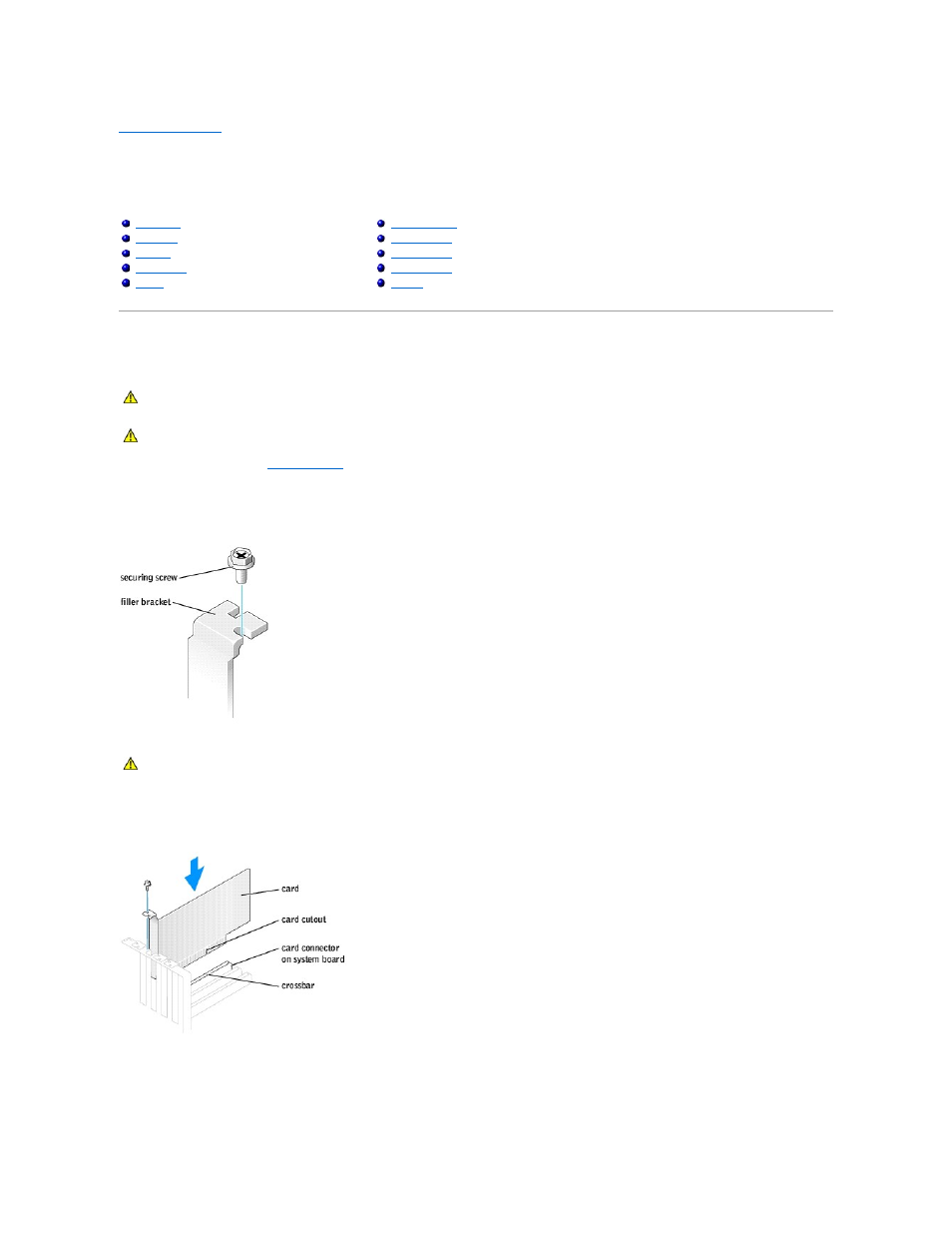

PCI Cards





1.



Follow the procedures in "

Before You Begin

."

2.



Lay the computer on its side so that the system board is on the bottom of the inside of the computer.

3.



Unscrew and remove the filler bracket for the card slot you want to use.





4.



Align the cutout on the bottom of the card with the crossbar in the system board connector. Gently rock the card into the connector until it is fully

seated.





Ensure that the card is fully seated and that its bracket is within the card slot.



PCI Cards



AGP Card



Memory



Front Panel



Drives



Microprocessor



Fan Assembly



System Board



Power Supply



Battery

CAUTION:

Before you begin any of the procedures in this section, follow the safety instructions in your Owner's Manual or Product Information

Guide.

CAUTION:

To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.

CAUTION:

Some network adapters automatically start the computer when they are connected to a network. To guard against electrical shock, be

sure to unplug your computer from its electrical outlet before installing any cards.
