A d d i n g Pa r t s 65

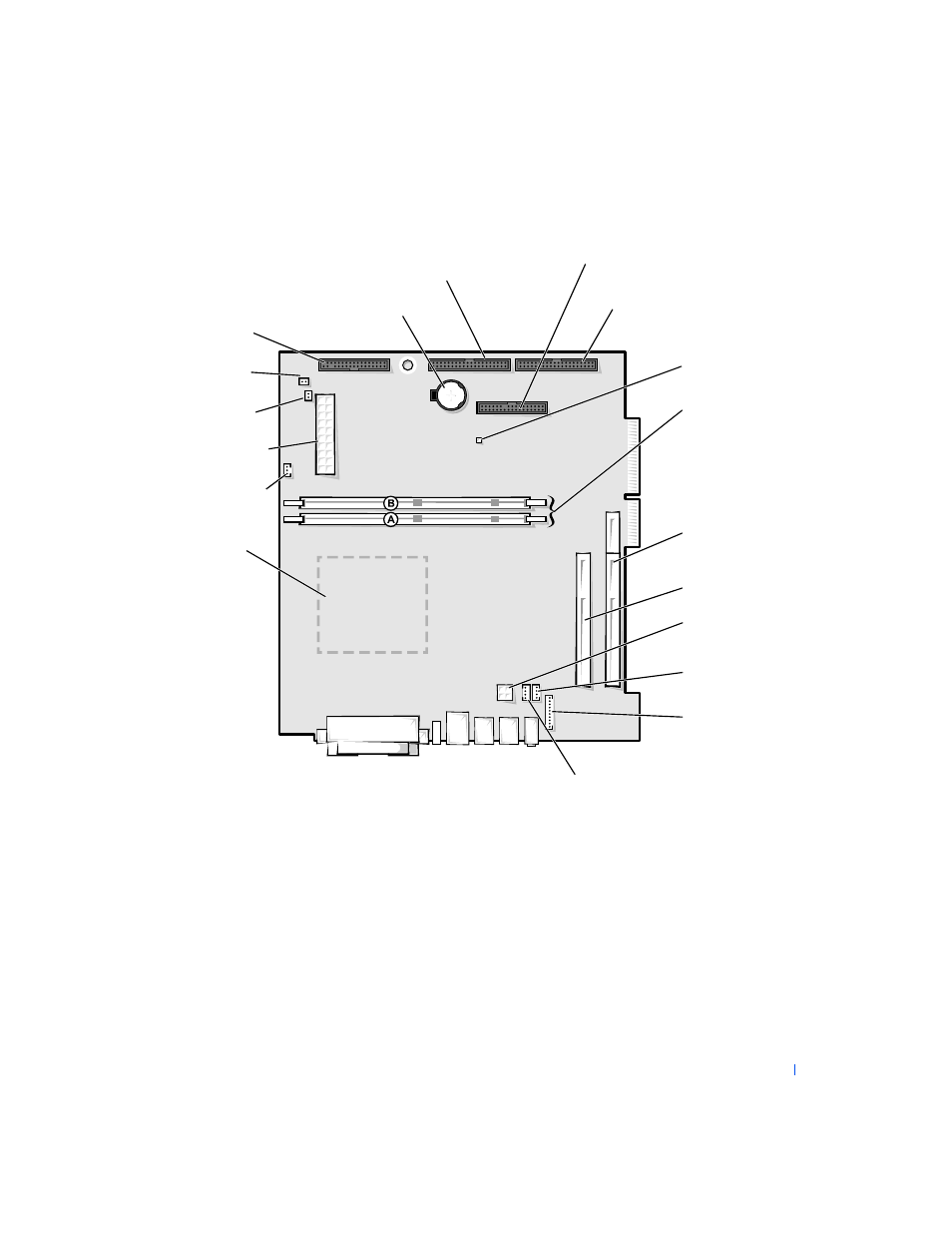

System Board
memory module
connectors
(DIMM A, DIMM B)
page 70
floppy drive
connector (DSKT)
hard drive
connector (IDE1)
battery socket
(BATTERY) page 81
CD drive connector
(IDE2)
main power
connector (POWER)
microprocessor
connector (CPU)
microprocessor
fan connector (FAN)
front panel switch connector
(FRONTPANEL)
*
On computers with integrated audio.
CD audio connector
(CD IN)
*
front panel audio
cable connector
(FRONTAUDIO)
telephony voice modem
connector (MODEM)
*
configuration jumper
(PSWD) page 80
back of computer
card-cage connector
(PCI2) page 66
power connector
(12VPOWER)
unused connector
standby power light
(AUX_PWR)
clear CMOS
jumper (RTCRST)
