Installing the iSCSI bridge
Page 14 Dell Model TL24iSCSIxSAS 1Gb iSCSI to SAS User’s Guide Rev.C

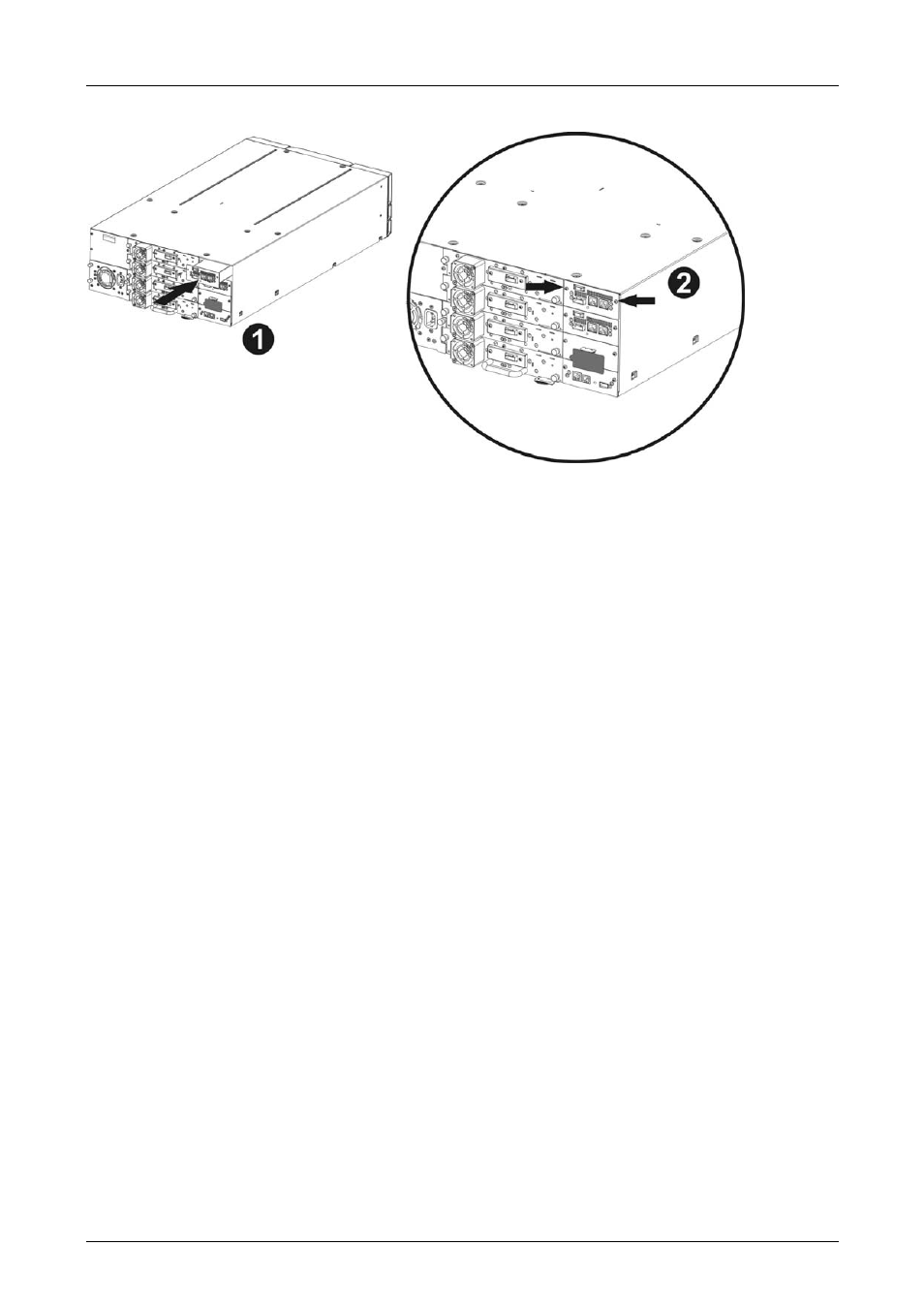

Figure 10 Installing the second bridge in the PowerVault TL4000
• Lock the bridge in place with two screws (see Figure 8 and Figure 10 step 2).
• Connect the Ethernet cables.
• Connect the SAS cables and peripherals.
• Connect the library power cord.
• Configure the bridge’s host name and IP-address.
The iSCSI bridge can be used on the following network configurations:
• 1000BaseT
(Gigabit)
It is not necessary to specify which network type you are connected to as the iSCSI bridge will automatically
select the correct network speed upon power up.
The connection to the Ethernet network is via an industry standard RJ45 copper interface on the rear plate of
the unit.
To connect the iSCSI bridge to the Ethernet network, insert the two Cat 5E cables into the connectors on the
unit as shown below. When the plugs are in the correct position a “click” should be heard.
