Installing the iSCSI bridge
Dell Model TL24iSCSIxSAS 1Gb iSCSI to SAS User’s Guide Rev.C Page 11

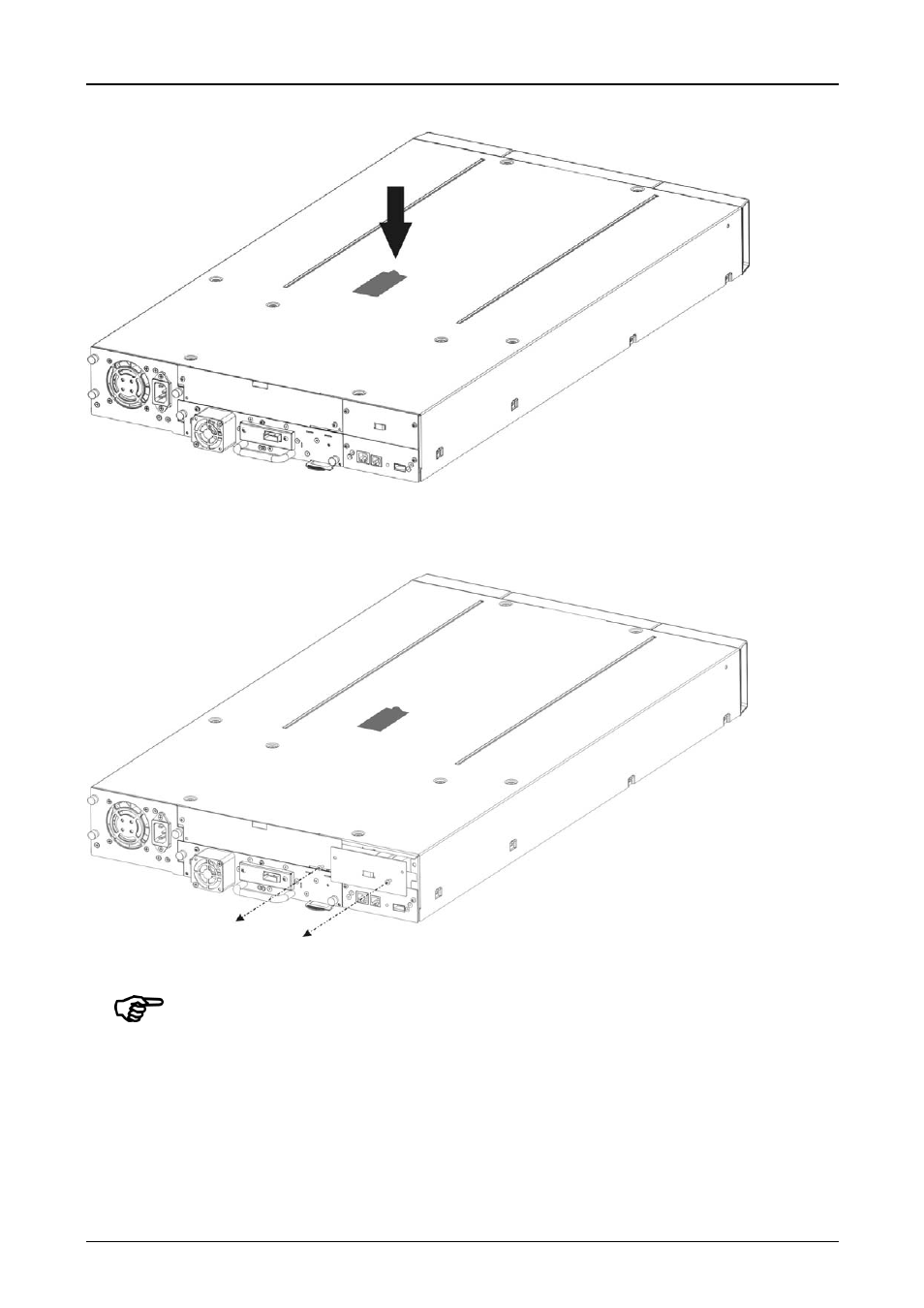

Figure 4 Store the label of the library
• Remove the blank plate (see Figure 5) on the rear of the library (you need a #3 Phillips screwdriver).
Figure 5 Remove the blank plate
Important: If your TL2000 library is without card guide rails for the bridge, please
install the card guide rails (reference the Getting Started Guide).
• Before open the shipping packaging, inspect the box for shipping damage. If you notice any damage,
report it to the shipping company.
• Unpack carefully the iSCSI board and install it into the library.
• It is advisable to retain all your original packaging material in the event you need to ship the bridge.
To prevent damage the bridge must be shipped in the original packaging material.
• Lock the bridge in place with two Thumb Screws (see Figure 6 steps 1, 2).
