360 DVS Series Direct Vent Fireplaces
10006326
ROH
ROD
ROW
CFM121
360DVS2 REAR VENT CONFIGURATION
8/10/00
Framing Dimensions - 360DVS2
CFM122
360DVS2 - TOP VENT CONFIGURATION
8/10/00
ROD
ROH
ROW
Rear Vent
Configuration
Top Vent
Configuration
CFM121
CFM122
Framing Dimensions
Ref. Rear Vent Configuration Top Vent Configuration
ROD 24” (610 mm) minus two times finishing material thickness to be even with face of unit.
ROH 38⁵⁄₈” (981 mm) Not to be framed until unit is set in place,
due to 3¹⁄₈” (79 mm) allowance for flue collar
ROW Not to be framed until unit is set in place 43³⁄₄” (1111 mm)
due to 3¹⁄₈” (79 mm) allowance for flue collar

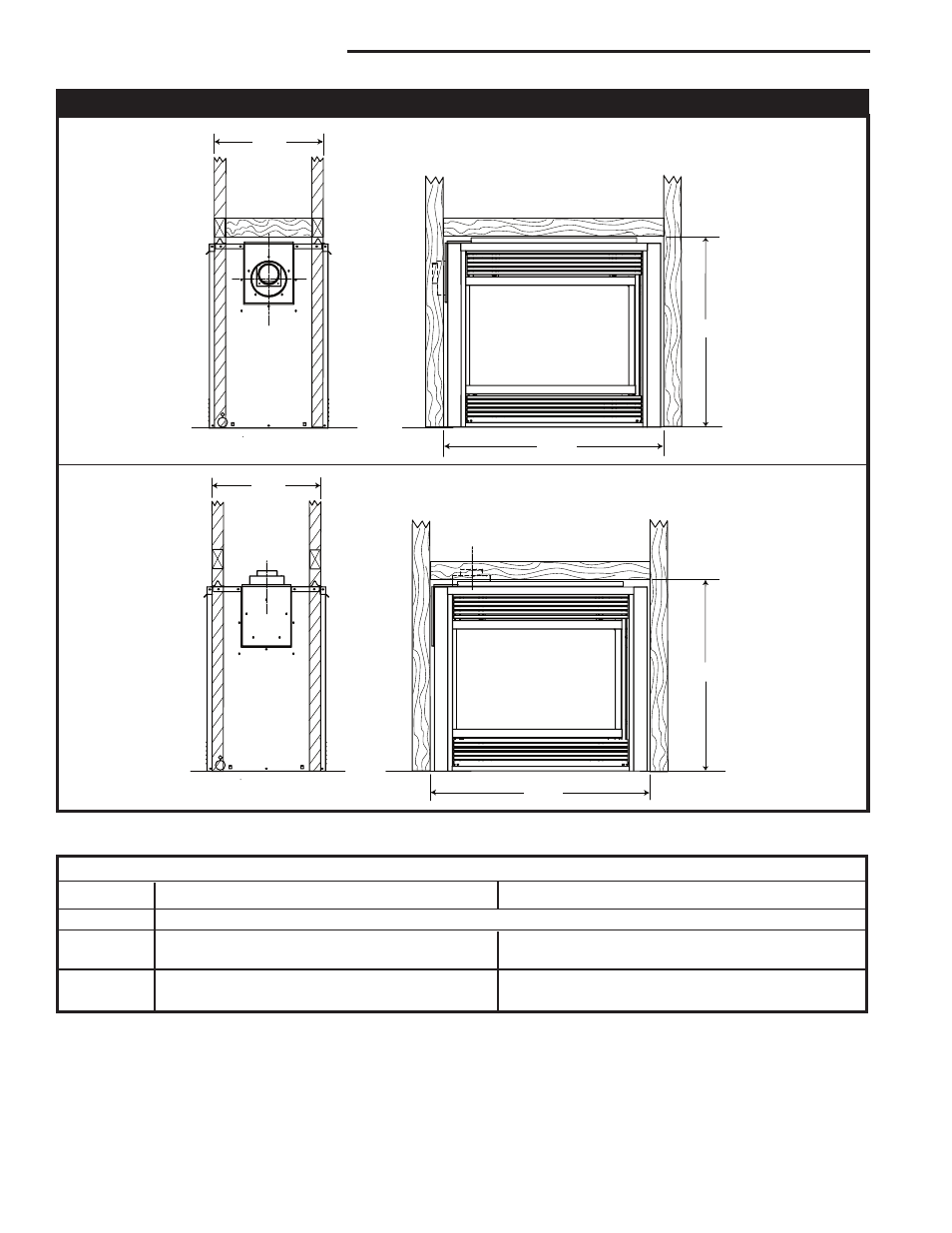

Fig. 3a Fireplace framing dimensions—360DVS2
