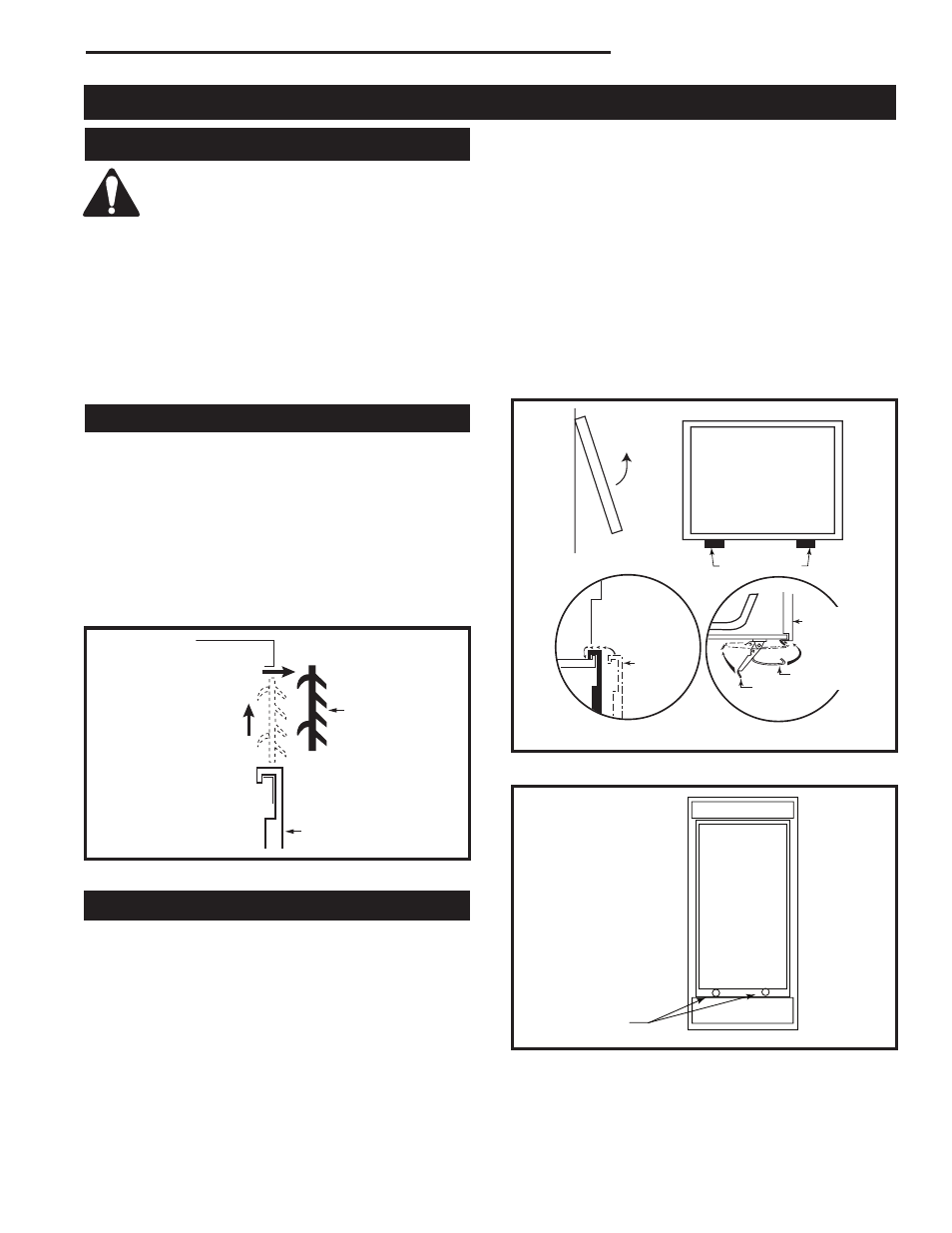

Vermont Casting 360DVS3 - Manual (Page 22)

23
360DVS Series Direct Vent Fireplaces
10006326
Operating Instructions
Only glass approved by CFM Corporation
should be used on this fireplace.
Glass Information
• The top side and top end louvres are removed by
simply lifting the louvre assembly and pulling the as-
sembly away from the fireplace. (Fig. 36)
• The lower side louvres are hinged along there lower
edge and are folded down for access to components
in the base cavity of the fireplace.
• The lower end louvre assembly on the 360DVS3/
SL/ SR units is removed in the same manner as the
top louvre assemblies.
Louvre Removal
1.
2.
FP1227
Louvre removal
11/02
Louvre
Glass Panel
FP1227
Fig. 36 Remove louvre assembly top.
Window Frame Assembly Removal
Side Window Frame Assemblies
1. Shut off the gas supply.
2. Allow the fireplace to cool if it has been in operation.
3. Remove the top louvre assembly.
4. Lower the bottom louvre assembly.
5. Release the two clamps along lower edge of the
frame by pulling down on clamp handles. (Fig. 37)
6. Tilt lower edge of frame out slightly and lift window
frame assembly up and away from the fireplace.
7. To reinstall the window frame assembly reverse
this procedure.
Front Window Frame Assembly
1. Remove the top and bottom louvre assembly.
2. Remove the lower window trim (held in place with
magnets).
3. Remove both lower retaining screws. Access to
these screws is gained through the holes along the
lower edge of the frame behind the trim. (Fig. 38)
4. Tilt lower edge of frame out slightly and lift window
frame assembly up and away from the fireplace.
5. To reinstall the window frame assembly reverse
the process.
FP1228
remove glass frame
11/02
Window
Frame
Assembly
Lower Clamps
Window
Frame
Assembly
Pull Clamp
Hook Push
Clamp
Han-
FP1228
Fig. 37 Window frame assembly removal.
Remove_end_glass&frame
360DVS
rev. -9-17-02 rjs
Location of Lower
Retaining Screws
FP1445
Fig. 38 Retaining screw.
• The use of any non-approved replacement glass will
void all product warranties.
• Care must be taken to avoid breakage of the glass.
• Do not operate appliance with glass front
removed, cracked or broken.
• Replacement glass (complete with gasket) is
available through your Majestic Fireplaces
dealer and should only be installed by a licensed
qualified service person.
