Vermont Casting 360DVS3 - Manual (Page 3)

4
360 DVS Series Direct Vent Fireplaces
10006326
J J
K
K
H
D A
E
B
I
E
A
F
C
H
6326
360DVS2
top vent
specs
Electrical
Access
Gas Line
Access
Electrical
Access
Gas Line
Access
K
J
J
K
J
J
G
J J
K
K
H
D A
E
B
E
A
F
C K
H
6326
360DVS2
rear vent
specs
G
I
Electrical
Access
Gas Line
Access
Electrical
Access
Gas Line
Access
J
J
K
J
J

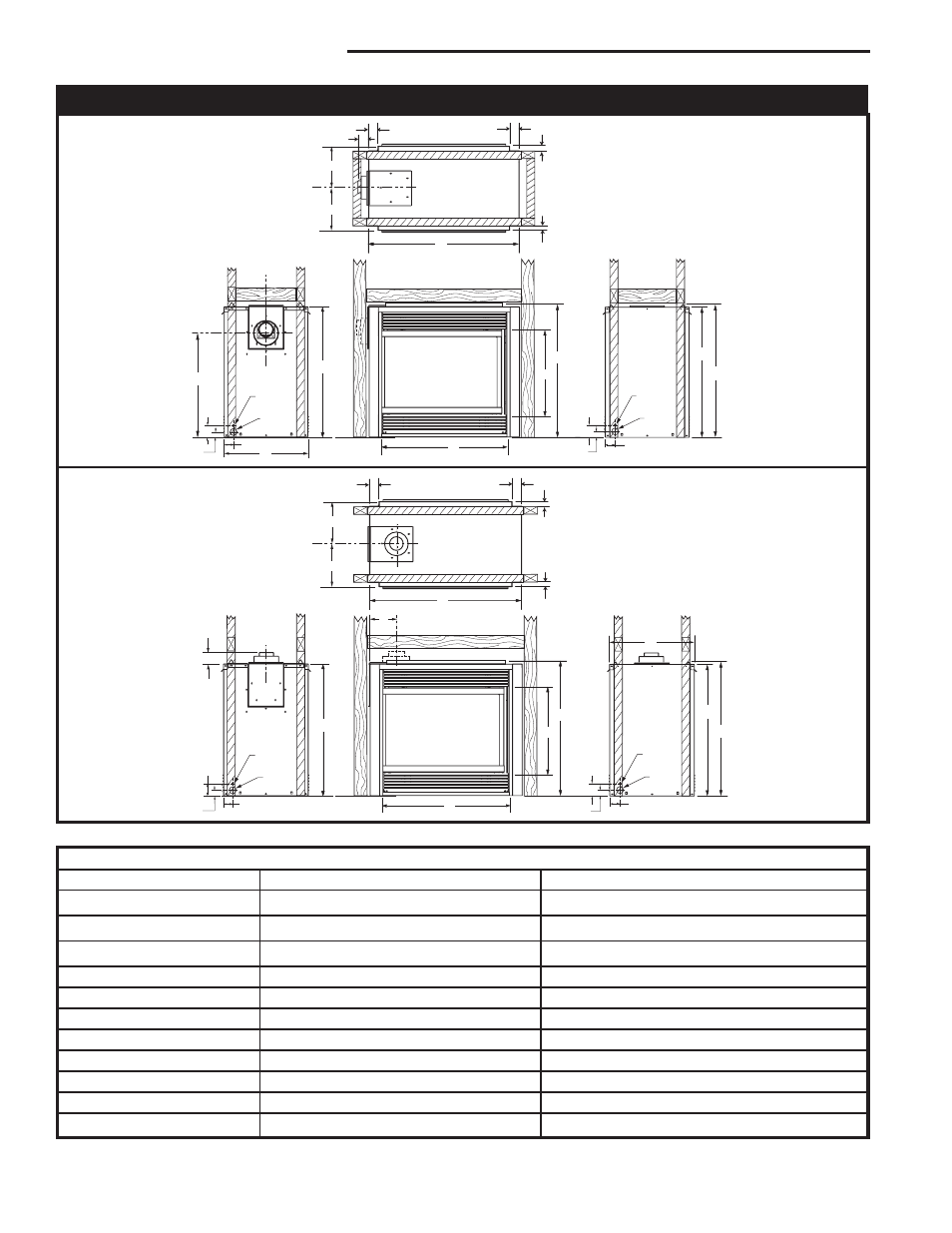

Fireplace Dimensions - 360DVS2
Rear Vent Configuration
Top Vent Configuration
Fig. 2a Fireplace specifications—360DVS2
Ref. Rear Vent Configuration Top Vent Configuration
A 38¹⁄₈” (968 mm) 38¹⁄₈” (968 mm)
B 43¹⁄₄” (1099 mm) 43¹⁄₄” (1099 mm)
C 24” (610 mm) 24” (610 mm)
D 24” (610 mm) 24” (610 mm)
E 37³⁄₈” (949 mm) 37³⁄₈” (949 mm)
F 35⁷⁄₈” (911 mm) 35⁷⁄₈” (911 mm)
G 30¹⁄₂” (775 mm) 7” (178 mm)
H 12” (305 mm) 12” (305 mm)
I 3¹⁄₈” (80 mm) 3¹⁄₈” (80 mm)
J 2³⁄₄” (70 mm) 2³⁄₄” (70 mm)
K 1¹⁄₄” (33 mm) 1¹⁄₄” (33 mm)
Appliance Dimensions
