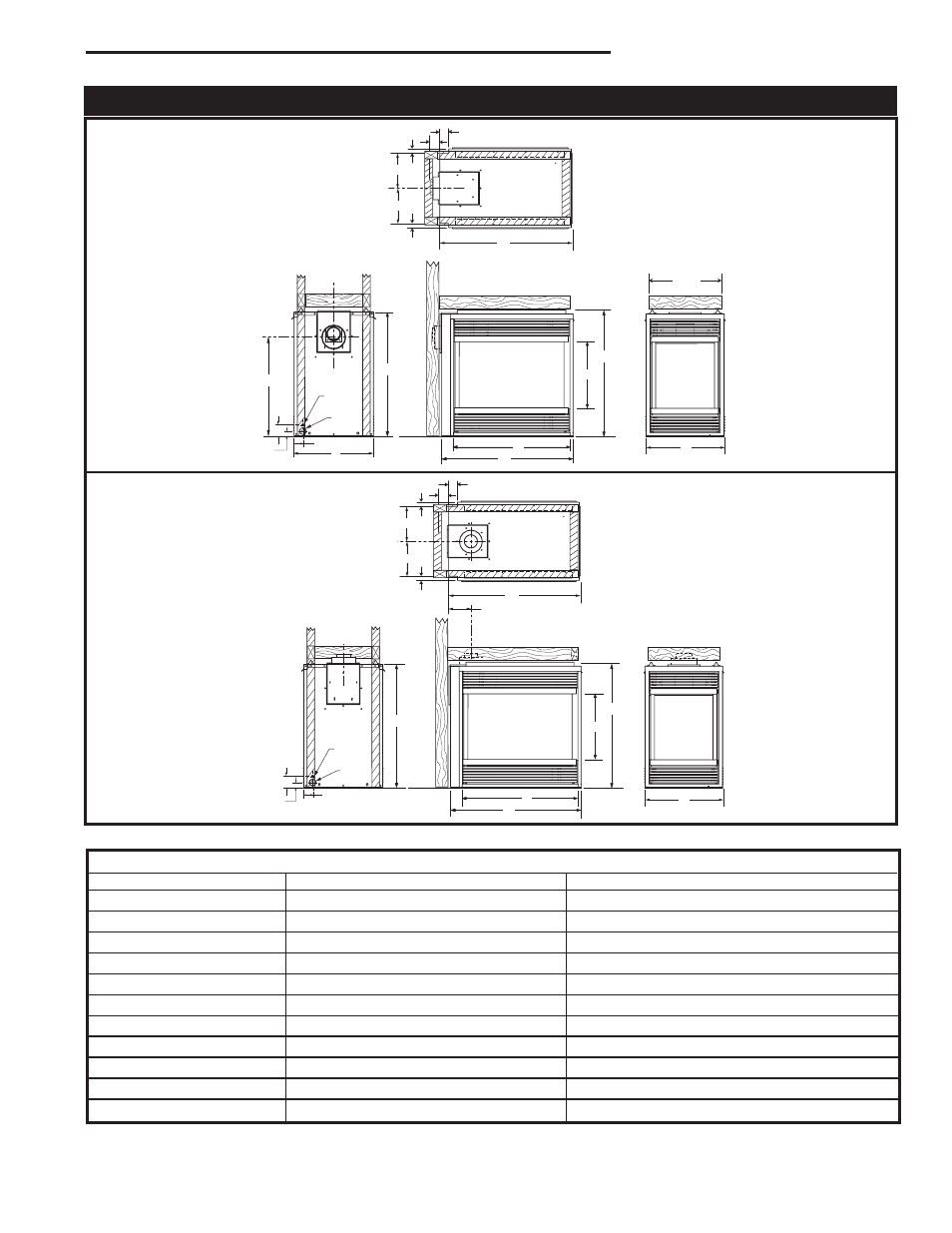

Fireplace Dimensions - 360DVS3 / 306DVSL / 360DVSR
Rear Vent Configuration
Top Vent Configuration
Ref. Rear Vent Configuration Top Vent Configuration
A 38¹⁄₈” (968 mm) 38¹⁄₈” (968 mm)
B 40⁵⁄₈” (1032 mm) 40⁵⁄₈” (1032 mm)
C 24” (610 mm) 24” (610 mm)
D 24” (610 mm) 24” (610 mm)
E 37³⁄₈” (949 mm) 37³⁄₈” (949 mm)
F 35⁷⁄₈” (911 mm) 35⁷⁄₈” (911 mm)
G 30¹⁄₂” (775 mm) 7” (178 mm)
H 12” (305 mm) 12” (305 mm)
I 3¹⁄₈” (80 mm) 3¹⁄₈” (80 mm)
J 2³⁄₄” (70 mm) 2³⁄₄” (70 mm)
K 1¹⁄₄” (33 mm) 1¹⁄₄” (33 mm)
Appliance Dimensions
Fig. 2b Fireplace specifications—360DVS3/ 360DDVSL/ 360DVSR
