SIMM Upgrades
EMM-E6 Installation Guide B-3
B.3 SIMM UPGRADES
The EMM-E6 allows memory upgrades for Shared DRAM, Local
DRAM, and FLASH EEPROM. This section explains how to locate and
add/replace a Single In-line Memory Module (SIMM) for any of these
memory types. For information on the available SIMM upgrades and
information on ordering them, contact your Cabletron Systems Sales
Representative.
B.3.1 Locating SIMMs
Each memory type has a specific SIMM slot location on the EMM-E6
motherboard. When installing SIMM boards, make sure that you place
them in their proper slots. Figure B-3 illustrates the EMM-E6 SIMM slot
locations and the direction (indicated by the white arrow) in which to
install the SIMMs.

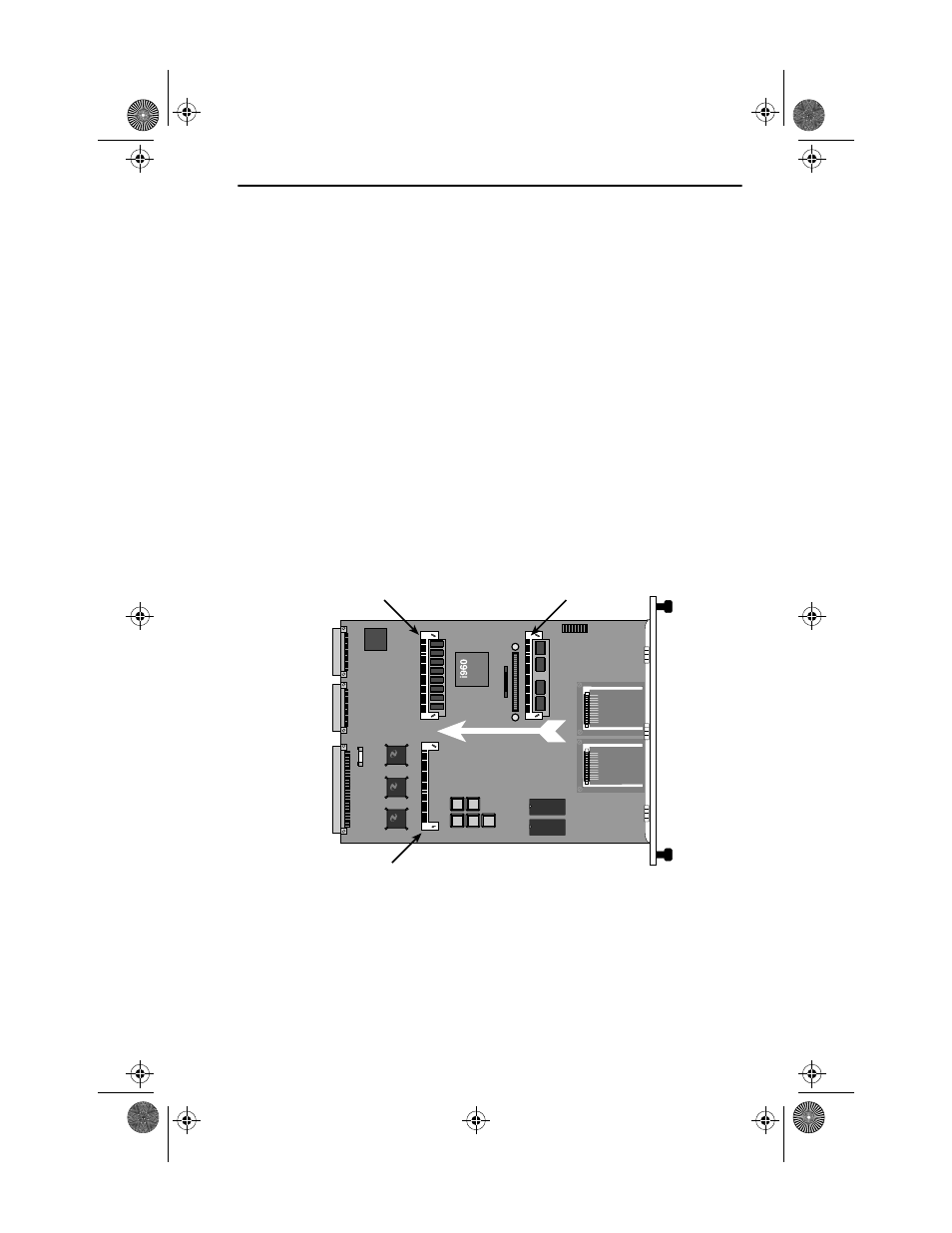

Figure B-3 SIMM Slot Locations
LSI
Logic
FLASH SIMM Slot LDRAM SIMM Slot
SDRAM SIMM Slot
These slots are shipped populated
Direction of
Insertion
1926n17
